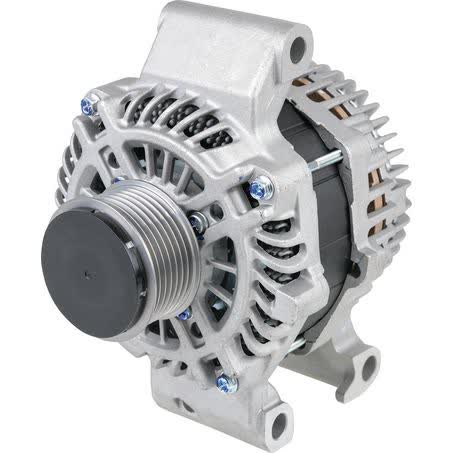

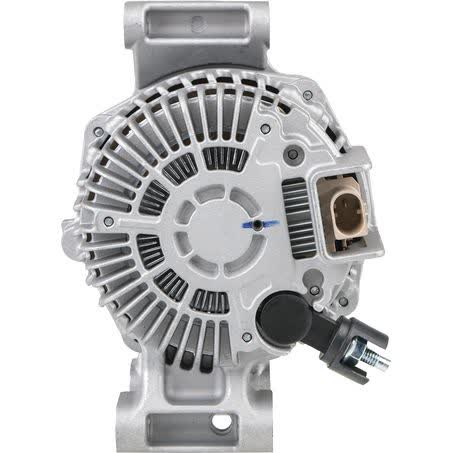

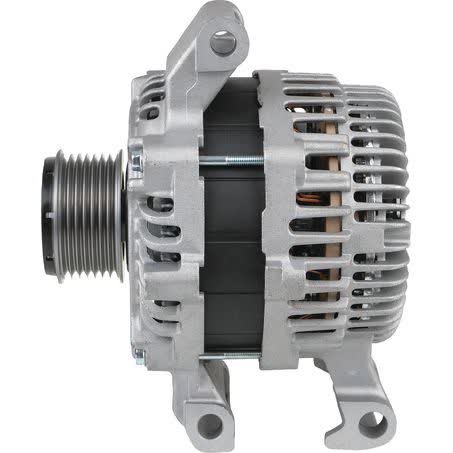

OEX Alternator 12V 150A Mitsubishi Style MXA2094

The OEX Alternator 12V 150A Mitsubishi Style, part number MXA2094, is a new alternator with a 12V electrical system and a 150 amp power rating. It uses a Mitsubishi-style unit layout, a pad mount, and an internal regulator, which are key points to check against the original unit before ordering.

This alternator is listed with a 7 groove pulley, 59mm pulley outside diameter, 10.5mm adjusting hole diameter, clockwise rotation, and insulated return: no. Those details matter when you are matching the replacement to the original alternator and belt drive arrangement.

OEX positions this range as an aftermarket option with quality and reliability in mind, and the factories are ISO9001 certified for engineering, testing, and quality control procedures. The unit is sold each and weighs 6.5kg, so it is a substantial rotating electrical component that should be matched carefully to the vehicle application.

Key Features

• 12V alternator with 150A output
• New unit, sold each
• Mitsubishi style design
• Internal regulator
• Pad mount alternator
• 7 groove pulley

Specifications

• Brand: OEX
• Part No.: MXA2094
• Product type: Alternator
• Voltage: 12V
• Power rating: 150A
• Unit of measure: Each
• Pulley outside diameter: 59mm
• Pulley section: 7 groove

Confirmed fitment information

• FORD RANGER
• FORD RANGER 2015
• FORD RANGER 2016
• FORD RANGER 2017
• FORD RANGER 2018
• FORD RANGER 2019
• FORD RANGER 2020
• FORD RANGER 2021

Application and Buying Notes

Before ordering, compare the part number MXA2094, the Mitsubishi style design, and the pad mount arrangement with the alternator already fitted to the vehicle. The key identifiers here are just as important as the electrical rating, because a 12V 150A alternator can still differ in mounting, pulley, regulator, or rotation.

The pulley details should be checked closely: this unit has a 7 groove pulley, 59mm pulley outside diameter, and clockwise rotation. If the belt system on the vehicle does not match those details, the alternator will not be a proper fit even if the unit looks similar at first glance.

The internal regulator is another point to confirm. Some charging systems are set up differently, so the replacement needs to match the vehicle’s control arrangement as well as the physical mounting points. The 10.5mm adjusting hole diameter is also worth checking against the original bracket setup.

The listed fitment information includes Ford Ranger applications across 2015 to 2022, but the safest way to buy is to verify the exact alternator on the vehicle against MXA2094 and the supplied specifications. Matching by model name alone is not enough when alternators vary by engine, bracket, pulley, and electrical configuration.

For commercial use, the warranty listed is 1 year, while passenger use is 3 years. That makes it important to confirm the intended application before purchase, along with the unit’s new condition, 6.5kg weight, and insulated return setting of no, all of which are relevant to correct selection and installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2094 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

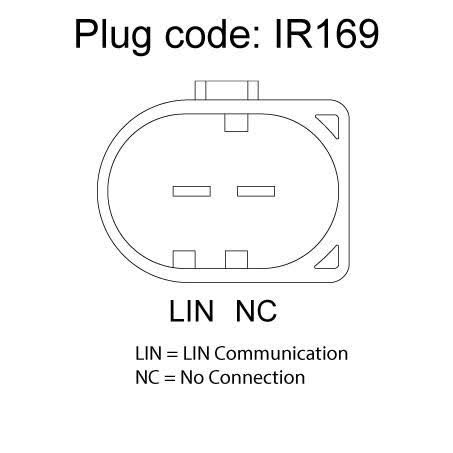

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Pin Code IR169, Pulley Outside Diameter 59mm, Regulator Type Internal, Suits Unit Make Mitsubishi, Alternator Mount Pad, Insulated Return No.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA2094, Brand OEX, Description OEX Alternator 12V 150A Mitsubishi Style, Adjusting Hole Diameter 10.5, Power Rating (Amp) 150, Pulley Section 7 Groove, Rotation CW, Voltage 12, New / Reman. New.

OEX Alternator 12V 150A Mitsubishi Style. Part number MXA2094 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2094, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number MXA2094, the Mitsubishi style form, pad mount, internal regulator, 12V 150A rating, 7 groove pulley, 59mm pulley outside diameter, 10.5mm adjusting hole diameter, and clockwise rotation against the original unit and vehicle application before purchase.

FAQ

What is the part number for this alternator?

The part number is MXA2094. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.

What are the main electrical specifications?

It is a 12V alternator with a 150A power rating. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured alternator?

It is listed as new. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.

What pulley and rotation details are listed?

It has a 7 groove pulley, 59mm pulley outside diameter, and clockwise rotation. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It uses an internal regulator. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXA2094 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include FORD RANGER, FORD RANGER 2015, FORD RANGER 2016. These details should still be checked against the original unit before ordering.
