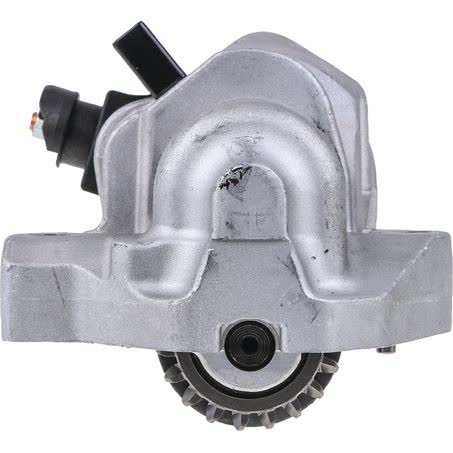

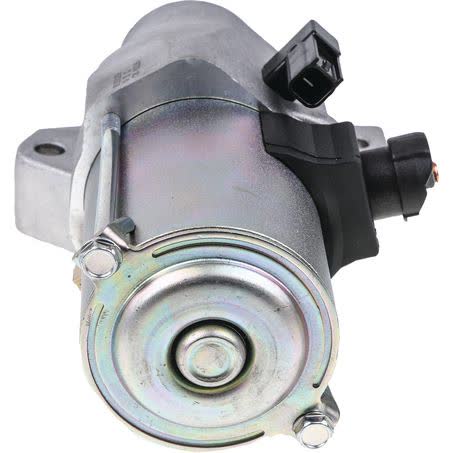

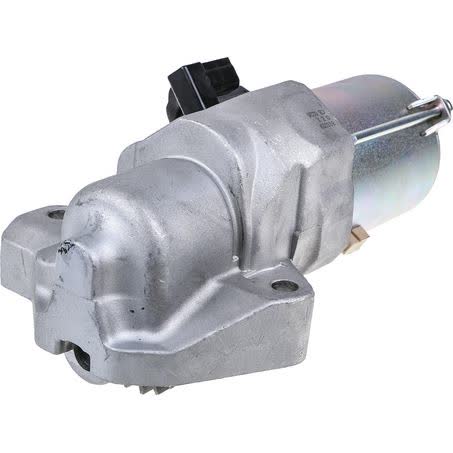

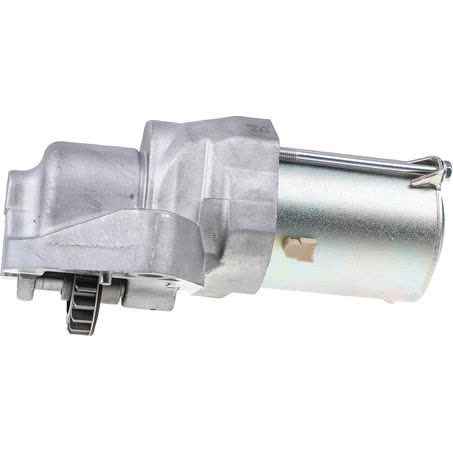

OEX Starter Motor 12V 19 Tooth CCW Mitsuba Style MXS824

The OEX MXS824 is a new 12V starter motor with 19 teeth, counter-clockwise rotation and a Mitsuba style fitment profile. It is listed as a pad mount starter with 108mm mount centres and an 11.5mm mount hole diameter, so the mounting pattern should be checked carefully against the vehicle before purchase.

This unit is supplied under the OEX brand and carries part number MXS824. Key physical details include an overall length of 221mm, a 54.5mm pinion diameter and a 37mm pinion at rest, which are useful checkpoints when comparing against the removed starter or replacement catalogue references.

The warranty listed is 3 years for passenger applications and 1 year for commercial applications. The notes also advise checking battery condition and cables before fitting, because low voltage at the starter can cause the solenoid contacts to chatter and burn.

Fitment data supplied with this listing points to Honda Accord applications, including model years shown from 2013 through 2019. As with any starter motor, final confirmation should still be made against the part number, rotation, tooth count and mounting measurements before ordering.

Key Features

• 12V starter motor
• 19 tooth pinion
• Counter-clockwise rotation
• Mitsuba style application
• Pad mount type
• New unit

Specifications

• Voltage: 12V
• Number of teeth: 19
• Rotation: CCW
• Starter mount type: Pad
• Mount hole diameter: 11.5mm
• Mount centres A: 108mm
• Overall length: 221mm
• Pinion diameter: 54.5mm

Confirmed fitment references

• Honda Accord
• Honda Accord 2013
• Honda Accord 2014
• Honda Accord 2015
• Honda Accord 2016
• Honda Accord 2017
• Honda Accord 2018
• Honda Accord 2019

Application and Buying Notes

Before ordering, compare the removed starter against the listed measurements and identifiers: part number MXS824, 12V operation, 19 teeth, CCW rotation, 108mm mount centres, 11.5mm mount hole diameter and 221mm overall length. These details matter because starter motors that look similar can differ in tooth count, rotation direction, pinion size and mounting pattern.

The fitment references supplied point to Honda Accord applications across the years shown, but the safest match is always the exact part number and the same Mitsuba style configuration. If the vehicle has been repaired before, or if the original unit has been replaced, the best practice is to compare the old starter directly rather than relying on appearance alone.

Low voltage is a known installation concern for this unit. The note advises checking the battery condition and the cables before fitting the new starter, because poor supply voltage can make the solenoid contacts chatter and burn. A healthy electrical supply helps prevent a repeat failure caused by the vehicle rather than the starter itself.

This is a new starter motor sold each, and the warranty is stated separately for passenger and commercial use. Make sure the intended application aligns with the listed warranty terms, and confirm that the engine and transmission combination in the vehicle matches the starter specifications before purchase.

If you are unsure about the mount type, tooth count or rotation, the safest approach is to inspect the original unit and match the physical details exactly. The pinion diameter of 54.5mm, pinion at rest measurement of 37mm and pad mount style are all practical checkpoints when verifying compatibility.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS824 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 11.5, Overall Length 221mm, Pinion Diameter 54.5mm, Suits Unit Make Mitsuba, Note Voltage drop to the starter (Low voltage) can cause the solenoid contacts to chatter and burn. Please make sure to check the battery condition and cables before the new starter motor fitment., Starter Mount Type Pad.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS824, Brand OEX, Description OEX Starter Motor 12V 19Th CCW Mitsuba Style - See Note, Mount Centres A 108mm, Number of Teeth 19, Pinion at Rest 37mm, Rotation CCW, Voltage 12, New / Reman. New.

OEX Starter Motor 12V 19Th CCW Mitsuba Style - See Note. Part number MXS824 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS824, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014, HONDA ACCORD 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MXS824, the Mitsuba style application, 12V rating, 19 tooth count, CCW rotation and the listed mounting measurements before ordering.

FAQ

What part number is this starter motor?

The listed part number is MXS824.

What voltage is the starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 19 teeth.

What rotation does this starter motor use?

The rotation is CCW, which means counter-clockwise.

What mounting style is listed?

The starter mount type is listed as pad mount, with 108mm mount centres and an 11.5mm mount hole diameter.

What should be checked before fitting?

The note advises checking battery condition and cables first, because low voltage at the starter can cause the solenoid contacts to chatter and burn.
