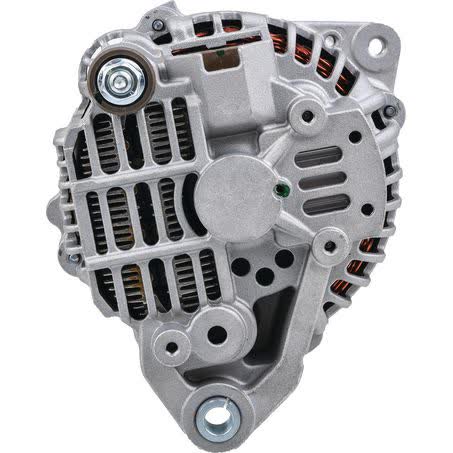

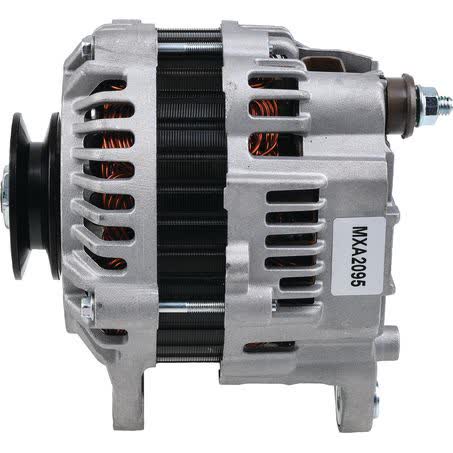

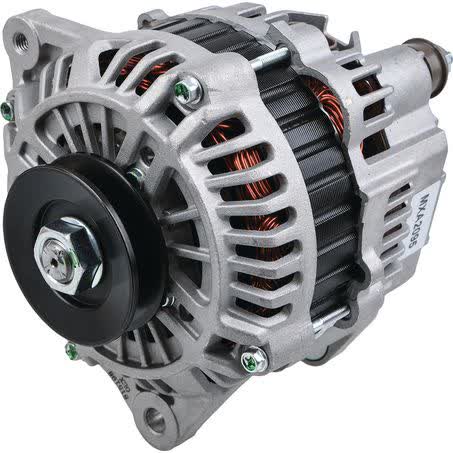

OEX Alternator 12V 110A Mitsubishi Style MXA2095

The OEX Alternator MXA2095 is a new 12V, 110A unit in Mitsubishi style, supplied as an alternator for rotating electrical applications. It uses an internal regulator, clockwise rotation, and an A section pulley with a 70mm outside diameter, making the main mounting and drive details easy to compare before ordering.

Mounting dimensions matter with this unit: it has twin leg alternator mounting, 80mm inside mounting legs, a 10.5mm pivot hole diameter, and an M8 x 1.25 adjusting hole diameter. Those measurements are the practical checks that help confirm whether the alternator will physically suit the existing bracket and adjuster arrangement.

The unit is listed as new, weighs 6.3kg, and carries part number MXA2095. OEX states the product is sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty, with a 3yr passenger / 1yr commercial warranty shown for this alternator.

Key Features

• 12V alternator with 110A output
• Mitsubishi style unit
• Internal regulator
• Twin leg mounting
• Clockwise rotation
• A section pulley, 70mm outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Part number: MXA2095
• Voltage: 12V
• Power rating: 110A
• Unit condition: New
• Weight: 6.3kg
• Rotation: CW

Fitment notes

• KUBOTA: SERIES-M, SERIES-M 1998, SERIES-M 1999, SERIES-M 2000, SERIES-M 2001, plus other listed applications

Application and Buying Notes

Before ordering, compare the alternator mounting style and dimensions against the existing unit or bracket. The key checks for MXA2095 are twin leg mounting, 80mm inside mounting legs, a 10.5mm pivot hole, and an M8 x 1.25 adjusting hole. If those points do not line up with the vehicle’s current setup, the alternator may not physically fit even if the electrical rating appears close.

Electrical output is another important checkpoint. This alternator is rated at 12V and 110A, so it suits applications designed for that voltage and charging capacity. The internal regulator is also a meaningful detail, because vehicles set up for a different regulator arrangement may require a different unit.

Drive alignment should be checked as carefully as the mounting points. This unit uses clockwise rotation and an A section pulley with a 70mm outside diameter. Belt profile and pulley size need to match the existing setup to avoid alignment issues or incorrect drive operation.

The listed fitment data provided with this product is limited and does not by itself confirm exact vehicle coverage for every application. For that reason, the safest approach is to match the part number MXA2095 and verify the physical dimensions, pulley section, voltage, and regulator type before purchase. That is particularly important where the vehicle has been modified, fitted with a different engine variant, or previously repaired with non-standard components.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2095 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 10.5, Pulley Outside Diameter 70mm, Regulator Type Internal, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg, New / Reman. New.

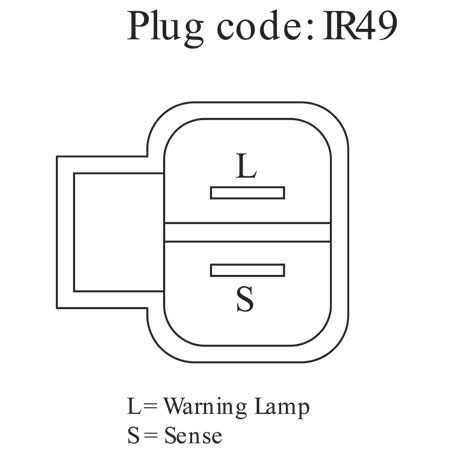

Additional published details for cross-checking include Weight 6.3kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXA2095, Brand OEX, Description OEX Alternator 12V 110A Mitsubishi Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR49, Power Rating (Amp) 110, Pulley Section A, Rotation CW.

OEX Alternator 12V 110A Mitsubishi Style. Part number MXA2095 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2095, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number MXA2095, the 12V 110A specification, twin leg mounting, 80mm inside mounting legs, 10.5mm pivot hole, M8 x 1.25 adjusting hole, CW rotation, and A section 70mm pulley details before ordering.

FAQ

What is the part number for this alternator?

The part number is MXA2095. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with a 110A power rating. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.

What mounting details should be checked before buying?

Check the twin leg mount, 80mm inside mounting legs, 10.5mm pivot hole diameter, and M8 x 1.25 adjusting hole diameter. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.

What pulley details are listed?

It has an A section pulley with a 70mm outside diameter and clockwise rotation. For this listing, part number MXA2095 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 1998, KUBOTA SERIES-M 1999. These details should still be checked against the original unit before ordering.
