OEX Alternator 12V 90A Mitsubishi Style MXA2097

The OEX Alternator MXA2097 is a new 12V, 90A alternator in Mitsubishi style, supplied as each unit and identified for rotating electrical applications. It carries an internal regulator and a 6 groove pulley, with a pulley outside diameter of 65mm and a weight of 5.0kg.

This alternator is listed with a twin leg mount, 66mm inside mounting legs, a 10mm pivot hole diameter, and an M8 x 1.25 adjusting hole diameter. The mount centre to centre measurement is 175mm, which is a key check when comparing against the removed unit before purchase.

It is described as suiting Mitsubishi applications, with fitment data showing Mitsubishi and Mitsubishi Triton references, including Mitsubishi Triton 2015 in the sample applications. As with any charging system component, the correct part number and mounting layout should be confirmed before ordering.

Key Features

• New alternator, not remanufactured
• 12V system, 90A output
• Internal regulator
• 6 groove pulley
• Twin leg alternator mount
• OEX part number MXA2097

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 90A
• Unit of measure: Each
• New / Reman.: New
• Regulator type: Internal
• Pulley outside diameter: 65mm

Fitment guidance

• Listed fitment support includes Mitsubishi and Mitsubishi Triton references
• Sample applications include Mitsubishi Triton and Mitsubishi Triton 2015
• Confirm the removed alternator matches the MXA2097 mounting and pulley details before ordering

Application and Buying Notes

When matching this alternator, start with the part number MXA2097 and then compare the physical details: 12V charging system, 90A output, internal regulator, twin leg mount, 66mm inside mounting legs, and 175mm mount centre to centre. Those measurements are just as important as the vehicle name when checking a replacement alternator.

The pulley is a 6 groove design with a 65mm outside diameter. That matters because belt type and pulley alignment need to match the vehicle’s existing setup. If the pulley section or diameter differs from the removed unit, the alternator may not suit the application even if the vehicle is listed as a Mitsubishi fitment.

This alternator is new and backed by a 3yr passenger / 1yr commercial warranty. That warranty detail is useful for buyers choosing between replacement options, but it does not replace the need to check the mounting ear spacing, pivot hole diameter, and adjusting hole size against the original unit before purchase.

The OEX range is presented as a quality aftermarket option, and the product details include ISO9001-certified factory production. Even so, the safest approach is to verify the vehicle application, the MXA2097 part number, and the alternator’s electrical and mechanical specifications together, especially where Mitsubishi Triton applications are involved.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2097 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 66mm, Pivot Hole Diameter 10, Pulley Outside Diameter 65mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 175mm, Weight 5.0kg.

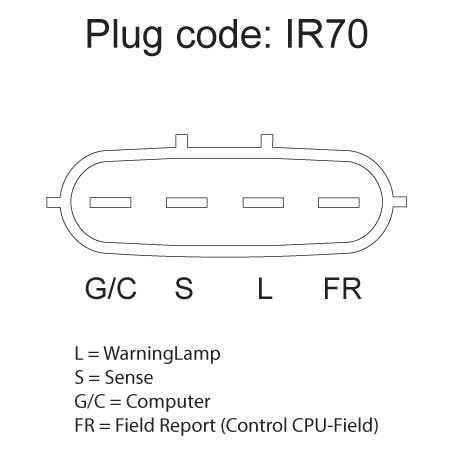

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA2097, Brand OEX, Description OEX Alternator 12V 90A Mitsubishi Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR70, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg.

OEX Alternator 12V 90A Mitsubishi Style. Part number MXA2097 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2097, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number MXA2097, the 12V 90A specification, and the listed mounting and pulley measurements against the original alternator and vehicle application before ordering.

FAQ

What is the part number for this alternator?

The part number is MXA2097. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What electrical output does it have?

It is a 12V alternator with a 90A power rating. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

Does it have an internal or external regulator?

It has an internal regulator. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What pulley setup does it use?

It uses a 6 groove pulley with a 65mm outside diameter. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What vehicle fitment is shown?

The fitment information supports Mitsubishi applications, including Mitsubishi Triton references and a sample application of Mitsubishi Triton 2015. Final fitment should still be confirmed against the part number and mounting details. For this listing, part number MXA2097 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.
