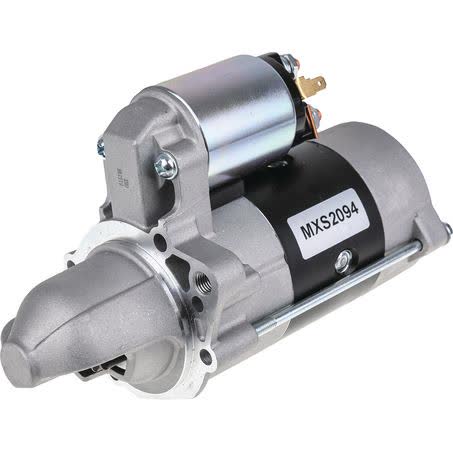

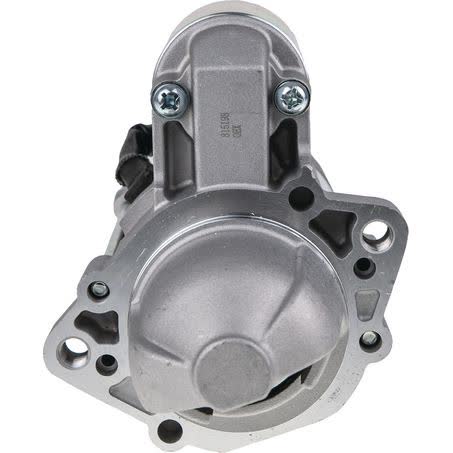

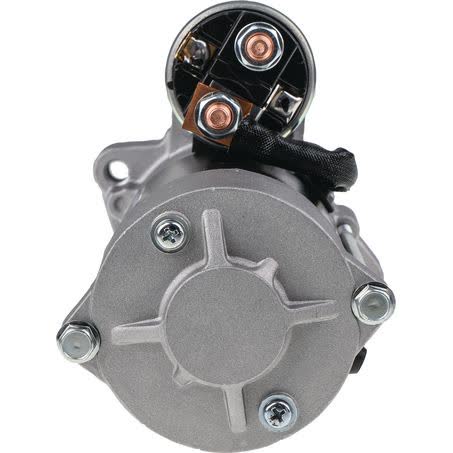

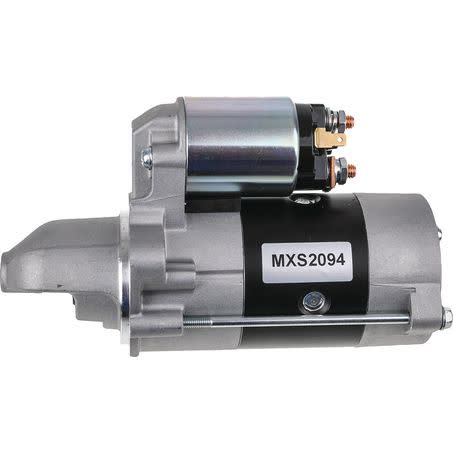

OEX Starter Motor 12V 13 Tooth CW Mitsubishi Style MXS2094

The OEX MXS2094 starter motor is a 12V unit with clockwise rotation, 13 teeth, and a 2.2kW power rating. It is listed as Mitsubishi style and marked as suitable for Mitsubishi applications, with a 2 hole starter mount and an M10x1.5 mount hole thread.

Key dimensions on this starter motor include a 70mm flange diameter, 65mm nose cone length, 226mm overall length, and 161mm body length. The pinion diameter is 35mm, the pinion at rest is 29mm, and the unit weighs 4.4kg.

This is a new starter motor, supplied each, and it is noted as suitable for automatic transmission use only. If you are matching by part number, MXS2094 is the main identifier to compare against the existing unit, along with the listed dimensions and starter mount details.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 13 tooth pinion
• 2.2kW power rating
• 2 hole starter mount
• New unit, supplied each

Specifications

• Brand: OEX
• Part No.: MXS2094
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 13
• Power rating: 2.2kW
• Weight: 4.4kg

Fitment guidance

• Suits Mitsubishi applications
• Fitment references include Mitsubishi Pajero Sport and Mitsubishi Triton
• Listed fitment samples include Mitsubishi Pajero Sport 2015 and Mitsubishi Triton 2015
• Automatic transmission only
• For manual transmission use, the note lists MXS2089

Application and Buying Notes

Before ordering, compare the part number MXS2094 with the starter already fitted to the vehicle. The unit is a 12V, clockwise-rotating starter with 13 teeth and a 2 hole mount, so those details need to match the existing application as well as the Mitsubishi style format.

The physical dimensions matter on this type of starter motor. Check the 70mm flange diameter, 65mm nose cone length, 226mm overall length, 161mm body length, and M10x1.5 mount hole thread against the old part or service information before purchase.

The 2.2kW power rating, 35mm pinion diameter, and 29mm pinion-at-rest measurement help separate similar-looking starter motors that may not interchange. Where the original starter has a readable label, match the identifier and dimensions rather than relying on appearance alone.

OEX states this product is sourced from market leading OEM and aftermarket suppliers and produced in ISO certified factories, with a comprehensive nationwide warranty backing the brand. The listed warranty for this unit is 3 years for passenger use and 1 year for commercial use, so keep the purchase record and part number for reference.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2094 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Flange Diameter 70mm, Nose Cone Length 65mm, Overall Length 226mm, Pinion Diameter 35mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 103mm.

Additional published details for cross-checking include Starter Mount Type 2 Hole, Weight 4.4kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2094, Brand OEX, Description OEX Starter Motor 12V 13Th CW Mitsubishi Style, Body Length 161mm, Mount Hole Diameter M10x1.5, Number of Teeth 13, Pinion at Rest 29mm.

OEX Starter Motor 12V 13Th CW Mitsubishi Style. Part number MXS2094 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2094, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON, MITSUBISHI TRITON 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment with part number MXS2094, transmission type, and the listed measurements before ordering. Mitsubishi application references are provided, but the final check should always be against the vehicle’s existing starter and service details.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2094. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.

Is this a 12 volt starter motor?

Yes. The listed voltage is 12V. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 13 teeth. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.

Is this starter motor for automatic or manual vehicles?

It is noted as suitable for automatic transmission use only. The note lists MXS2089 for manual transmission use. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2094 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI PAJERO SPORT, MITSUBISHI PAJERO SPORT 2015, MITSUBISHI TRITON. These details should still be checked against the original unit before ordering.
