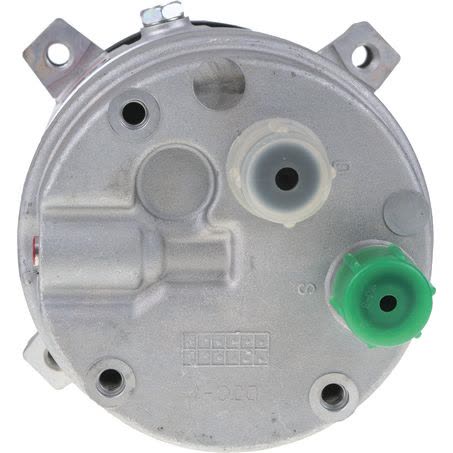

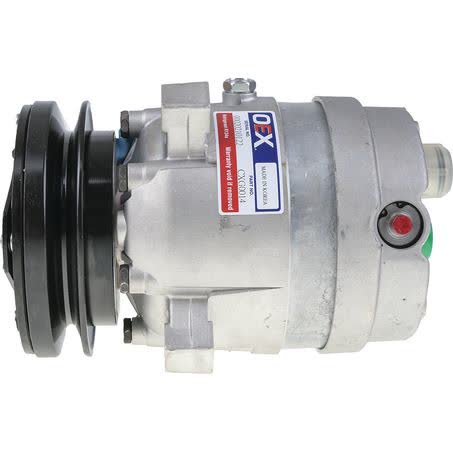

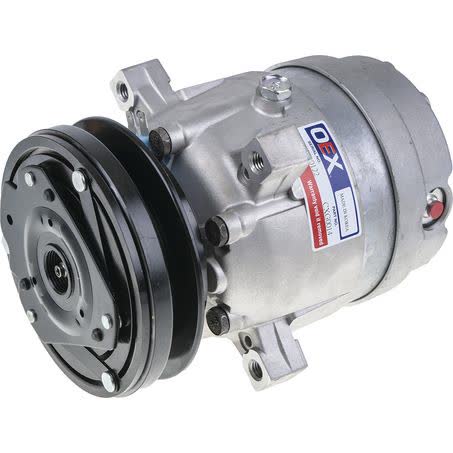

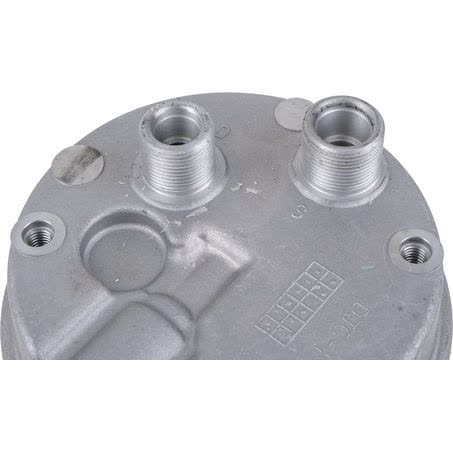

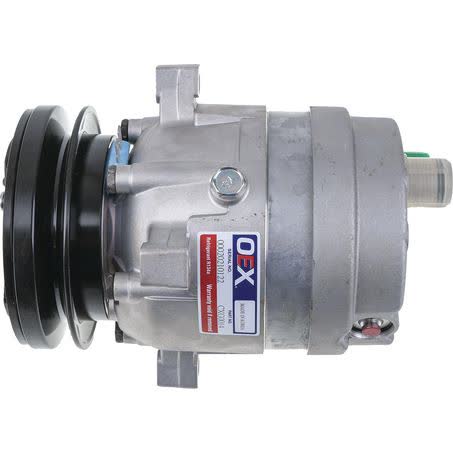

OEX Air Conditioning Compressor Direct Mount V5 Delphi Style 24V CXG0014

The OEX Air Conditioning Compressor Direct Mount V5 Delphi Style is a 24 volt compressor supplied as part number CXG0014. It is listed with an ear mount compressor mounting arrangement, a 132mm clutch diameter, and an O ring horizontal fitting type, so it is important to compare the mounting and hose connection style before ordering.

This compressor is identified for Delphi applications and carries original equipment number 14529059, with OEM number 700644 also listed. The unit is supplied with a 46.5mm gauge line, a pulley section A, steel armature type, and 220ml oil capacity, which are useful checks when matching against an existing compressor.

The listed application includes Volvo Excavator EC240LC. Fitment information also shows Volvo Construction EC240 and related EC240 variants within the supplied application data, but the safest approach is still to confirm the part number, mounting style, voltage, and hose connection details against the machine already fitted.

Warranty is listed as two years. As with any air conditioning compressor replacement, the condition of the rest of the system matters as much as the compressor itself, so the receiver drier, hoses, seals, and cleanliness of the circuit should be assessed before installation.

Key Features

• Direct mount V5 style air conditioning compressor
• 24 volt unit
• Ear mount compressor mounting
• O ring horizontal fitting type
• 132mm clutch diameter
• Pulley section A

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Series: V5 Style
• Suits unit make: Delphi
• Voltage: 24
• Compressor mounting: Ear Mount
• Fitting type: O Ring Horizontal
• Clutch diameter: 132mm

Fitment and application check

• Volvo Excavator EC240LC
• Volvo Construction EC240
• Volvo Construction EC240 2000
• Volvo Construction EC240 2001
• Volvo Construction EC240 2002
• Volvo Construction EC240B Prime
• Volvo Construction EC240B Prime 2010
• Volvo Construction EC240BLC

Application and Buying Notes

Before ordering, match the compressor mounting style, the 24 volt electrical specification, and the hose connection layout. This unit is listed as an ear mount compressor with an O ring horizontal fitting type, so the physical layout needs to line up with the compressor already on the machine.

The 132mm clutch diameter and A section pulley are practical checkpoints when comparing parts side by side. If the existing compressor has a different clutch size or pulley section, the replacement may not be a direct match even if the machine family appears similar.

The listed oil capacity is 220ml, and the compressor is supplied with no dust cover. These details matter during installation and should be checked against the system setup and workshop requirements before the unit is fitted.

Because the application data includes several Volvo Construction EC240 variants as well as EC240LC, the best buying method is to verify the machine model, build details where available, and the part numbers CXG0014, 14529059, and 700644 against the original compressor or parts record.

Air conditioning repairs are best approached as a system check, not a single-part swap. If the previous compressor failed internally, the rest of the circuit should be inspected carefully so contamination is not carried straight into the replacement unit.

If you are replacing a Delphi-style compressor, compare the original mounting ears, pulley arrangement, clutch diameter, and hose port orientation closely. Small differences in these details can affect installation, belt alignment, and hose reach even where the broader model family looks similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXG0014 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Original Equipment Number 14529059, Series V5 Style, Voltage 24, Gauge Line 46.5mm, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXG0014, Brand OEX, Description OEX Air Conditioning Compressor Direct Mount V5 Delphi Style, Clutch Diameter 132mm, Fitting Type O Ring Horizontal, Pulley Section A, Suits Unit Make Delphi, Armature Type Steel, Oil Capacity 220ml.

OEX Air Conditioning Compressor Direct Mount V5 Delphi Style. Part number CXG0014 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXG0014, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using the machine application, part number CXG0014, original equipment number 14529059, OEM number 700644, and the listed mounting and hose details before purchase.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor in V5 Style, listed as a direct mount unit and described as Delphi style.

What voltage is this compressor?

The listed voltage is 24 volts.

What machine is it listed for?

The supplied application includes Volvo Excavator EC240LC, and the fitment data also shows Volvo Construction EC240 and related EC240 variants.

What are the key mounting details?

It is listed with ear mount compressor mounting and an O ring horizontal fitting type.

What part numbers are provided?

The listed part number is CXG0014. The original equipment number is 14529059, and OEM number 700644 is also supplied.

What warranty is listed?

The warranty listed for this compressor is two years.
