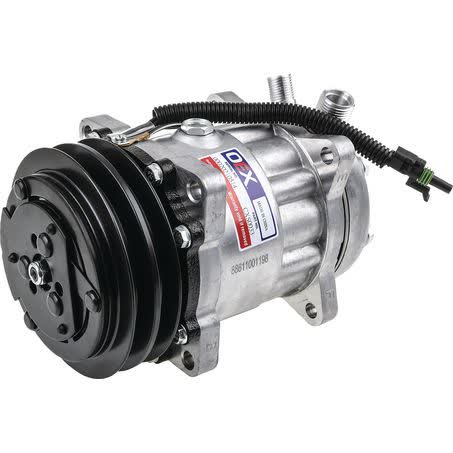

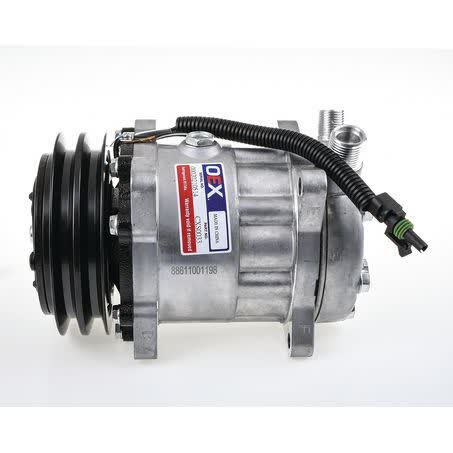

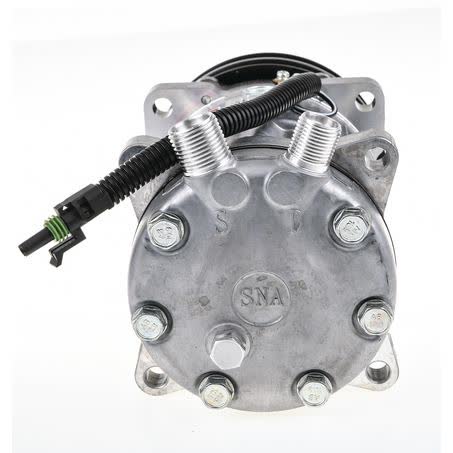

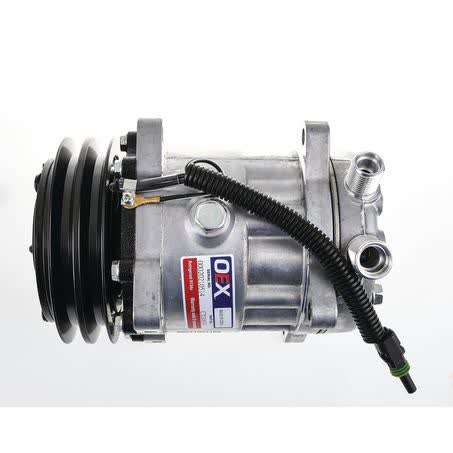

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style CXS0033

The OEX Air Conditioning Compressor is a 12V ear mount unit in SD7H15 style, supplied under part number CXS0033. It is listed as a Sanden-suit compressor with a vertical O-ring fitting type, 132mm clutch diameter, AA pulley section, and 39.55mm gauge line, so the mounting and hose interface details need to match the vehicle application carefully.

The listed warranty is two years, and the unit is identified as an OEX air conditioning compressor for the cooling / AC components group. It is described as universal 12V 2A 132MM E/M VOR GL 39.55mm, which gives useful fitment checkpoints for confirming the compressor body style, pulley arrangement, and electrical system voltage before purchase.

Key Features

• 12V air conditioning compressor
• Ear mount compressor body
• SD7H15 style
• Sanden suit unit
• Vertical O-ring fitting type
• 132mm clutch diameter

Specifications

• Brand: OEX
• Part No.: CXS0033
• Type: Air conditioning compressor
• Voltage: 12
• Compressor mounting: Ear mount
• Series: SD7H15
• Clutch diameter: 132mm
• Pulley section: AA

Known fitment applications

• AGCO ALLIS 8610
• AGCO ALLIS 8630
• CASE 430
• CASE 440CT
• CASE 445
• HAGIE STS12
• HAGIE STS14
• HAGIE STS16

Application and Buying Notes

Before ordering, compare the replacement unit against the part number CXS0033 and the compressor style: 12V, ear mount, SD7H15, and vertical O-ring. A compressor can look similar from the outside and still differ in mounting ears, hose ports, pulley section, or clutch size, so the listed 132mm clutch diameter and AA pulley section are worth checking against the removed part.

Fitment data is supplied for a wide range of machinery and truck applications, including AGCO ALLIS, CASE, HAGIE, JCB, KENWORTH, MACK, NEW HOLLAND, SAME, and VOLVO CONSTRUCTION. Even so, the safest approach is to verify the exact application against the vehicle, the existing compressor, and the fitment details shown here, because the same model range can use more than one air conditioning setup.

If you are replacing a failed compressor, it is worth checking the original mounting arrangement and hose connection type before the job is booked in. The combination of ear mount, vertical O-ring fitting, 39.55mm gauge line, and 132mm clutch diameter gives a practical checklist for confirming whether this unit is the correct match before any refrigerant work begins.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0033 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil type PAG46., Oil Capacity 200ml, Head Code JDA, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0033, Brand OEX, Description OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Series SD7H15, Voltage 12, Gauge Line 39.55mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style. Part number CXS0033 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0033, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430, CASE 430 2008, CASE 430 2009, CASE 430 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number CXS0033, 12V ear mount SD7H15 style details, and the specific application data before ordering. Do not rely on model name alone, as mounting, pulley, clutch, and port details must match the vehicle or machine exactly.

FAQ

What is the part number for this compressor?

The listed part number is CXS0033. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.

What voltage is this air conditioning compressor?

It is a 12V compressor. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It is listed as an ear mount compressor. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.

What oil should be used with this compressor?

The note specifies PAG46 oil. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.

How much oil capacity is listed?

The listed oil capacity is 200ml. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.

Is fitment limited to one vehicle brand?

No. The supplied fitment data includes multiple applications across AGCO ALLIS, CASE, HAGIE, JCB, KENWORTH, MACK, NEW HOLLAND, SAME, and VOLVO CONSTRUCTION, so the exact application should still be checked against part number CXS0033 and the mounting and port details. For this listing, part number CXS0033 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430. These details should still be checked against the original unit before ordering.
