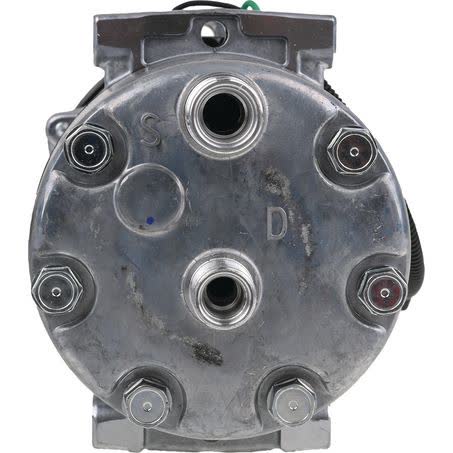

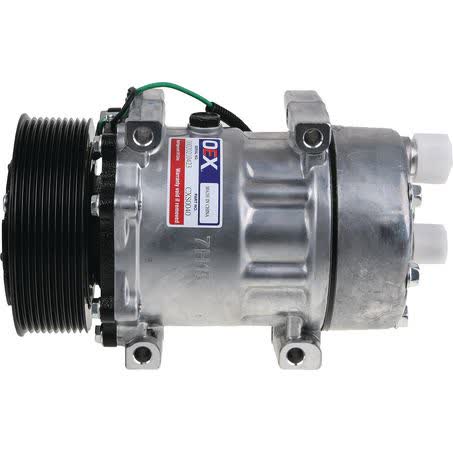

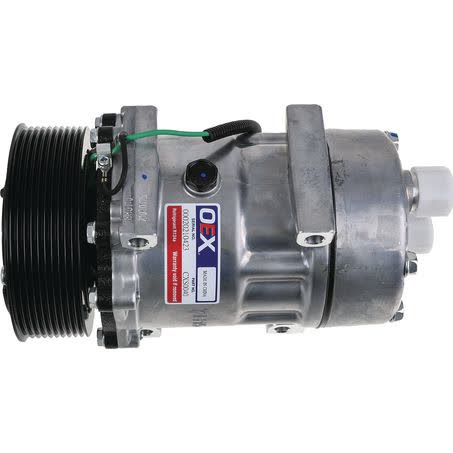

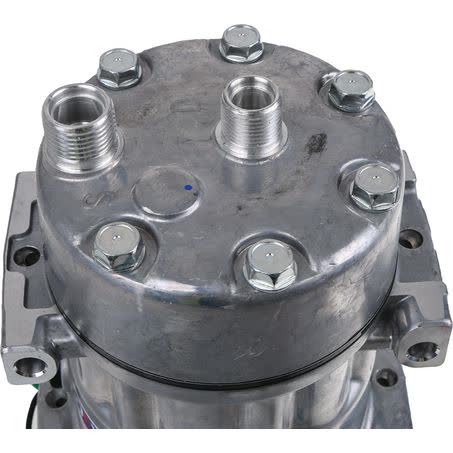

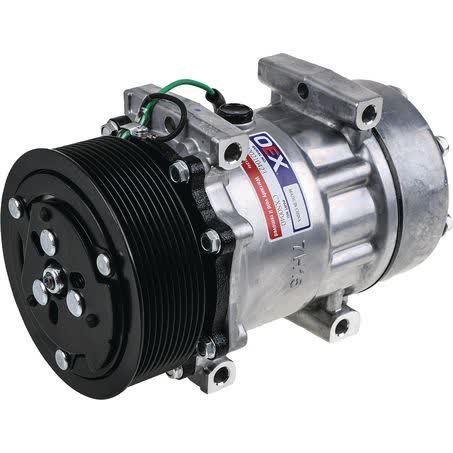

OEX Air Conditioning Compressor 24V Direct Mount SD7H15 Style CXS0040

The OEX Air Conditioning Compressor is a 24V direct mount unit in SD7H15 style, supplied under part number CXS0040. It is listed with a 125mm clutch diameter, 10 groove pulley section, and horizontal O ring fitting type, so it is aimed at applications that need those specific mounting and connection details.

This compressor is described as a universal 24V 10PV direct mount unit with a 65.8mm gauge line and HPRV. The listed head code is KCA, the series is SD7H15, and the unit is supplied without a dust cover. Those details matter when matching the compressor to the existing system layout and hose connection style.

Key Features

• 24V direct mount air conditioning compressor
• SD7H15 style, series SD7H15
• 125mm clutch diameter
• 10 groove pulley section
• Horizontal O ring fitting type
• Supplied without dust cover

Specifications

• Brand: OEX
• Part number: CXS0040
• Type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Direct mount
• Series: SD7H15
• Clutch diameter: 125mm
• Pulley section: 10 groove

Fitment guidance

• Fitment is not fully verified from the supplied data alone.
• The listed application data includes Dennis Eagle and Dennis Eagle Elite 2 references.
• A sample application shown is Dennis Eagle Elite 2 2010.
• Use the part number CXS0040 together with the physical details above before ordering.

Application and Buying Notes

Before buying, compare the existing compressor against the key identifiers on this unit: CXS0040, 24V, SD7H15 series, direct mount, 125mm clutch diameter, and 10 groove pulley section. Those are the most useful checks when you are confirming whether the replacement matches the vehicle’s air conditioning setup.

The product is described as a universal 24V 10PV direct mount unit, but that does not remove the need to confirm the actual vehicle application. The supplied fitment references point to Dennis Eagle and Dennis Eagle Elite 2 listings, including Dennis Eagle Elite 2 2010, yet the safest approach is still to match the part number, mounting style, groove count, and connection type against the unit being replaced.

Because the unit is supplied without a dust cover, check whether the vehicle or installation needs one separately. It is also worth confirming the compressor’s physical clearance, hose routing, and the condition of the existing bracketry before installation, especially where the direct mount design and 65.8mm gauge line are part of the fitment equation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0040 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 10 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX008 & ORX010 .HPRV. Oil type PAG46., Oil Capacity 200ml, Head Code KCA, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0040, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount SD7H15 Style, Clutch Diameter 125mm, Fitting Type Horizontal O Ring, Series SD7H15, Voltage 24, Gauge Line 65.8mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 24V Direct Mount SD7H15 Style. Part number CXS0040 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0040, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number CXS0040, 24V direct mount SD7H15 style details, 125mm clutch diameter, 10 groove pulley section, and horizontal O ring fitting type before purchase. Where vehicle application is involved, use the listed Dennis Eagle and Dennis Eagle Elite 2 references only as a guide and verify against the compressor being replaced.

FAQ

What is the part number for this compressor?

The part number listed is CXS0040. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What voltage is this air conditioning compressor?

It is a 24V compressor. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is listed as a direct mount compressor. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What oil type and oil capacity are specified?

The specified oil type is PAG46 and the oil capacity is 200ml. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What fitting type does it have?

The fitting type is horizontal O ring. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

Are any vehicle applications listed?

Yes. The supplied fitment references include Dennis Eagle and Dennis Eagle Elite 2, with a sample application shown as Dennis Eagle Elite 2 2010. Fitment still needs to be confirmed against the existing unit and part number. For this listing, part number CXS0040 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.
