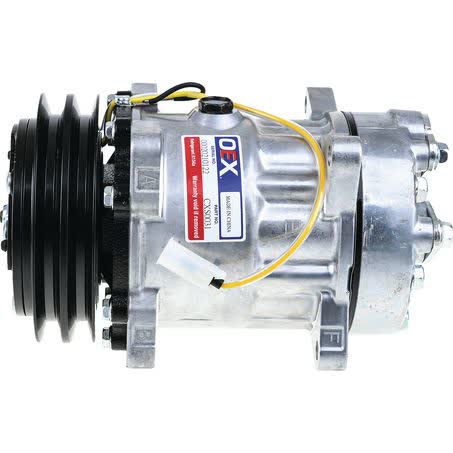

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style CXS0031

The OEX Air Conditioning Compressor is a 24V ear mount unit in SD7H15 style, identified by part number CXS0031. It is listed with a 132mm clutch diameter, AA pulley section, horizontal special pad fitting type, and a gauge line of 39.55mm, so those dimensions should be checked carefully against the existing compressor setup before purchase.

This compressor is supplied as an OEX cooling component, with a special coil terminal, plastic dust cover, and a note to use O rings to suit ORX058 and ORX059. The listed oil type is PAG46, with an oil capacity of 240ml, which is important when comparing against the vehicle’s existing A/C requirements and service details.

The unit is described as universal 24V 2A 132MM and as a Sanden suit unit make. That makes the part number, mounting style, voltage, clutch diameter, and fitting arrangement the key identifiers to match, rather than relying on appearance alone. The two-year warranty is also listed for this part.

Key Features

• 24V air conditioning compressor
• Ear mount design
• SD7H15 style
• 132mm clutch diameter
• Horizontal special pad fitting
• Plastic dust cover

Specifications

• Part No.: CXS0031
• Voltage: 24V
• Compressor mounting: Ear mount
• Series: SD7H15
• Clutch diameter: 132mm
• Pulley section: AA
• Fitting type: Horizontal special pad
• Gauge line: 39.55mm

Fitment guidance

• Fitment information supplied includes Volvo and Volvo Construction applications.
• Sample applications supplied include VOLVO A, VOLVO A 2007, VOLVO A 2011, and VOLVO CONSTRUCTION.
• Volvo Construction models listed in the supplied fitment data include EC140B, EC140BLC, EC140BLCM, EC140C, EC140D, EC160B LC, EC160B NLC, EC160B PRIME, EC180B LC, EC210B, EC210B PRIME, EC210BLC, EC210C, EC210C LR, EC210C N, EC210C NL, EC210CL, EC220D, EC240B PRIME, and EC240C.
• Additional Volvo Construction models listed include EC250D, EC290B PRIME, EC290BNLC, EC290C, EC290C LR, EC290C NL, EC290CL, EC300D, EC300D/DL, EC330BLC, EC360BLC, EC360BNLC, EW140C, EW160C, EW180C, EW210C, FC2421C, FC2924C, G740B, G946, L110E, L110F, L120E TIER 2, L120E TIER 3, L120F, L150E, L180G/G HI LIFT, L220G, L45F, L50F, L60E, L60F, L70E, and L70F.
• The fitment data is extensive but should still be confirmed against the original compressor part number and mounting details on the vehicle.

Application and Buying Notes

Before ordering, compare the part number CXS0031, the 24V voltage, and the ear mount configuration with the compressor currently fitted. The 132mm clutch diameter, AA pulley section, and horizontal special pad fitting are all practical checks that can help avoid a mismatch, especially where the vehicle has been converted or the A/C system has previously been repaired.

The listed note for this compressor matters: it uses O rings to suit ORX058 and ORX059, a special coil terminal, and PAG46 oil with a 240ml capacity. If any of those details differ from the unit being replaced, the compressor may still not be a direct swap even if the style looks similar.

Sanden is the stated suit unit make, and the product is described as SD7H15 style. That combination is useful when cross-checking the old compressor, but the safest approach is still to verify the mounting, clutch size, pulley section, and terminal arrangement before fitting. For equipment such as Volvo and Volvo Construction applications, those physical and identification checks are especially important.

If you are replacing a failed compressor, it is also worth confirming the surrounding air conditioning components and service requirements before the job begins. The dust cover is included, the oil type is PAG46, and the compressor is a 24V unit, so the replacement should be matched to the system specification already in place rather than assumed from model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0031 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059. Special coil terminal. Oil type PAG46., Oil Capacity 240ml, Head Code WZ, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0031, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Horizontal Special Pad, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N Yes.

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style. Part number CXS0031 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0031, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm compatibility using part number CXS0031, the 24V ear mount configuration, the 132mm clutch diameter, and the horizontal special pad fitting details before purchase. Where vehicle application is involved, use the supplied fitment data only as a guide and verify against the existing unit on the vehicle.

FAQ

What is the part number for this compressor?

The listed part number is CXS0031.

What voltage is the compressor?

It is a 24V air conditioning compressor.

What mounting style does it use?

The compressor is listed as an ear mount unit.

What oil should be used with this compressor?

The listed oil type is PAG46, with an oil capacity of 240ml.

Are any seals or O rings specified?

Yes. The note states O rings to suit ORX058 and ORX059.

Is there any fitment data provided?

Yes. The supplied fitment data includes Volvo and Volvo Construction applications, with sample entries such as VOLVO A, VOLVO A 2007, VOLVO A 2011, and multiple Volvo Construction models.
