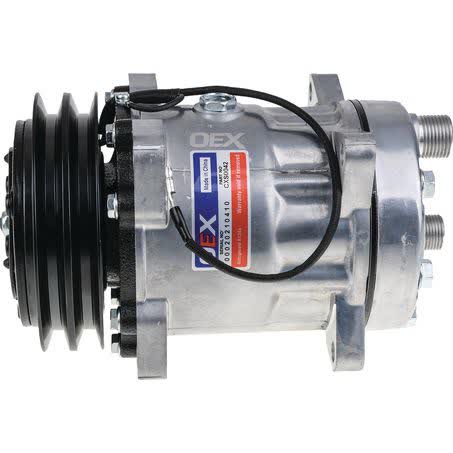

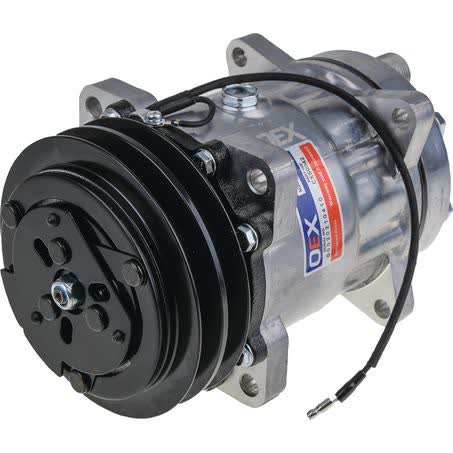

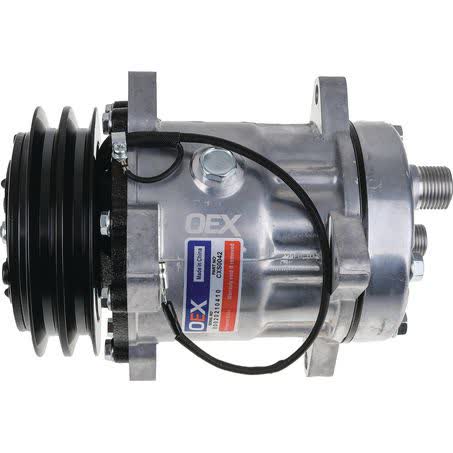

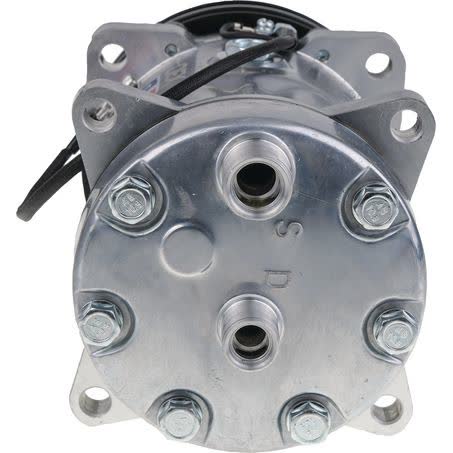

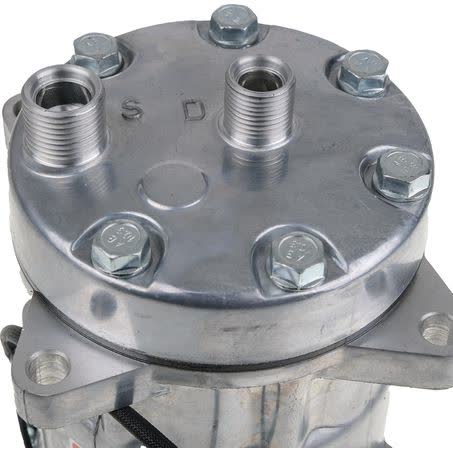

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style CXS0042

The OEX Air Conditioning Compressor is a 12V ear mount unit in SD7H15 style, identified by part number CXS0042. It is listed r conditioning compressor for the cooling system and is supplied as an each unit, which makes the key identification details straightforward when matching to an existing compressor or parts listing.

This compressor is specified with a 132mm clutch diameter, AA pulley section, horizontal O-ring fitting type, and a 39.55mm gauge line. The stated head code is KG, the compressor mounting is ear mount, and the series is SD7H15. Those details matter because the physical mounting style and connection layout are just as important as the 12V rating when checking suitability.

The unit is described as a universal 12V 2A 132mm E/MHOR GL 39.55mm rubber clutch compressor, with O-rings to suit ORX008 and ORX010 and oil type SP20. Oil capacity is listed at 135ml, and there is no dust cover fitted. The brand is OEX and the product carries a two year warranty.

Key Features

• 12V air conditioning compressor
• Ear mount compressor style
• SD7H15 series
• Part number CXS0042
• 132mm clutch diameter
• AA pulley section

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: SD7H15
• Compressor mounting: Ear mount
• Clutch diameter: 132mm
• Pulley section: AA
• Fitting type: Horizontal O-ring

Listed application groups

• AMMANN VP2400
• CASE IH JX-SERIES
• CASE IH JXU85
• CASE IH JXU95
• CASE IH MAXXUM
• DEUTZ-FAHR AGROFARM
• DEUTZ-FAHR AGROTRON
• DEUTZ-FAHR AGROTRON M

Application and Buying Notes

Before ordering, compare the part number CXS0042 with the compressor already fitted to the machine, then check the mounting style, clutch diameter, and pulley section. This unit is an ear mount SD7H15 style compressor with a 132mm clutch and AA pulley section, so those dimensions need to match the application and the available mounting space.

The connection style also needs attention. This compressor uses a horizontal O-ring fitting type and is noted for ORX008 and ORX010 O-rings, so the hose and seal arrangement should be confirmed against the vehicle or equipment already in service. A mismatch in fittings can stop the compressor from being installed correctly even when the voltage appears similar.

The fitment group list covers a range of agricultural and equipment applications, including AMMANN VP2400, CASE IH JX and JXU series entries, DEUTZ-FAHR AGROTRON and AGROFARM groups, FORD 800, 900 and 9000 series, LANDINI LEGEND, MULTIPAC VP2400, NEW HOLLAND FX series entries, and SAME EXPLORER. Use those application groups as a guide only, then confirm the exact part number and compressor details on the machine before purchase.

The warranty is two years, which is a useful commercial detail, but warranty coverage does not replace the need to verify fitment. The safest approach is to match the 12V electrical requirement, the ear mount format, the 132mm clutch diameter, and the horizontal O-ring layout before finalising the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0042 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type SP20, Oil Capacity 135ml, Head Code KG, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0042, Brand OEX, Description OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Horizontal O Ring, Series SD7H15, Voltage 12, Gauge Line 39.55mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style. Part number CXS0042 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0042, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number CXS0042, the 12V rating, ear mount configuration, 132mm clutch diameter, AA pulley section, and horizontal O-ring fitting type to the existing unit and application details before purchase.

FAQ

What is the part number for this compressor?

The listed part number is CXS0042. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.

What voltage is this air conditioning compressor?

It is a 12V compressor. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses an ear mount compressor mounting style. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.

What are the key clutch and pulley details?

The clutch diameter is 132mm and the pulley section is AA. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.

What fitting type does it have?

It uses a horizontal O-ring fitting type and is noted for O-rings to suit ORX008 and ORX010. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.

What oil specification is listed?

The listed oil type is SP20 and the oil capacity is 135ml. For this listing, part number CXS0042 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN VP2400, AMMANN VP2400 2001, CASE IH JX-SERIES. These details should still be checked against the original unit before ordering.
