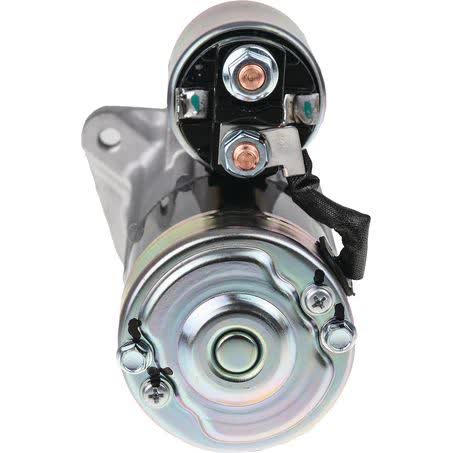

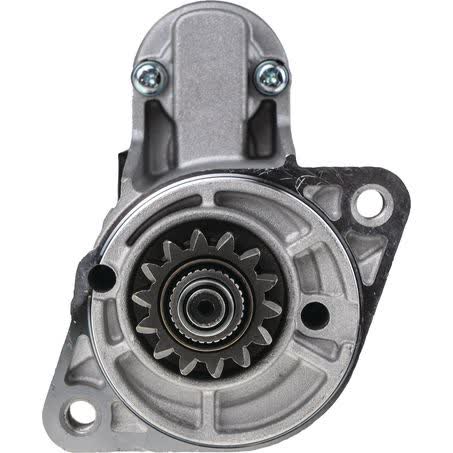

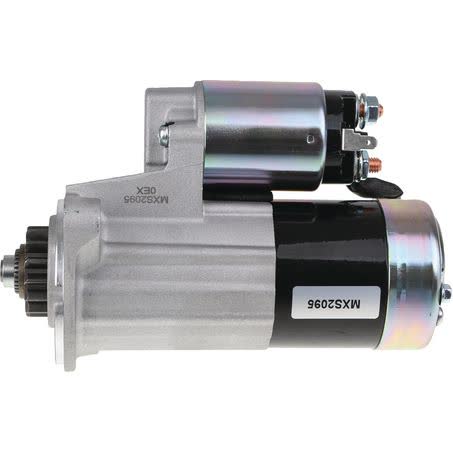

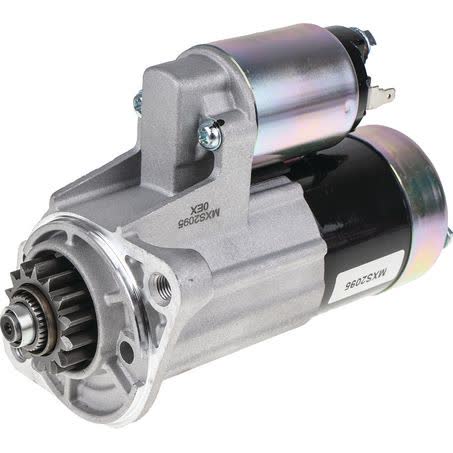

OEX Starter Motor 12V 14 Tooth Mitsubishi Style MXS2095

The OEX MXS2095 starter motor is a new 12V unit in 14 tooth Mitsubishi style, supplied as an each item for rotating electrical applications. It carries a 1.2kW power rating, a clockwise rotation, and a 2 hole starter mount type, so matching the physical layout is just as important as matching the electrical specification.

Key dimensions on this starter include a 77mm flange diameter, 105mm mount centre to centre, an M10 x 1.25 mount hole diameter, and an overall length of 207mm. The pinion diameter is 42.5mm and the pinion at rest measures 18mm, which makes it worth checking the available clearance and engagement setup before ordering.

This starter is listed for Mitsubishi units, but the fitment information supplied also includes a broad range of compact machinery applications across CASE, Caterpillar, Hyundai Construction, Kobelco, New Holland, Terex O&K, Toro, and Volvo Construction. Because starter motors can look similar while still differing in bolt pattern, pinion size, rotation, and engagement depth, the part number and measurements should be confirmed carefully before purchase.

Key Features

• New OEX starter motor
• 12V electrical system
• 14 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• 1.2kW power rating

Specifications

• Brand: OEX
• Type: Starter Motor
• Part No.: MXS2095
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: Clockwise (CW)
• Number of teeth: 14
• Starter mount type: 2 hole

Supplied fitment applications

• CASE CX15B II
• CASE CX17B
• CASE CX18B II
• Caterpillar 301.6C
• Caterpillar 301.8C
• Hyundai Construction R16-9
• Hyundai Construction ROBEX15-7
• Hyundai Construction ROBEX16-7

Application and Buying Notes

When replacing a starter motor, the safest approach is to match the part number MXS2095 first, then confirm the physical details against the original unit. The important checks here are the 12V voltage, 14 tooth pinion, clockwise rotation, and the 2 hole mount with 105mm centre-to-centre spacing, as these are the points most likely to determine whether the unit will physically and electrically suit the application.

The listed dimensions are practical buying checks rather than background details. With a 207mm overall length, 77mm flange diameter, 42.5mm pinion diameter, and M10 x 1.25 mount holes, this starter should be compared directly with the removed component where possible. If the old starter shows different mounting, pinion, or housing dimensions, do not rely on appearance alone.

This unit is supplied as new, which is useful when a clean replacement is preferred over a remanufactured part. It is also backed by a 3 year passenger and 1 year commercial warranty, but warranty coverage does not replace application checking. A starter that matches the wrong rotation, tooth count, or bolt pattern may still be unsuitable even if it physically fits close by.

The fitment list includes a mix of compact construction equipment and turf machinery, so buyers should verify the exact model designation and any year information shown on their existing part or equipment records. Models such as CASE CX15B II, Caterpillar 301.6C, Hyundai Construction R16-9, Kobelco SK17SR, New Holland E18SR, Terex O&K TC20, Toro Groundsmaster, and Volvo Construction EC20BXTV appear in the supplied applications, but the final check should still be against the original starter details on the machine.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2095 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10 x 1.25, Overall Length 207mm, Pinion Diameter 42.5mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 105mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2095, Brand OEX, Description OEX Starter Motor 12V 14Th Mitsubishi Style, Flange Diameter 77mm, Number of Teeth 14, Pinion at Rest 18mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi.

OEX Starter Motor 12V 14Th Mitsubishi Style. Part number MXS2095 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2095, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE CX15B II, CASE CX15B II 2008, CASE CX17B, CASE CX17B 2007, CATERPILLAR 301.6C, CATERPILLAR 301.6C 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the part number MXS2095, the 12V specification, 14 tooth count, CW rotation, 2 hole mount, and the measured dimensions before ordering. If your original starter differs in any of these points, check the application carefully with your parts interpreter or workshop records.

FAQ

What is the part number for this starter motor?

The part number supplied is MXS2095.

Is this a new or remanufactured starter?

It is listed as new.

What voltage does this starter use?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 14 teeth.

What are the main mounting details?

It has a 2 hole starter mount, M10 x 1.25 mount holes, and 105mm mount centre to centre.

Which equipment groups are shown in the fitment list?

The supplied applications include CASE, Caterpillar, Hyundai Construction, Kobelco, New Holland, Terex O&K, Toro, and Volvo Construction models.
