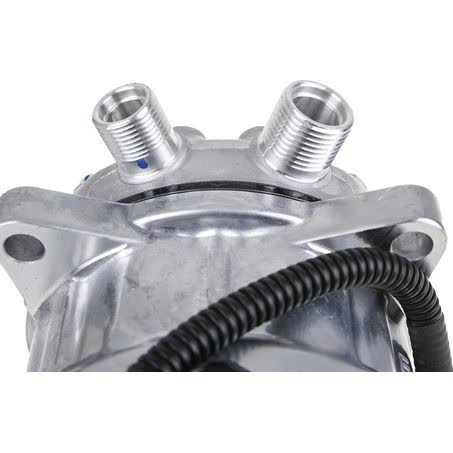

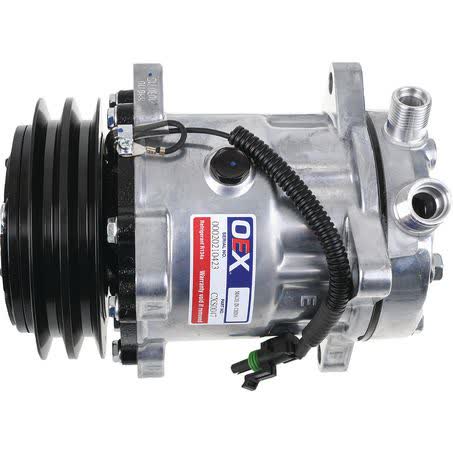

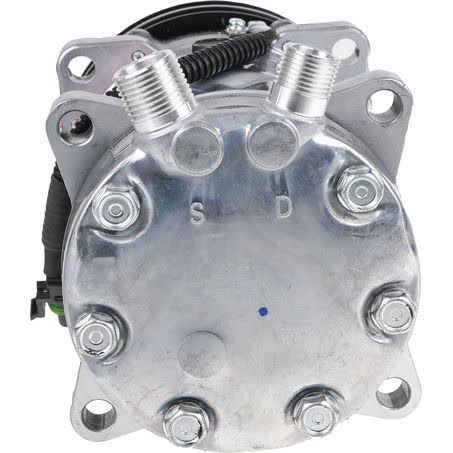

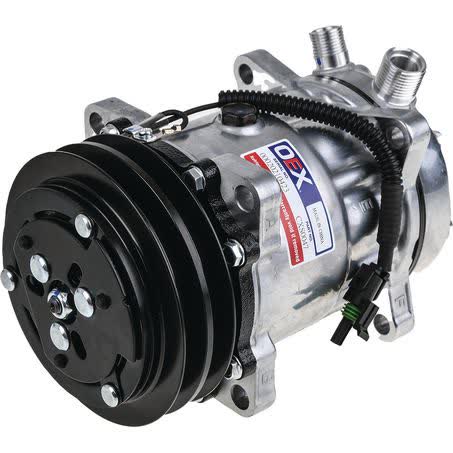

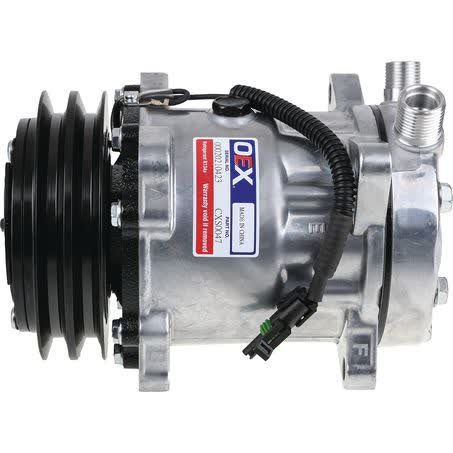

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style CXS0047

The OEX Air Conditioning Compressor is a 12V ear mount unit in SD7H15 style, identified by part number CXS0047. It is listed with a 132mm clutch diameter, AA pulley section, vertical O ring fitting type, and a 39.55mm gauge line, so matching the physical mounting and hose connection details matters before ordering.

This compressor is described as a Sanden-suit unit and carries a head code of JD. The listed oil specification is PAG46 with an oil capacity of 240ml, and the note states O rings to suit ORX008 and ORX010. Those details are important when comparing the replacement to the original compressor already fitted to the vehicle or machine.

A two year warranty is listed, and the product is sold as each. The source description also notes a universal 12V 2A 132mm E/M VOR GL 39.55mm configuration, which is best read as a dimensional and mounting reference rather than a blanket fitment claim. Confirm the part number, mounting style, and connection style against the existing unit before purchase.

Key Features

• 12V air conditioning compressor
• Ear mount design
• SD7H15 style
• 132mm clutch diameter
• AA pulley section
• Vertical O ring fitting type

Specifications

• Part number: CXS0047
• Brand: OEX
• Voltage: 12V
• Compressor mounting: Ear mount
• Series: SD7H15
• Clutch diameter: 132mm
• Pulley section: AA
• Fitting type: Vertical O ring

Fitment guidance

• No verified vehicle-specific fitment list is included with this product data.
• Compatibility should be confirmed against the existing compressor part number, mounting style, pulley section, clutch diameter, and hose connection type before ordering.
• The listed fitment clues are 12V, ear mount, SD7H15 style, AA pulley section, 132mm clutch diameter, vertical O ring fitting type, and 39.55mm gauge line.
• A Sanden-suit application is stated, but that should still be checked against the compressor currently installed in the vehicle or machine.

Application and Buying Notes

Before ordering, compare the compressor currently fitted to your vehicle or machine with part number CXS0047, because the physical details matter here: 12V operation, ear mount layout, SD7H15 style, 132mm clutch diameter, AA pulley section, and vertical O ring hose connection. If any of those items differ, the unit may not be a direct replacement.

The note for ORX008 and ORX010 O rings is useful when planning the job, because sealing parts are often needed at the same time as the compressor itself. Measuring the gauge line at 39.55mm and confirming the head code JD can help when matching against the original unit or checking with your repairer.

This compressor is sold as a single each unit and carries a two year warranty. Warranty terms do not replace fitment checks, so it is still best to confirm the existing compressor’s mounting ears, belt alignment, and hose connection style before fitting. That approach is especially important on equipment with similar-looking Sanden-suit compressors that differ in detail.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0047 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil type PAG46., Oil Capacity 240ml, Head Code JD, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0047, Brand OEX, Description OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Series SD7H15, Voltage 12, Gauge Line 39.55mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style. Part number CXS0047 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0047, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 8610, AGCO ALLIS 8630, CASE 430, CASE 430 2008, CASE 430 2009, CASE 430 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility by matching part number CXS0047, the 12V ear mount layout, SD7H15 style, 132mm clutch diameter, AA pulley section, and vertical O ring connection against the unit already fitted to the vehicle or machine.

FAQ

What is the part number for this compressor?

The listed part number is CXS0047.

What voltage is this compressor?

It is a 12V air conditioning compressor.

What mounting type does it use?

It is listed as an ear mount compressor.

What oil should be used?

The listed oil type is PAG46, with an oil capacity of 240ml.

Does it include verified vehicle fitment?

No verified vehicle-specific fitment list is included here, so compatibility should be checked against the existing compressor and mounting details.

What are the key dimensional checks?

The key listed dimensions and identifiers are a 132mm clutch diameter, AA pulley section, vertical O ring fitting type, and a 39.55mm gauge line.
