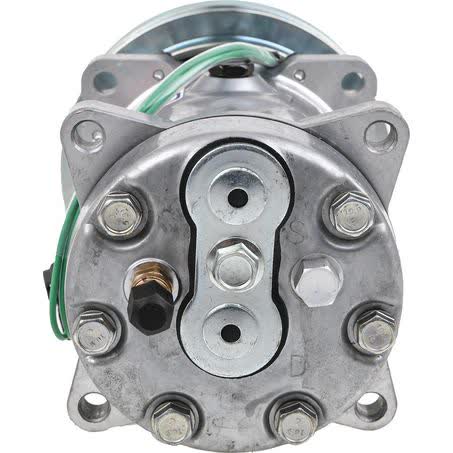

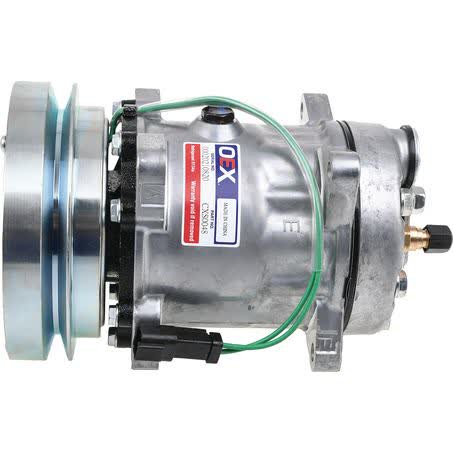

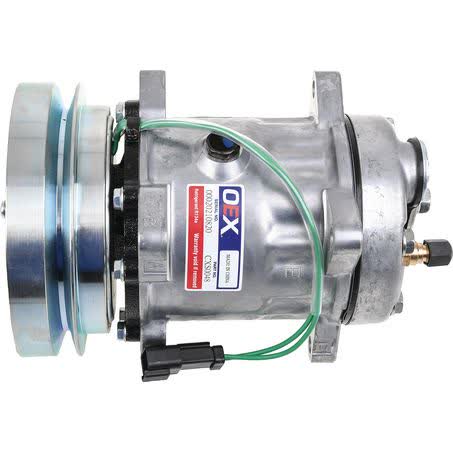

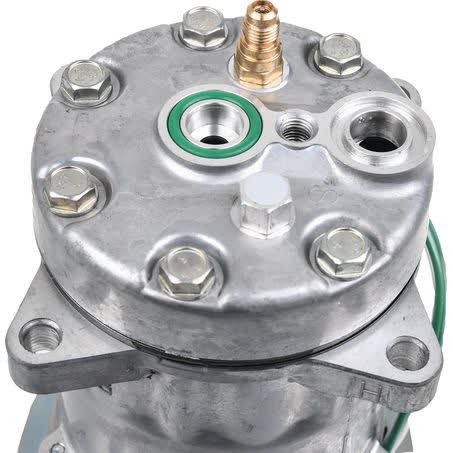

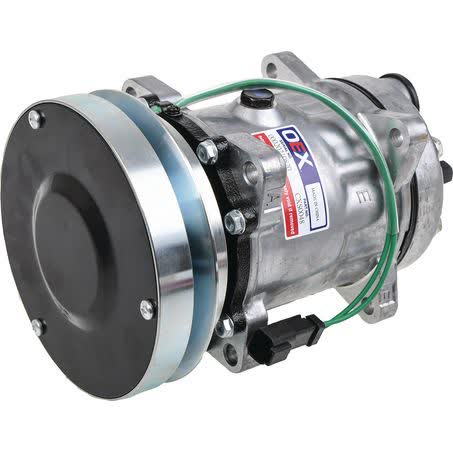

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style CXS0048

The OEX Air Conditioning Compressor is a 24V ear mount unit in SD7H15 style, supplied under part number CXS0048. It is described as a universal 24V 1A compressor with a 152mm fully sealed clutch, GM pad fitting type, and a 39.55mm gauge line.

This compressor is listed with Sanden as the unit make, series SD7H15, and head code GK. The mounting style is ear mount, the pulley section is A, and a dust cover is included as specified. For buyers matching existing hardware, the clutch diameter is 152mm and the fitting type is Pad - GM.

The notes supplied with the compressor call for O Ring ORX017 x 2 and state SHD, meaning Sealed Heavy Duty Clutch. Oil type is PAG46 and oil capacity is 300ml. These details matter when replacing a compressor because the wrong oil type, incorrect O rings, or a mismatch in mounting style can prevent a proper installation.

Key Features

• 24V air conditioning compressor
• Ear mount design
• SD7H15 style, series SD7H15
• Fully sealed clutch
• 152mm clutch diameter
• Pad - GM fitting type

Specifications

• Brand: OEX
• Type: Air conditioning compressor
• Voltage: 24V
• Unit of measure: Each
• Compressor mounting: Ear mount
• Suits unit make: Sanden
• Series: SD7H15
• Head code: GK

Fitment guidance

• Verified fitment is not fully supplied for this listing.
• The provided application preview includes Caterpillar 924G, 928G, 928GZ, 930G, 938F, 938G, 938GII, 950G, 950GII, 953C, 962G, 962GII, 963C, 963D, 963DWH, 973C, CB-634D, CP563D, CP563E, CS563D, CS573D, CS583D, D10 and D10R.
• Sample application data also shows Caterpillar 924G for model years 2002, 2003 and 2004.
• Do not rely on model name alone; confirm the compressor mounting, clutch diameter, gauge line, fitting type, and part number before ordering.

Application and Buying Notes

Before buying, compare the existing compressor against part number CXS0048, the 24V rating, the ear mount configuration, and the Pad - GM fitting type. Those identifiers are the most practical checks when replacing a compressor on machinery that may have similar-looking air conditioning components.

The 152mm clutch diameter and 39.55mm gauge line are important match points because a compressor can look close in appearance but still differ in pulley or mounting details. The listing also specifies a fully sealed clutch and dust cover, so make sure your removed unit uses the same style before committing to the replacement.

Oil compatibility should be checked carefully. This compressor is specified for PAG46 oil with a 300ml capacity, and the note calls for O Ring ORX017 x 2. If the existing system has been altered, cleaned, or previously fitted with a different compressor type, the installer should verify the correct service requirements before installation.

The supplied fitment data points toward Caterpillar applications, but it is not complete enough to treat as a blanket guarantee. Use the unit make Sanden, series SD7H15, head code GK, and part number CXS0048 together when confirming suitability against the old compressor or the machine records.

If you are cross-checking for fleet or workshop use, the most reliable path is to match the physical mounting points, clutch dimensions, and the compressor code on the old unit. That is especially important where multiple SD7H15-style compressors may exist with different fittings or pulley details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0048 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section A, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2.SHD ( Sealed Heavy Duty Clutch ). Oil type PAG46., Oil Capacity 300ml, Head Code GK, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0048, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style, Clutch Diameter 152mm, Fitting Type Pad - GM, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N Yes.

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style. Part number CXS0048 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0048, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 924G, CATERPILLAR 924G 2002, CATERPILLAR 924G 2003, CATERPILLAR 924G 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS0048, the 24V ear mount SD7H15 style, Pad - GM fitting type, 152mm clutch diameter, and the existing application details before ordering.

FAQ

What is the part number for this compressor?

The part number listed is CXS0048.

What voltage is this air conditioning compressor?

It is a 24V compressor.

What mounting style does it use?

The compressor is listed as an ear mount unit.

What type of clutch is specified?

It is described as a fully sealed clutch, with the note SHD meaning Sealed Heavy Duty Clutch.

What oil should be used with this compressor?

The listed oil type is PAG46, with an oil capacity of 300ml.

Is fitment confirmed for specific vehicles or machines?

The provided fitment preview includes several Caterpillar models, but the fitment information is not complete enough to guarantee compatibility. Confirm against part number CXS0048 and the listed mounting and dimensional details before ordering.
