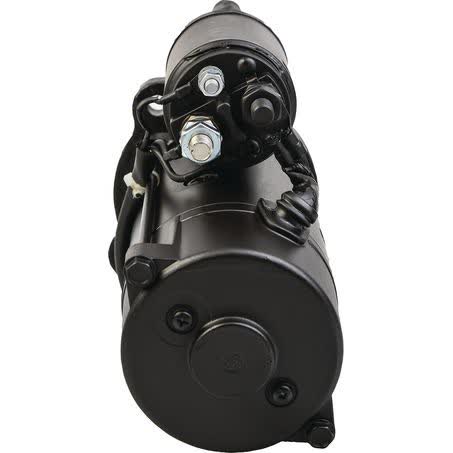

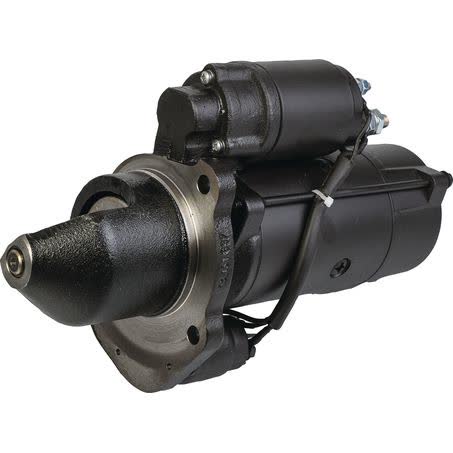

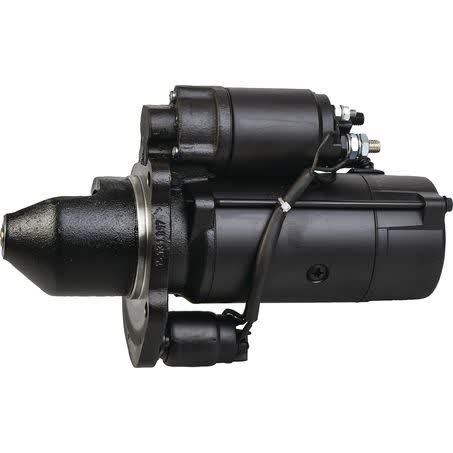

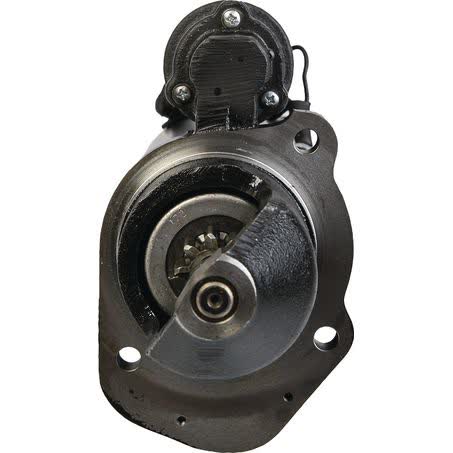

Mahle Starter Motor 12V 9 Tooth CW MS199

The Mahle MS199 starter motor is a new 12V unit with clockwise rotation, 9 teeth, and a 4.2kW power rating. It is listed as an Original Equipment part and is supplied as a single each unit, with a one year warranty.

Key physical details include 127mm mount centres A, 90mm mount centres B and C, an 89mm flange diameter, and a 320mm overall length. The pinion sits 48mm at rest, with a 34mm pinion diameter and 14.36 tooth pitch.

This starter motor is described as a gear reduction auxiliary solenoid type. It carries Mahle part number MS199 and OEM number 11.132.194, so those references are useful checkpoints when comparing against the original unit or an existing parts listing.

Key Features

• 12V starter motor
• Clockwise rotation
• 9 tooth pinion
• 4.2kW power rating
• New part
• Original Equipment part

Specifications

• Brand: Mahle
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 4.2kW
• Part No.: MS199
• OEM number: 11.132.194

Known fitment applications

• BELL B18D
• BELL B25
• FRANNA AT-15
• FRANNA AT-20
• FRANNA AT-22
• FRANNA MAC-25
• FREIGHTLINER CENTURY
• HITACHI AH250D

Application and Buying Notes

Before ordering, match the part number MS199 and OEM number 11.132.194 against the existing starter on the machine. The important physical checks here are the 12V system, clockwise rotation, 9 tooth pinion, 127mm mount centres A, and the 89mm flange diameter.

The starter is a 4.2kW unit with a gear reduction auxiliary solenoid layout, so it should be compared against the original starter style as well as the mounting dimensions. The mount hole diameter is 11mm, and the overall length is 320mm, which are both practical checks when confirming space and bracket alignment.

Fitment data supplied for this part covers a broad range of equipment makes and models, including Bell, Franna, Freightliner, Hitachi, Manitou, Mercedes-Benz, Normet, Ponsse, Sandvik and Tigercat. Even where the model name appears in the application list, the safest approach is still to confirm the exact starter configuration, because small differences in rotation, tooth count, mounting centres or pinion position can make a replacement unsuitable.

If you are replacing a failed starter, compare the old unit’s label, flange, mounting holes and pinion details before fitting the new one. A 9 tooth starter with 48mm pinion at rest will not suit every application that uses a similar looking housing, so the part number and dimensions matter as much as the vehicle or machine name.

The one year warranty applies to the supplied new part only. As with any electrical component, the rest of the starting system should be checked for battery condition, cable integrity and clean earth connections before installation, because an undersized cable or poor connection can create symptoms that are not caused by the starter itself.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS199 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 9, Pinion at Rest 48mm, Power Rating 4.2kW, Suits Unit Make Mahle, Note Gear Reduction Auxiliary Solenoid.

Additional published details for cross-checking include New / Reman. New, OEM Number 11.132.194, Bore O 1 11.2, Tooth Pitch 14.36, Connecting Angle [Degree] 125.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS199.

Mahle Starter Motor 12V 9Th CW. Part number MS199 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS199, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm suitability by matching Mahle part number MS199 and OEM number 11.132.194, then check voltage, rotation, tooth count, mounting centres, flange diameter and pinion dimensions against the removed unit and the machine application.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.

What is the rotation of this starter motor?

It is clockwise rotation, listed as CW. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The listed mounting dimensions are 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, with an 11mm mount hole diameter and an 89mm flange diameter. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.

What part numbers are provided for identification?

The Mahle part number is MS199 and the OEM number is 11.132.194. For this listing, part number MS199 is the main reference point. Listed voltage is 12. Published fitment references include BELL B18D, BELL B18D 2008, BELL B18D 2009. These details should still be checked against the original unit before ordering.
