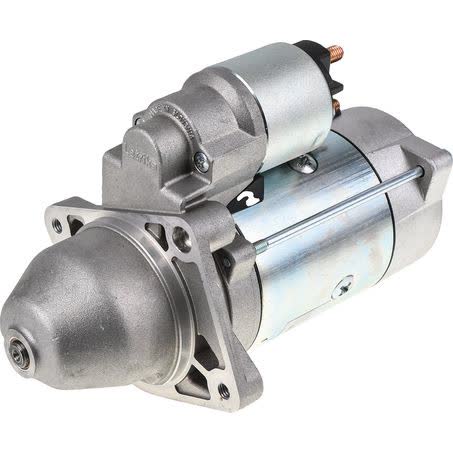

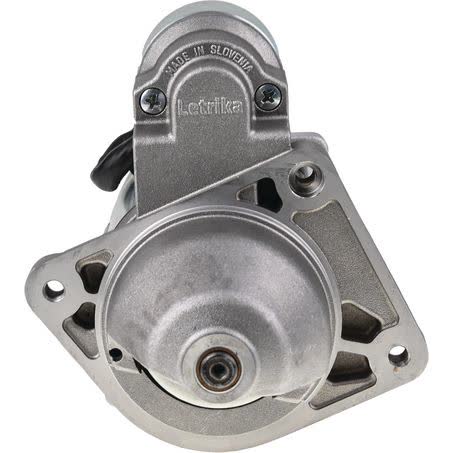

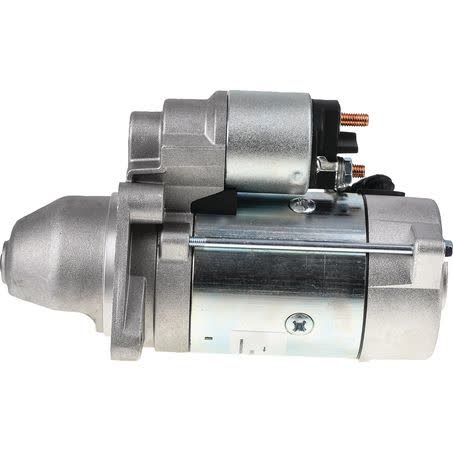

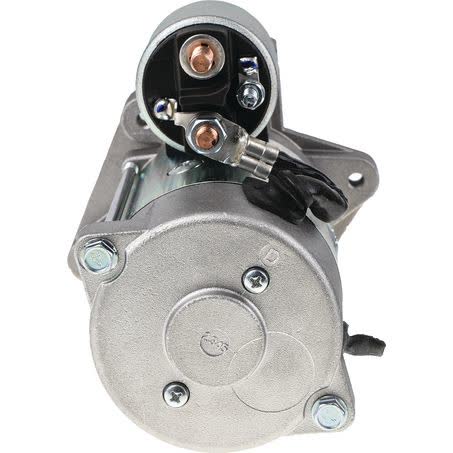

Mahle Starter Motor 12V 9 Tooth CW MS114

The Mahle MS114 starter motor is a 12V, clockwise-rotation unit with 9 teeth and a 2.6kW power rating. It is listed as a new starter motor with a reduction gear setup, which is an important detail when matching the unit to the correct application.

Key physical identifiers include a 3-hole starter mount, 82mm flange diameter, 241mm overall length, and M8x1.25 mount hole diameter. The pinion sits 27mm at rest, and the pinion diameter is 35.5mm, so checking the existing starter against these measurements is a practical way to confirm suitability.

This part is identified as Mahle part number MS114 and is supplied as an Original Equipment part. The listed vehicle application data points to Iveco Daily fitments across multiple model years, but the exact match still needs to be confirmed against the vehicle details and the existing unit.

For workshop or retail customers comparing starter replacements, the most useful checks here are voltage, rotation, tooth count, mount style, and the mount centre measurements of 122mm, 95mm, and 70mm. Those figures help separate this starter from similar-looking units that are not interchangeable.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation
• 2.6kW power rating
• Reduction gear design
• 3-hole starter mount

Specifications

• Brand: Mahle
• Part No.: MS114
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 9
• Power Rating: 2.6kW
• Starter Mount Type: 3 Hole

Verified fitment guidance

• IVECO DAILY
• IVECO DAILY 1999
• IVECO DAILY 2000
• IVECO DAILY 2001
• IVECO DAILY 2002
• IVECO DAILY 2003
• IVECO DAILY 2004
• IVECO DAILY 2005

Application and Buying Notes

Before ordering, compare the MS114 part number, 12V rating, clockwise rotation, and 9-tooth pinion against the starter already fitted to the vehicle. Those are the most reliable first checks when replacing a starter motor, especially where similar-looking units may differ in rotation, tooth count, or mounting pattern.

The mounting details matter just as much as the electrical specification. This unit uses a 3-hole starter mount with mount centres of 122mm, 95mm, and 70mm, plus an 82mm flange diameter and M8x1.25 mount hole diameter. If any of those dimensions differ from the removed starter, the unit should be checked carefully before purchase.

The reduction gear design and 2.6kW power rating are relevant when comparing like-for-like replacements, but they do not replace physical verification. A starter can share a nominal voltage and still differ in mount type, pinion position, or overall length, and this unit measures 241mm overall with a 35.5mm pinion diameter and 27mm pinion at rest.

The fitment information supplied points to Iveco Daily applications across a range of model years, but model naming alone is not enough to confirm interchangeability. Matching the original starter dimensions, tooth count, and Mahle MS114 identifier is the safest approach, particularly when dealing with commercial vehicles where specification changes can occur within the same model family.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS114 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 122mm, Mount Centres C 70mm, Number of Teeth 9, Pinion at Rest 27mm, Power Rating 2.6kW, Suits Unit Make Mahle, Note Reduction gear.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Bore O 1 8, Tooth Pitch 15.0, Connecting Angle [Degree] 33.0, Packaging length 31.8, Packaging height 13.50, Weight 5.14kg, Product Group 1 ROTATING ELECTRICAL, Part No. MS114, Brand MAHLE.

Mahle Starter Motor 12V 9Th CW. Part number MS114 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS114, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000, IVECO DAILY 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the Mahle MS114 part number, the 12V clockwise specification, and the measured mount and pinion dimensions against the vehicle and the existing starter before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MS114. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

The starter motor is clockwise rotation, listed as CW. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

Does this starter use a reduction gear?

Yes, it is noted as a reduction gear starter and the transmission type is listed as with reduction gear. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.

What vehicle application data is supplied?

The supplied fitment data points to Iveco Daily applications, including Iveco Daily 1999 through 2009. Fitment should still be confirmed against the part number and the physical measurements before ordering. For this listing, part number MS114 is the main reference point. Listed voltage is 12. Published fitment references include IVECO DAILY, IVECO DAILY 1999, IVECO DAILY 2000. These details should still be checked against the original unit before ordering.
