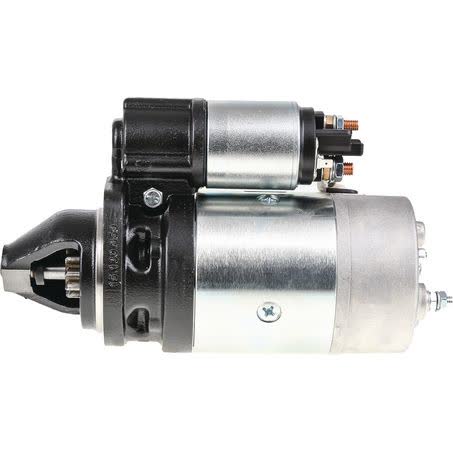

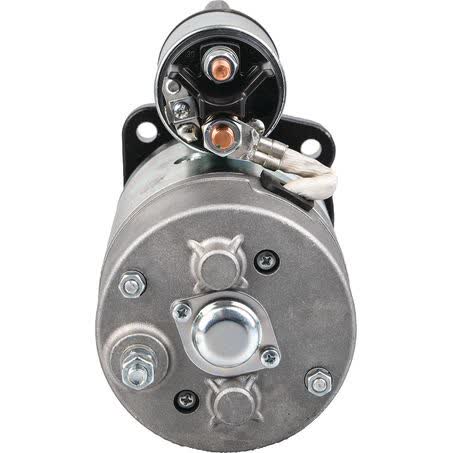

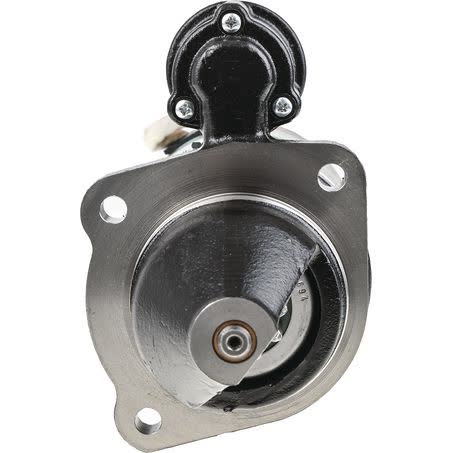

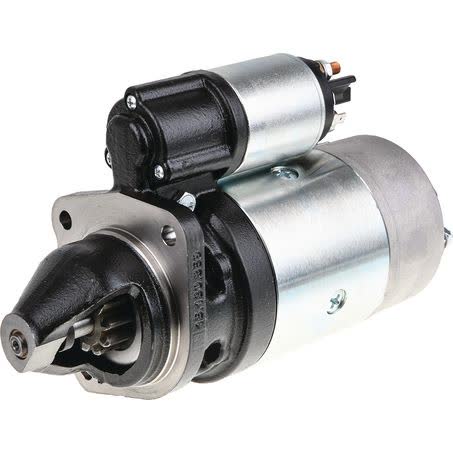

Mahle Starter Motor 12V 10 Tooth CW MS49

MAHLE starter motor, 12V, 10 tooth, clockwise rotation, part no. MS49. This is a new starter motor with a 2.7kW power rating, supplied as an each unit and identified with OEM number 11130631.

It is listed as an Original Equipment part and uses a 3 hole starter mount type with 3 mounting bores. Key physical details include 127mm mount centres A, 90mm mount centres B and 90mm mount centres C, with an 89mm flange diameter and 305mm overall length.

Other recorded dimensions include a 39mm pinion diameter, 28mm pinion at rest, 11mm mount hole diameter, and 31mm clamp with 31.0 flywheel depth. These measurements matter when checking clearance, mounting pattern and flywheel engagement before ordering.

Key Features

• New starter motor
• 12V electrical system
• 10 tooth pinion
• Clockwise rotation
• 2.7kW power rating
• Original Equipment part

Specifications

• Brand: MAHLE
• Product type: Starter Motor
• Voltage: 12
• Power rating: 2.7kW
• Rotation: CW
• Number of teeth: 10
• New / remanufactured: New
• Warranty: One Year

Verified application groups

• Aveling Barford HDC
• Bobcat 2400
• Bobcat 2410
• Bobcat 943
• Caterpillar 416
• Caterpillar 426
• Caterpillar 428
• Caterpillar 436

Application and Buying Notes

Before ordering, match the 12V specification, clockwise rotation, 10 tooth pinion and the MS49 part number against the existing unit. The mounting pattern also needs to line up, with 127mm mount centres A and 90mm mount centres B and C, plus a 3 hole starter mount and 11mm mounting bores.

The 305mm overall length, 89mm flange diameter and 39mm pinion diameter are practical checks when space around the bellhousing is tight. The listed 31.0 flywheel depth and 28mm pinion at rest are especially relevant where starter engagement has to match the flywheel setup closely.

This starter is recorded as an Original Equipment part and new, which makes the published dimensions and identifiers the safest way to compare it with the removed unit. If the old starter has any worn or unreadable markings, the OEM number 11130631 and part no. MS49 are the most useful references to confirm.

The fitment groups cover several industrial, agricultural and machine applications, including Bobcat, Caterpillar, Clark, Hyster, JCB, Landini, Manitou, Massey Ferguson, Ursus and Vermeer listings. Because grouped applications can vary by build and year, it is still important to check the exact application, mount pattern and starter rotation before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS49 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 28mm, Power Rating 2.7kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Clamp 31, Number of mounting bores 3, For flywheel depth 31.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS49, Brand MAHLE.

Mahle Starter Motor 12V 10Th CW. Part number MS49 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS49, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400, BOBCAT 2400 1990, BOBCAT 2400 1991, BOBCAT 2400 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by comparing part no. MS49, OEM number 11130631, 12V voltage, clockwise rotation, 10 tooth pinion, and the listed mounting and dimensional details against the existing starter and application.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

12V. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

Clockwise rotation, shown as CW. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.

What are the main mounting details?

It has a 3 hole starter mount, 3 mounting bores, 127mm mount centres A, 90mm mount centres B and 90mm mount centres C, with 11mm mounting bores. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.

Which part numbers are listed for identification?

The listed part no. is MS49 and the OEM number is 11130631. For this listing, part number MS49 is the main reference point. Listed voltage is 12. Published fitment references include AVELING BARFORD HDC, AVELING BARFORD HDC 1998, BOBCAT 2400. These details should still be checked against the original unit before ordering.
