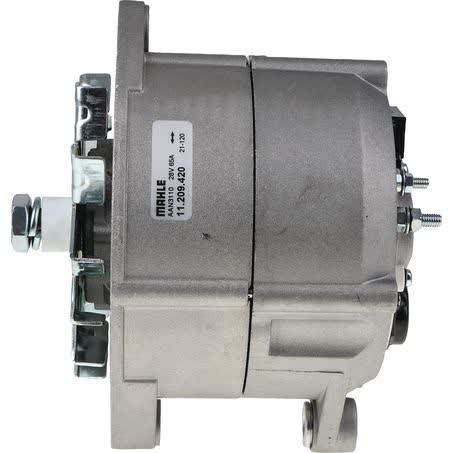

Mahle Alternator 24V 65A MG494

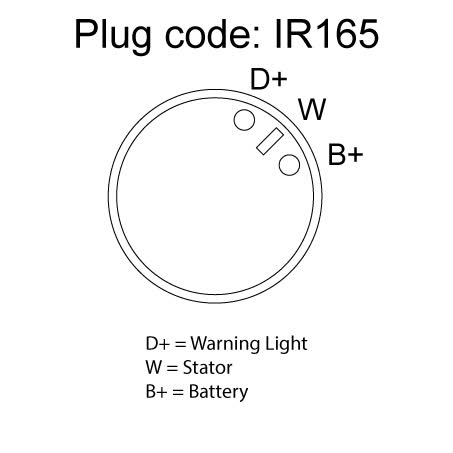

The MAHLE Alternator MG494 is a new 24V, 65A alternator with an internal regulator, designed with a twin leg mount and without a belt pulley. Key identifiers include OEM number 11209420, part no. MG494, and pin code IR165, which are useful when checking interchange against the vehicle or existing unit.

This alternator has a clockwise rotation, a 17mm shaft diameter, a 67mm inside mounting leg measurement, and 67.0mm mounting bore distance. The pivot hole diameter is listed as 11/M10x1.5, with an adjusting hole diameter of 11 and mounting points diameter of 91.0. Those dimensions matter when confirming the physical match before ordering.

The unit is listed as a MAHLE alternator and is marked as new, not remanufactured. It also carries a one year warranty and features compliance with international standards for electromagnetic compatibility, along with ISO 9001 certification and manufacture using the latest technologies and materials.

Key Features

• 24V alternator with 65A output
• Internal regulator fitted
• Twin leg mounting style
• Clockwise rotation
• Supplied without belt pulley
• New unit with one year warranty

Specifications

• Brand: MAHLE
• Product type: Alternator
• Voltage: 24V
• Power rating: 65A
• Alternator charge current: 65A
• Regulator type: Internal
• Rotation: Clockwise (CW)
• Mount: Twin leg

Fitment guidance

• Listed fitment includes SCANIA 3 - SERIES
• Listed fitment includes SCANIA 3 - SERIES BUS
• Listed fitment includes SCANIA 4 - SERIES
• Listed fitment includes T - SERIES
• Fitment preview also references G and R applications
• Several SCANIA 3 - SERIES year references are shown, including 1987 through 1997
• T - SERIES references shown include 2004, 2007, 2009 and 2012

Application and Buying Notes

Before buying, compare the part number MG494, OEM number 11209420, and pin code IR165 with the alternator already fitted to the vehicle. Those identifiers are often the most reliable starting point when matching a replacement alternator, especially where several units may appear similar externally.

The physical mounting details should also be checked carefully. This unit uses a twin leg mount, 67mm inside mounting legs, 67.0mm mounting bores distance, a 91.0 mounting points diameter, and an 11/M10x1.5 pivot hole diameter. If those dimensions do not match the original setup, the alternator may not install correctly.

Electrical specification is just as important as the bracket pattern. This alternator is 24V with a 65A output and an internal regulator, so it needs to suit the vehicle’s charging system and connector arrangement. The connector / clamp is listed as W, and the unit is supplied without a belt pulley, so the pulley arrangement on the vehicle should be checked before purchase.

Rotation and shaft details should be confirmed when replacing a charging unit. This alternator is clockwise rotation with a 17mm shaft diameter, and those details need to align with the application and the drive setup. If there is any uncertainty, compare the old unit directly against these measurements rather than relying on appearance alone.

For vehicles with listed SCANIA and T - SERIES applications, treat the fitment information as a guide and confirm against the exact vehicle, engine arrangement, and existing alternator. Year references appear in the fitment listing for SCANIA 3 - SERIES and T - SERIES applications, but the safest approach is to verify the identifiers and measurements above before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG494 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 67mm, Pivot Hole Diameter 11/M10x1.5, Pulley Section Not Applicable, Rotation CW, Suits Unit Make Mahle, Alternator Mount Twin Leg, OEM Number 11209420.

Additional published details for cross-checking include Pulleys without belt pulley, Mounting Bores Distance 67.0, Packaging length 24.8, Packaging height 17.50, Product Group 2 ALTERNATORS, Part No. MG494, Brand MAHLE, Description Mahle Alternator 24V 65A, Adjusting Hole Diameter 11.

Mahle Alternator 24V 65A. Part number MG494 should be checked first. Listed voltage is 24. Listed output rating is 65. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG494, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 65 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using part number MG494, OEM number 11209420, pin code IR165, and the listed mounting and electrical specifications before purchase. Fitment should always be checked against the existing alternator and vehicle application details.

FAQ

What is the voltage and output of this alternator?

It is a 24V alternator with a 65A power rating and a listed alternator charge current of 65A.

Does this alternator have an internal regulator?

Yes. The regulator type is listed as internal.

Is a pulley included?

No. The alternator is listed as without belt pulley.

What mounting style does it use?

It uses a twin leg alternator mount, with inside mounting legs of 67mm and mounting bores distance of 67.0mm.

Which identifiers should be checked for matching?

The main identifiers listed are part no. MG494, OEM number 11209420, and pin code IR165.

What vehicle fitment is listed?

The fitment information references SCANIA 3 - SERIES, SCANIA 3 - SERIES BUS, SCANIA 4 - SERIES, T - SERIES, and also preview references G and R applications. Always confirm against the specific vehicle and existing unit before ordering.
