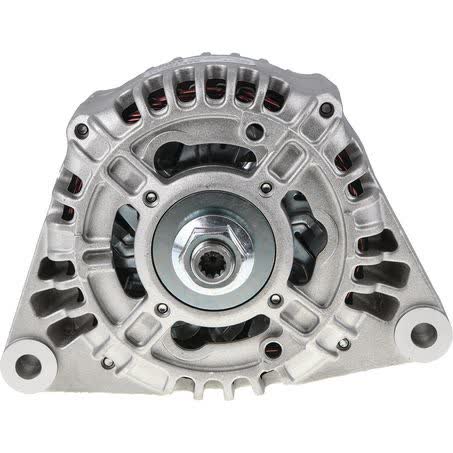

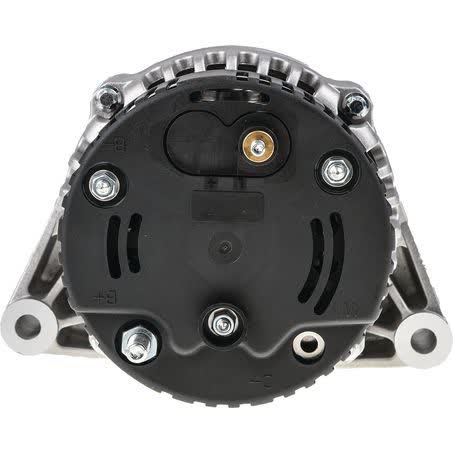

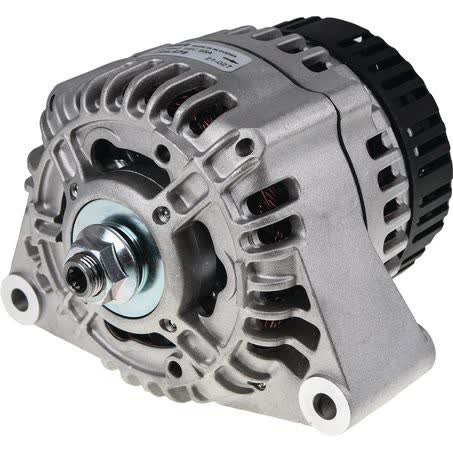

Mahle Alternator 12V 95A MG264

The Mahle MG264 alternator is a new 12V unit rated at 95A, supplied as each and identified by OEM number 11204478. It is listed with an internal regulator, clockwise rotation, and no belt pulley, so the key checks are voltage, amperage, mounting style and pulley requirements before ordering.

This alternator is described as a single-leg mount design with 2 mounting bores, 56mm mount leg thickness, 56mm mounting bores distance, and a 10mm pivot hole diameter. The shaft diameter is 17mm, and the adjusting hole diameter is also 10mm, which are important dimensions to confirm against the original unit.

The unit is a Mahle-branded rotating electrical component, new rather than remanufactured, with a one-year warranty. It is listed under part number MG264 and pin code IR200, which gives a practical reference point when comparing the part against the vehicle’s original alternator or catalogue listing.

Key Features

• New 12V alternator with 95A power rating
• Internal regulator
• Clockwise rotation
• Single-leg mount design
• Supplied without belt pulley
• One-year warranty

Specifications

• Brand: Mahle
• Part number: MG264
• OEM number: 11204478
• Voltage: 12V
• Power rating: 95A
• Alternator charge current: 90A
• Rotation: CW
• Regulator type: Internal

Known application guidance

• John Deere 2054
• John Deere 6415
• John Deere 6615
• John Deere Series 6
• John Deere Series 6010
• John Deere Series 6020
• John Deere Series 6030
• John Deere Series 7

Application and Buying Notes

Before ordering, compare the part number MG264 and OEM number 11204478 against the alternator already fitted to the machine. The electrical rating is 12V and 95A, while the listed alternator charge current is 90A, so the replacement should be checked for both voltage and output before it is fitted.

The physical mounting details matter just as much as the electrical rating. This unit is a single-leg mount alternator with 2 mounting bores, 56mm mount leg thickness, 56mm mounting bores distance, and 10mm pivot and adjusting holes. If those dimensions do not line up with the original unit, fitment should be rechecked before purchase.

This alternator is supplied without a belt pulley and with clockwise rotation, so the pulley arrangement on the vehicle needs to match. The shaft diameter is 17mm and the regulator is internal, which are useful checkpoints when comparing against the removed alternator or the vehicle’s service information.

The application data provided includes John Deere 2054, 6415, 6615 and several John Deere series groups, but these should still be treated as application references rather than a substitute for checking the exact part number and mounting layout. A listed model family can include more than one alternator arrangement, so matching the original unit remains the safest approach.

If the existing alternator is damaged or missing its label, use the physical measurements, rotation direction, pulley requirement and connector style reference before buying. The pin code IR200 and OEM number 11204478 are the most direct identifiers to compare when confirming the replacement part.

The unit is sold as each and carries a one-year warranty. For a commercial or farm machine, that makes it worth confirming the fitment details carefully up front, especially where downtime matters and removing the alternator twice is inconvenient.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG264 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 56mm, Pivot Hole Diameter 10, Pulley Section Not Applicable, Rotation CW, Suits Unit Make Mahle, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Alternator Charge Current [A] 90, Number of mounting bores 2, Mounting points diameter 90, Packaging width 18.60, Net Weight 5549, Product Group 1 ROTATING ELECTRICAL, Part No. MG264, Brand MAHLE, Description Mahle Alternator 12V 95A, Adjusting Hole Diameter 10.

Mahle Alternator 12V 95A. Part number MG264 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG264, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number MG264, OEM number 11204478, voltage, amperage, mounting dimensions, rotation and pulley requirements before purchase. Application references are provided for guidance only and should be matched against the original alternator and vehicle details.

FAQ

What is the voltage and output of this alternator?

It is a 12V alternator with a 95A power rating. The listed alternator charge current is 90A.

Is this a new or remanufactured unit?

This alternator is listed as new, not remanufactured.

Does it come with a pulley?

No. The pulley listing is without belt pulley, so the existing pulley arrangement needs to be checked against the vehicle setup.

What mounting style does it use?

It is a single-leg mount alternator with 2 mounting bores. The mount leg thickness is 56mm and the mounting bores distance is 56mm.

What regulator type does it have?

It has an internal regulator.

Which part numbers should I check against?

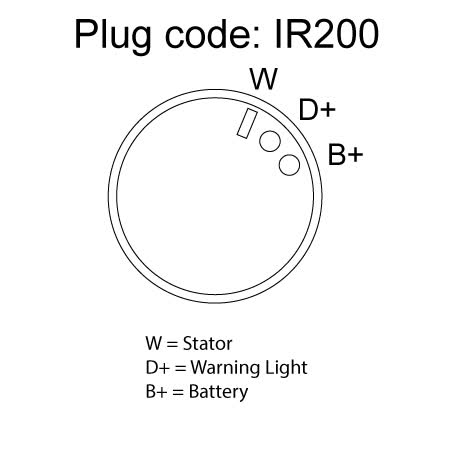

The main part number is MG264 and the OEM number listed is 11204478. The pin code is IR200.
