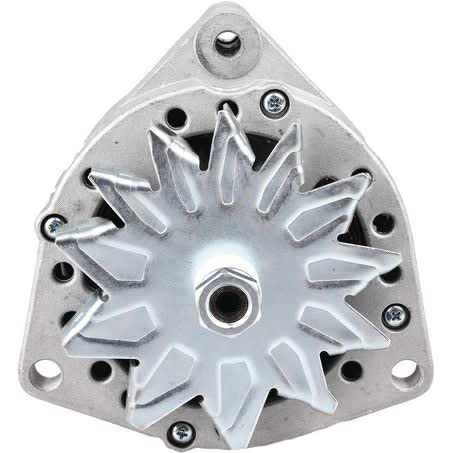

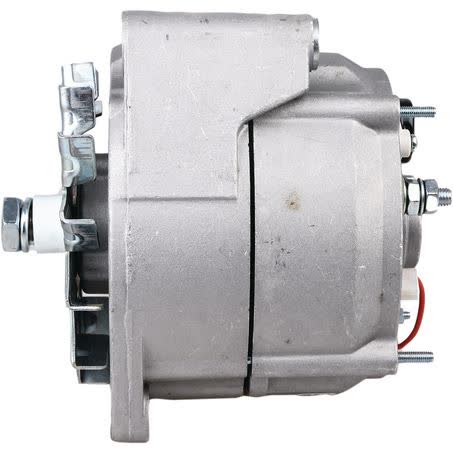

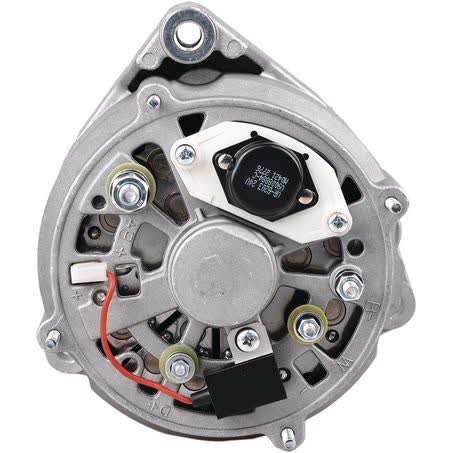

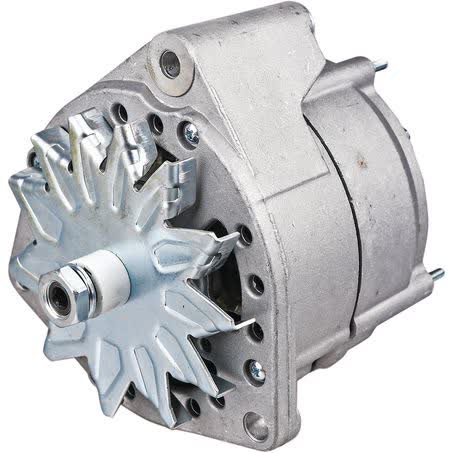

Mahle Alternator 24V 55A MG460

The Mahle alternator MG460 is a new 24V unit with a 55A power rating, supplied as each. It is listed with a single leg alternator mount, internal regulator, and CW rotation, which are the key details to check before ordering for a 24V charging system.

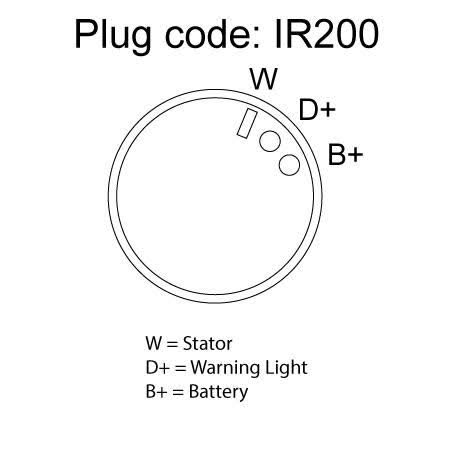

This alternator is identified with connector/clamp W, pin code IR200, and no belt pulley fitted. The mounting details also matter: 10.2 mm mount hole diameter, 12 mm adjusting hole diameter, 80.0 mm mounting bores distance, 93.0 mm mounting points diameter, and 156 mm mount centre to centre.

Mahle lists this unit as part no. MG460 and describes it as a new rotating electrical component built to international electromagnetic compatibility standards, manufactured with current materials and technologies, and produced under ISO 9001 certification. A one year warranty is stated for the unit.

Fitment information supplied for this alternator includes DAF, MAN, and Mercedes-Benz applications, but the exact vehicle match still needs to be checked against the part number, mounting arrangement, connector style, and the 24V 55A specification before purchase.

Key Features

• 24V alternator with 55A charge current
• New unit, supplied each
• Internal regulator
• Single leg alternator mount
• CW rotation
• Connector/clamp W

Specifications

• Brand: Mahle
• Product type: Alternator
• Voltage: 24V
• Power rating: 55A
• Alternator charge current: 55A
• Unit of measure: Each
• Condition: New
• Warranty: One year

Fitment Guidance

• DAF 45
• DAF 85 CF
• MAN 26.281
• MAN 26.402
• MAN 26.403
• MAN 26.41#
• MAN 26.464
• MAN 26.482

Application and Buying Notes

Before ordering, compare the part number MG460 and the electrical rating of 24V 55A with the alternator already fitted to the vehicle. The wrong voltage or charge current will not be a suitable replacement, even if the alternator appears similar externally.

Check the mounting layout carefully. This unit uses a single leg mount, 10.2 mm mount holes, a 12 mm adjusting hole, and no belt pulley. Those details need to line up with the existing bracket, pulley arrangement, and belt drive on the vehicle.

The connector and regulator details are just as important as the physical size. This alternator uses connector/clamp W, pin code IR200, an internal regulator, and CW rotation. Those points should be matched to the original unit or confirmed against the application requirements before fitting.

Where fitment is listed across DAF, MAN, and Mercedes-Benz applications, the specific series or model year should still be checked against the vehicle and the existing part number. Heavy vehicle electrical parts can vary within the same model range, so confirmation by dimensions and identifiers is the safest approach.

This alternator is a new Mahle unit and is sold individually. If the existing alternator is damaged or missing, use the mounting measurements, rotation, connector style, and belt pulley arrangement as your buying checklist rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG460 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 10.2, Pin Code IR200, Regulator Type Internal, Suits Unit Make Mahle, Alternator Mount Single Leg, New / Reman. New, Pulleys without belt pulley.

Additional published details for cross-checking include Mounting Bores Distance 80.0, Mounting points diameter 93.0, Product Group 1 ROTATING ELECTRICAL, Part No. MG460, Brand MAHLE, Description Mahle Alternator 24V 55A, Adjusting Hole Diameter 12, Mount Leg Thickness 80mm, Power Rating (Amp) 55, Rotation CW.

Mahle Alternator 24V 55A. Part number MG460 should be checked first. Listed voltage is 24. Listed output rating is 55. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG460, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 55 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAF 45, DAF 45 1992, DAF 45 1993, DAF 45 1994, MAN 26.281, MAN 26.281 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number MG460, the 24V 55A rating, single leg mounting, connector/clamp W, pin code IR200, CW rotation, and the vehicle application details before purchase.

FAQ

What is the part number for this alternator?

The listed part number is MG460.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 24V alternator with a 55A power rating and 55A charge current.

Does it have an internal or external regulator?

It has an internal regulator.

Is a belt pulley included?

No. It is listed as without belt pulley.

What vehicle makes are shown in the fitment information?

The supplied fitment information includes DAF, MAN, and Mercedes-Benz applications, including DAF 45, DAF 85 CF, MAN F2000, MAN F90, MAN Bus, and Mercedes-Benz LK/LN2 among the listed ranges.
