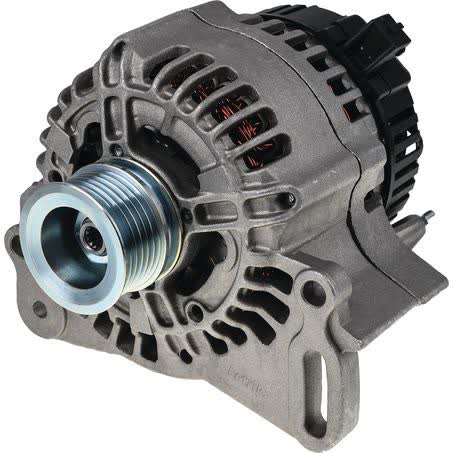

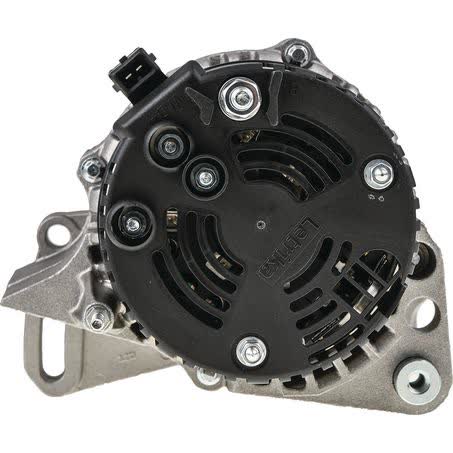

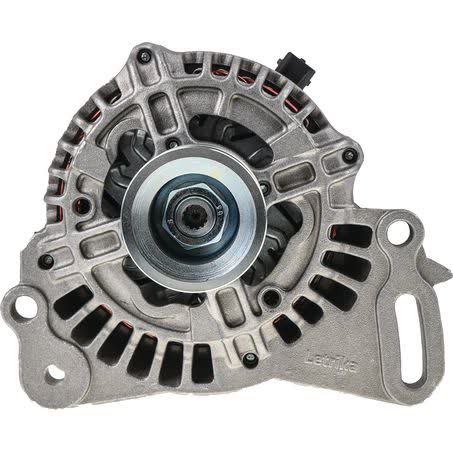

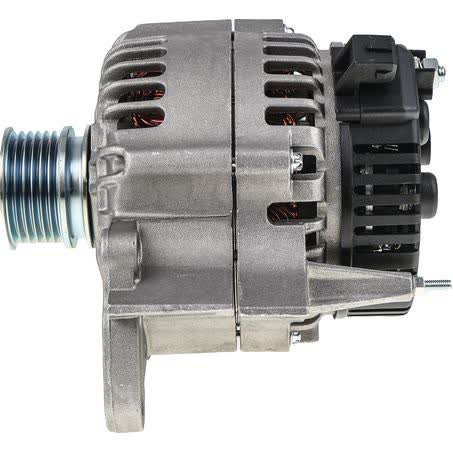

Mahle Alternator 12V 90A MG252

The MAHLE Alternator 12V 90A, part number MG252, is a new replacement alternator supplied as each unit. It is a 12 volt, 90 amp alternator with an internal regulator, a clockwise rotation, and a 6 groove V-ribbed belt pulley.

Key mounting details include twin leg alternator mounting, 60mm inside mounting legs, 60.0mm mounting bores distance, and a 147mm mount centre to centre. The mounting bore specification is 8 / M8x1.25, with an adjusting hole diameter of 10mm.

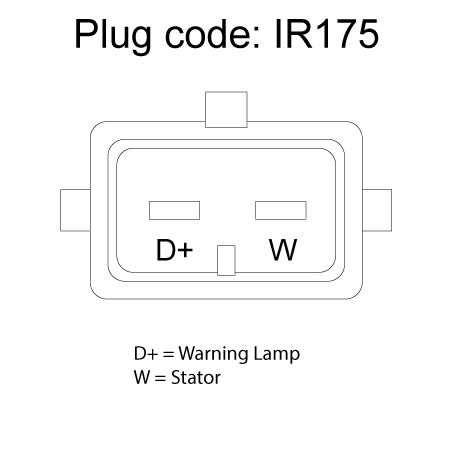

This alternator is identified with OEM number 11201990 and pin code IR175. It is listed as suitable for Mahle unit make, and the pulley outside diameter is 50mm. The unit comes with a one year warranty.

Key Features

• 12V alternator with 90A charge current
• Internal regulator
• Clockwise rotation
• 6 groove V-ribbed belt pulley
• Twin leg alternator mount
• New unit, sold each

Specifications

• Brand: MAHLE
• Part No.: MG252
• OEM Number: 11201990
• Voltage: 12V
• Charge current: 90A
• Power rating: 90A
• Regulator type: Internal
• Rotation: CW

Confirmed fitment references

• SEAT Cordoba
• SEAT Ibiza
• SEAT Toledo
• Volkswagen Golf
• Volkswagen Passat
• Volkswagen Transporter
• Volkswagen Transporter / Caravelle
• Volkswagen Vento

Application and Buying Notes

Before ordering, match the part number MG252 and OEM number 11201990 against the alternator already fitted to the vehicle. The mounting layout matters here: this unit is a twin leg alternator with 60mm inside mounting legs, 60.0mm mounting bores distance, and a 147mm mount centre to centre.

The electrical setup should also be checked carefully. This alternator is 12V with a 90A charge current, an internal regulator, and pin code IR175, so the existing charging system arrangement needs to align with those details rather than relying on appearance alone.

The pulley and belt arrangement are equally important. This unit uses a 6 groove V-ribbed belt pulley, has a 50mm pulley outside diameter, and is listed with six belts. If the belt profile, pulley section, or bracket spacing differs from the removed unit, stop and confirm before fitting.

When checking replacement suitability, compare the mounting hole diameter of 8 / M8x1.25 and the 10mm adjusting hole diameter with the vehicle’s existing alternator bracket and fasteners. Small differences in these dimensions can affect fitment even when the alternator looks similar.

For the listed Volkswagen and SEAT applications, use the vehicle details as a guide only and confirm by part number and application details before purchase. The same model range can have different charging components depending on build and equipment, so the safest check is still the removed unit’s identifiers and mounting dimensions.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG252 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 60mm, Pin Code IR175, Pulley Outside Diameter 50mm, Regulator Type Internal, Suits Unit Make Mahle, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Alternator Charge Current [A] 90, Mounting Bores Distance 60.0, Number of belts 6, Packaging length 24.8, Packaging height 17.50, Product Group 2 ALTERNATORS, Part No. MG252, Brand MAHLE, Description Mahle Alternator 12V 90A.

Mahle Alternator 12V 90A. Part number MG252 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG252, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm compatibility by matching part number MG252, OEM number 11201990, voltage, pulley style, mounting dimensions, and application details against the vehicle before purchase.

FAQ

What is the voltage and output of this alternator?

It is a 12V alternator with a 90A charge current and a 90A power rating. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

This unit is listed as new and is sold individually as each. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

What pulley type does it use?

It uses a 6 groove V-ribbed belt pulley, with a 50mm pulley outside diameter. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Which part numbers are provided for checking fitment?

The listed part number is MG252 and the OEM number is 11201990. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.

Which vehicle families are referenced for fitment?

The fitment references include SEAT Cordoba, SEAT Ibiza, SEAT Toledo, Volkswagen Golf, Volkswagen Passat, Volkswagen Transporter, Volkswagen Transporter / Caravelle, and Volkswagen Vento. Confirm the exact application by part number and mounting details before ordering. For this listing, part number MG252 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include SEAT CORDOBA, SEAT CORDOBA 1993, SEAT CORDOBA 1994. These details should still be checked against the original unit before ordering.
