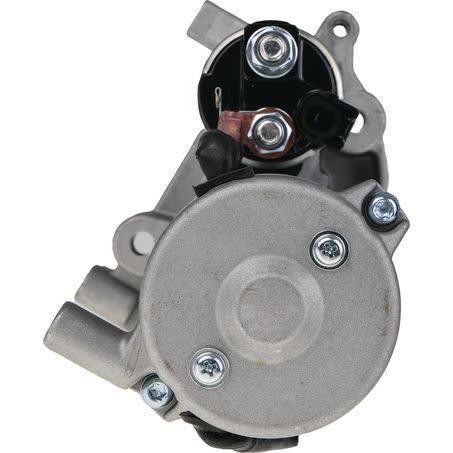

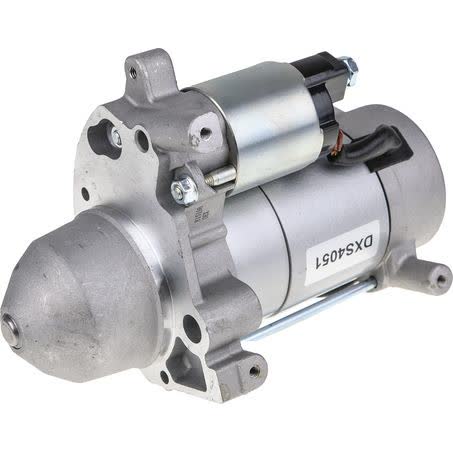

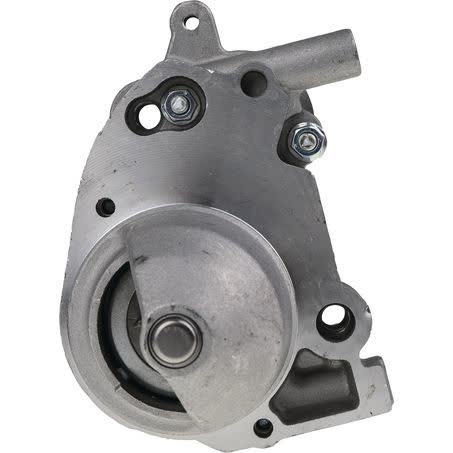

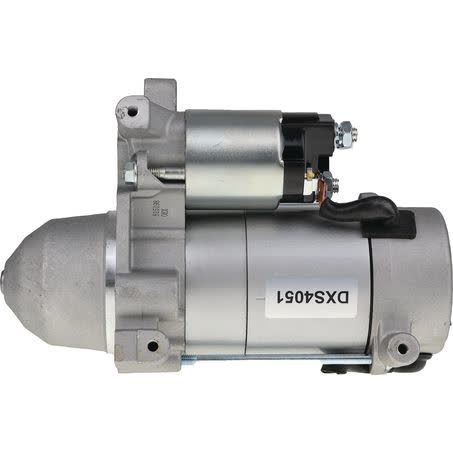

OEX Starter Motor 12V 2.0KW 9 Tooth CW Denso Style DXS4051

This OEX starter motor is a new 12V unit with a 2.0kW power rating, 9-tooth pinion, and clockwise rotation. It is listed as Denso style and suits Denso applications, with part number DXS4051 for identification when matching the starter to the vehicle or the original unit.

Key dimensions on this starter motor include an overall length of 229mm, flange diameter of 74mm, mount hole diameter of M10, and mount centre to centre of 91mm. The pinion measures 29mm in diameter, with the pinion at rest listed at 26mm, which are useful checks when comparing against the existing starter.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. This starter motor is backed by a three year warranty and supplied as a single each unit, making the part number, mounting style, and dimensions the main points to confirm before purchase.

Key Features

• New starter motor
• 12V electrical system
• 2.0kW power rating
• 9-tooth pinion
• Clockwise rotation
• Denso style / suits Denso unit make

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: DXS4051
• Voltage: 12V
• Power rating: 2.0kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: Pad

Fitment information

• Known applications include Lexus GS.
• Known applications include Toyota Crown.
• Fitment data provided also references Lexus IS, Lexus LC, Lexus LS and Lexus RC.
• Year references in the supplied fitment include Lexus GS from 2007 through 2020 in the preview, and Toyota Crown from 2009 through 2012 in the preview.

Application and Buying Notes

When checking this starter motor, start with the part number DXS4051, then compare the mounting style, 12V rating, 9-tooth pinion, and clockwise rotation against the existing unit. The pad mount design, M10 mount hole diameter, 91mm mount centre to centre, and 74mm flange diameter are the main physical checks that help confirm whether the starter will line up correctly.

The listed Denso style and suits unit make of Denso are important because starter motors are often matched by the original unit type as much as by the vehicle badge. The 229mm overall length, 29mm pinion diameter, and 26mm pinion at rest give you further reference points if the old starter is available for comparison.

This starter motor is a new unit with a 2.0kW power rating and 4.2kg weight. Those figures are useful when comparing electrical capacity and physical size, but they should not replace an application check. If the old starter is missing, damaged, or unreadable, use the part number, mounting pattern, rotation, tooth count, and Denso application details together before ordering.

The supplied fitment data points to Lexus GS and Toyota Crown applications, with additional Lexus model families referenced in the broader fitment list. Even where a vehicle family appears in the fitment data, exact engine and build details still matter for starters, so confirm the match carefully rather than relying on make alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4051 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Hole Diameter M10, Overall Length 229mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 91mm, Starter Mount Type Pad.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS4051, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Number of Teeth 9, Pinion at Rest 26mm, Power Rating 2.0kW, Suits Unit Make Denso.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4051 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4051, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008, LEXUS GS 2009, TOYOTA CROWN, TOYOTA CROWN 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number DXS4051, the 12V 9-tooth clockwise specification, Denso style mounting details, and the physical measurements before ordering. Vehicle fitment should be checked against the exact application details for the vehicle you are working on.

FAQ

What is the part number for this starter motor?

The part number is DXS4051. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

The rotation is clockwise, listed as CW. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It uses a pad mount starter design. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

The listed warranty is three years. For this listing, part number DXS4051 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2007, LEXUS GS 2008. These details should still be checked against the original unit before ordering.
