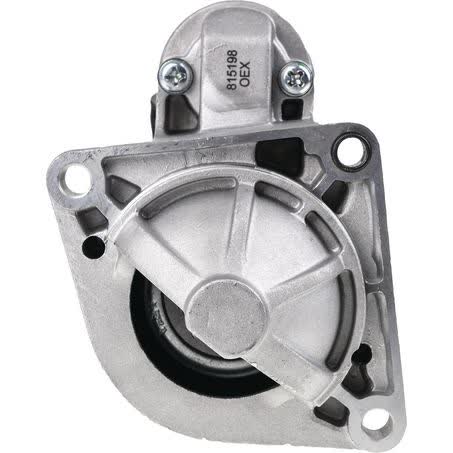

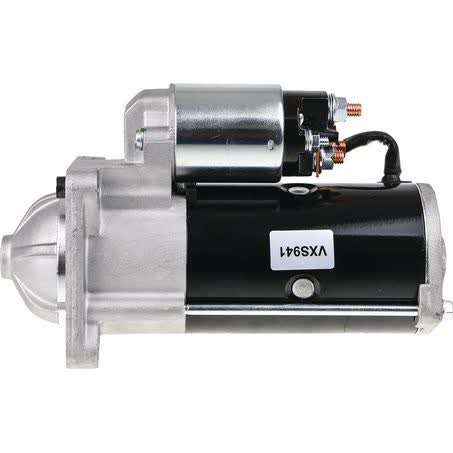

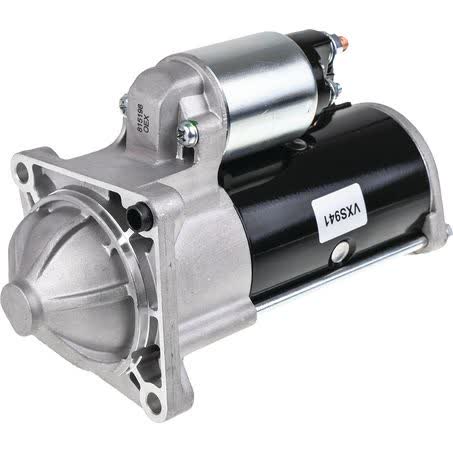

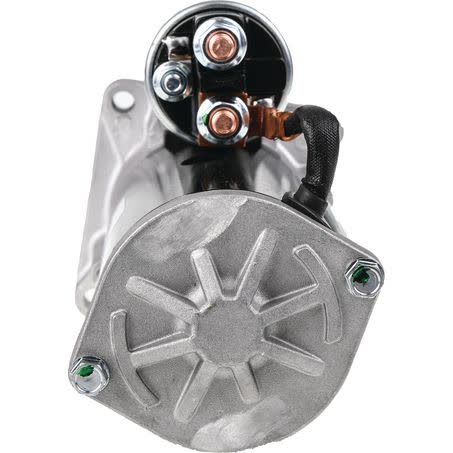

OEX Starter Motor 12V 9 Tooth CW Valeo Style VXS941

The OEX Starter Motor VXS941 is a new 12V starter motor in a 9 tooth, clockwise rotation configuration, built in Valeo style with a 3 hole starter mount. Key dimensions for checking against the original unit include 116mm mount centres A, 82mm mount centres C, 82mm flange diameter, and an overall length of 232mm.

This starter motor suits a Valeo application and uses a 29mm pinion diameter with 9mm mount hole diameter. The pinion at rest measures 3mm, which is a useful confirmation point when comparing the replacement unit to the vehicle's existing starter arrangement.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with manufacture from ISO certified factories. This unit is supplied new, weighs 4.3kg, and is covered by a one year warranty.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Valeo style unit
• 3 hole starter mount
• New unit

Specifications

• Part No.: VXS941
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A: 116mm

Verified fitment

• LDV V80
• LDV V80 2013
• LDV V80 2015
• LDV V80 2016
• LDV V80 2017
• LDV V80 2018
• LDV V80 2019
• LDV V80 2020

Application and Buying Notes

Before ordering, compare the part number VXS941, the 12V rating, and the 9 tooth clockwise layout with the starter already fitted to the vehicle. The most useful physical checks are the 116mm mount centres A, 82mm mount centres C, 82mm flange diameter, 232mm overall length, and 29mm pinion diameter.

This unit is listed as Valeo style and suits a Valeo application, so matching the existing starter type matters as much as matching the vehicle model. If the original starter has a different mount pattern, pinion count, rotation direction, or overall length, it is not the same part.

The confirmed fitment information supplied for this starter motor points to LDV V80 applications across multiple model years. Even with that fitment detail, it is still best to confirm the vehicle by part number and physical dimensions, especially where the vehicle has had previous electrical repairs or a starter replacement.

A starter motor is a direct-fit component only when the electrical and mechanical points line up correctly. Check the 3 hole starter mount, 9mm mount hole diameter, and the pinion at rest measurement of 3mm before purchase. Those details help reduce the risk of ordering a starter that looks close but does not match the original assembly.

For workshop or fleet use, the 4.3kg weight and new condition are practical points to note when handling, fitting, and comparing with a removed unit. The one year warranty provides a clear time frame for cover, but it does not replace the need to verify the application before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS941 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 116mm, Mount Centres C 82mm, Number of Teeth 9, Pinion at Rest 3mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS941, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo Style, Flange Diameter 82mm, Mount Centres B 82mm, Mount Hole Diameter 9, Overall Length 232mm, Pinion Diameter 29mm.

OEX Starter Motor 12V 9Th CW Valeo Style. Part number VXS941 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS941, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number VXS941, the 12V 9 tooth clockwise specification, the Valeo style/application detail, and the listed mounting and dimensional measurements before purchase.

FAQ

What is the part number for this starter motor?

The part number is VXS941. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.

What vehicle fitment is listed for this starter motor?

The supplied fitment information lists LDV V80 applications, including model years 2013, 2015, 2016, 2017, 2018, 2019, and 2020. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.

What are the key mounting measurements?

The key measurements listed are 116mm mount centres A, 82mm mount centres C, 82mm flange diameter, and a 3 hole starter mount with 9mm mount hole diameter. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

It is listed as new. For this listing, part number VXS941 is the main reference point. Listed voltage is 12. Published fitment references include LDV V80, LDV V80 2013, LDV V80 2015. These details should still be checked against the original unit before ordering.
