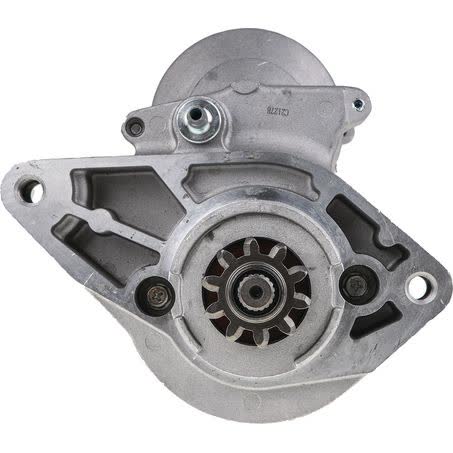

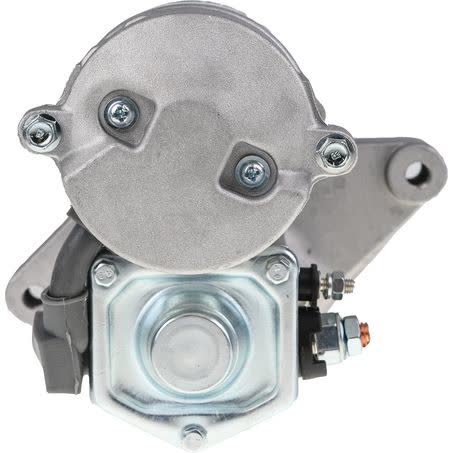

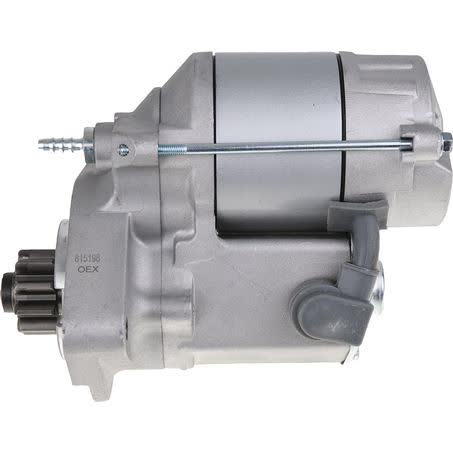

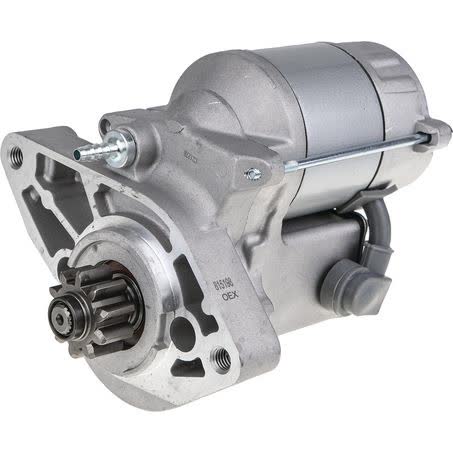

OEX Starter Motor 12V 11TH CW Denso Style DXS4052

The OEX Starter Motor DXS4052 is a new 12V starter motor with 11 teeth, clockwise rotation, and a Denso style / Denso suitment profile. It is listed as a 2 hole mount starter with M10x1.5 mounting holes, a 62mm flange diameter, and 142mm mount centre to centre.

Key physical details for checking the unit against your original starter include an overall length of 190mm, a 38mm pinion diameter, and a pinion at rest measurement of 33mm. The unit weighs 3.9kg and is supplied as a new starter motor, not remanufactured.

OEX notes that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. This starter motor is backed by a three year warranty, which gives a useful level of purchase confidence when the part number and application details match your vehicle.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style / suits Denso units
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: DXS4052
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Denso
• Starter mount type: 2 hole

Fitment guidance

• Supported fitment data includes Jaguar XF, Jaguar XJ, Jaguar XK, Land Rover Discovery, and Land Rover Range Rover applications.
• Listed preview applications include Jaguar XF 2009 to 2015, Jaguar XJ 2009 to 2011, Land Rover Discovery 2009 to 2013, and Land Rover Range Rover 2009 to 2012.

Application and Buying Notes

Before ordering, compare the part number DXS4052, the 12V rating, the 11 tooth count, and the clockwise rotation with the starter removed from your vehicle. The mount pattern also matters: this unit is a 2 hole starter with M10x1.5 mount holes and 142mm centre to centre.

Physical checks are just as important as the electrical details. Confirm the 62mm flange diameter, 190mm overall length, 38mm pinion diameter, and 33mm pinion at rest against the original starter, especially where access is tight or the original unit has been replaced previously.

The listed applications cover several Jaguar and Land Rover models, but engine and build variation can affect starter selection. If your vehicle has been fitted with a non-original part before, the safest approach is to match the part number and the measured dimensions rather than relying on the badge alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4052 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Hole Diameter M10x1.5, Overall Length 190mm, Pinion Diameter 38mm, Suits Unit Make Denso, Mount Cnt to Cnt 142mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS4052, Brand OEX, Description OEX Starter Motor 12V 11Th CW Denso Style, Flange Diameter 62mm, Number of Teeth 11, Pinion at Rest 33mm, Rotation CW, Voltage 12, New / Reman. New.

OEX Starter Motor 12V 11Th CW Denso Style. Part number DXS4052 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4052, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010, JAGUAR XF 2011, LAND ROVER DISCOVERY, LAND ROVER DISCOVERY 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Three Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number DXS4052, 12V electrical rating, 11 tooth count, clockwise rotation, and the listed mounting and dimension details against the original starter and vehicle application.

FAQ

What is the part number for this starter motor?

The part number is DXS4052. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It is a 2 hole starter with M10x1.5 mount holes and 142mm mount centre to centre. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.

Which vehicles are shown in the fitment data?

The fitment data includes Jaguar XF, Jaguar XJ, Jaguar XK, Land Rover Discovery, and Land Rover Range Rover applications, with preview years shown for some of those models. For this listing, part number DXS4052 is the main reference point. Listed voltage is 12. Published fitment references include JAGUAR XF, JAGUAR XF 2009, JAGUAR XF 2010. These details should still be checked against the original unit before ordering.
