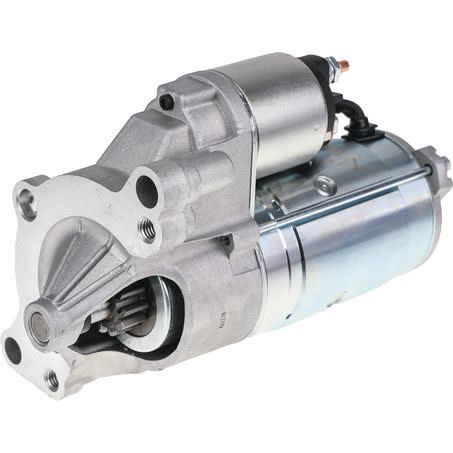

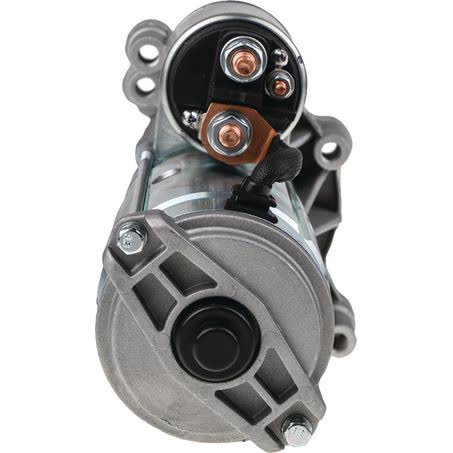

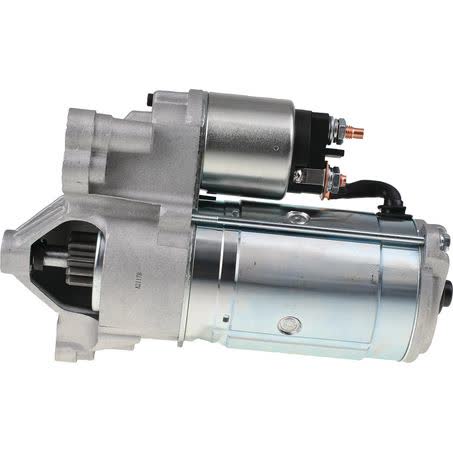

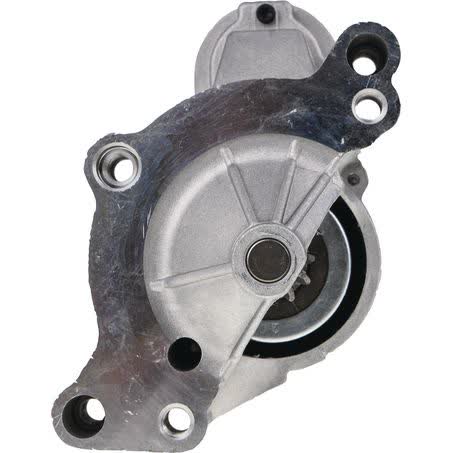

OEX Starter Motor 12V 11 Tooth CW Valeo Style VXS942

The OEX Starter Motor VXS942 is a new 12V starter motor in Valeo style, with clockwise rotation and 11 teeth on the pinion. It is listed with a 3-hole starter mount type, 120mm Mount Centres A, 85mm Mount Centres B, and 85mm Mount Centres C, so the mounting pattern and overall dimensions need to be checked carefully against the vehicle application before purchase.

This unit suits Valeo as the unit make and is specified with a 29mm pinion diameter, a -5mm pinion at rest position, and a 240mm overall length. The mounting holes are M10x1.5, and the starter weighs 4.1kg. Those details are important when matching a replacement starter, especially where the original unit has to align correctly with the bellhousing and mounting points.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. The starter is backed by a three-year warranty, which adds confidence for buyers wanting a new rotating electrical component with clearly stated dimensions and a defined application style.

Key Features

• New starter motor
• 12V electrical system
• 11 tooth pinion
• Clockwise rotation
• Valeo style unit
• 3-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: VXS942
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Valeo
• Starter mount type: 3 hole

Known application groups and fitment pointers

• Citroën models listed include C4, C4 Grand Picasso, C4 Picasso, C5, DS 5, DS4 and DS5.
• Peugeot models listed include 3008, 307, 308, 308 CC, 308 SW, 4007, 407, 5008, 508, 508 SW and Expert.
• Sample application data includes Citroën C4 2004 to 2011 and Peugeot 3008 2009 to 2016.
• Fitment should be checked against the starter style, 12V rating, 11 tooth pinion, clockwise rotation, and the 3-hole mounting pattern.
• Vehicle-specific application must be confirmed before ordering, as the listed model groups cover multiple variants and build periods.

Application and Buying Notes

When replacing a starter motor, the safest match is the part number and the physical specification. This unit is identified as VXS942, and it is a 12V, clockwise, 11-tooth Valeo style starter with a 3-hole mount. If your original starter differs in rotation, tooth count, mounting pattern, or pinion size, it may not be the correct replacement even if the vehicle badge looks similar.

The mounting details matter just as much as the electrical rating. Mount Centres A is 120mm, while Mount Centres B and C are both 85mm, with M10x1.5 mounting holes and a 240mm overall length. Those measurements help confirm whether the starter will bolt up correctly and sit in the right position on the engine or transmission housing.

This starter is listed for several Citroën and Peugeot model groups, including C4, C5, DS4, DS5, 3008, 307, 308, 4007, 407, 5008, 508 and Expert. Even so, those model names cover different engines and build variations, so buyers should compare the old unit and vehicle details before fitting. The pinion diameter is 29mm and the pinion at rest is -5mm, which can be useful when checking the old starter against the replacement.

Because this is a new starter motor, it is intended as a direct replacement in applications where the listed Valeo style and dimensions match. The three-year warranty provides an added layer of support, but it does not replace the need to verify the part number, mounting layout and application details first. In rotating electrical parts, a careful check before purchase is the best way to avoid downtime and return freight.

If you are cross-checking against a removed starter, compare the part label, mounting ear positions, number of teeth and overall body length before ordering. The 4.1kg weight, CW rotation, and 12V specification are all useful reference points when confirming you are looking at the same style of unit. When in doubt, match on VXS942 and the measured dimensions rather than relying on the vehicle name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS942 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Centres B 85mm, Mount Hole Diameter M10x1.5, Overall Length 240mm, Pinion Diameter 29mm, Suits Unit Make Valeo, New / Reman. New, Weight 4.1kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXS942, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style, Mount Centres A 120mm, Mount Centres C 85mm, Number of Teeth 11, Pinion at Rest -5mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 11Th CW Valeo Style. Part number VXS942 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Compatibility note: Please confirm fitment using part number VXS942, the 12V CW 11-tooth Valeo style specification, and the stated mounting and dimension details before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS942.

What voltage is this starter motor?

It is a 12V starter motor.

Is this starter motor clockwise or counter-clockwise?

It is specified as clockwise rotation (CW).

How many teeth does the pinion have?

The pinion has 11 teeth.

What type of mount does it use?

It uses a 3-hole starter mount, with Mount Centres A at 120mm and Mount Centres B and C at 85mm each.

Which vehicle groups are listed for fitment?

Listed fitment groups include Citroën C4, C4 Grand Picasso, C4 Picasso, C5, DS 5, DS4 and DS5, plus Peugeot 3008, 307, 308, 308 CC, 308 SW, 4007, 407, 5008, 508, 508 SW and Expert.
