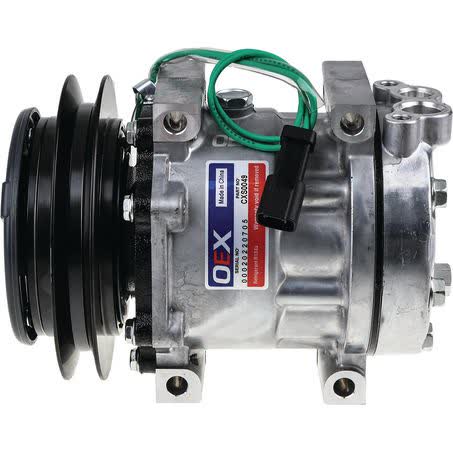

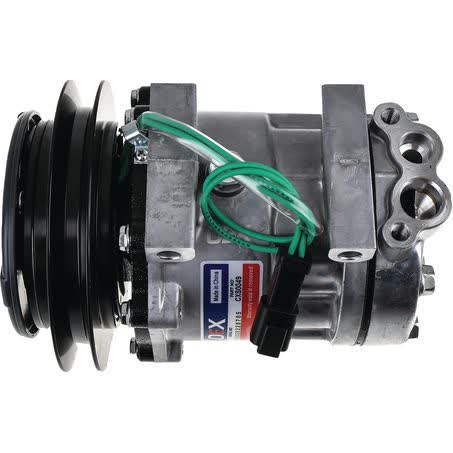

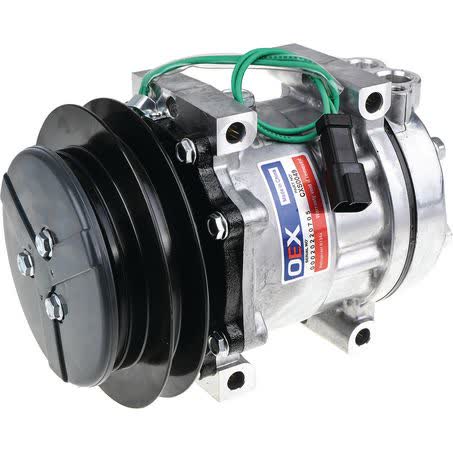

OEX Air Conditioning Compressor 24V Direct Mount SD7H13 Style CXS0049

The OEX Air Conditioning Compressor is a 24V direct mount unit in SD7H13 style, supplied under part number CXS0049. It is described as a Sanden suit unit with vertical pad fitting type, pulley section B, clutch diameter 145mm, and gauge line 43.85mm, so the mounting and connection details are specific rather than generic.

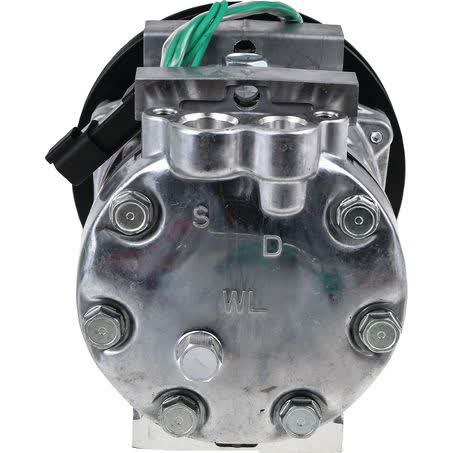

This compressor is listed with oil type SP 10 and an oil capacity of 135ml. A dust cover is included, and the head code is WL. These details matter when comparing a replacement compressor, because compressor style, mount type, pulley layout, and line dimensions all need to line up with the machine it is being fitted to.

The unit is identified as a universal 24V 1B 146mm direct mount compressor with vertical pad fittings and GL 43.9mm. That makes it important to check the full application carefully, especially where the original compressor has the same SD7H13 series, 24V electrical requirement, and direct mount arrangement.

OEX lists this compressor with a two year warranty. It is sold as an each unit and sits in the cooling and AC components groups, which is useful when matching it against an existing air conditioning setup rather than relying on appearance alone.

Key Features

• 24V air conditioning compressor
• Direct mount SD7H13 style
• Vertical pad fitting type
• Pulley section B
• Clutch diameter 145mm
• Gauge line 43.85mm

Specifications

• Brand: OEX
• Part No.: CXS0049
• Type: Air conditioning compressor
• Voltage: 24
• Series: SD7H13
• Compressor mounting: Direct mount
• Fitting type: Vertical pad
• Oil type: SP 10

Fitment guidance

• No vehicle fitment is verified here by model-specific application data.
• The compressor is described as a universal 24V direct mount SD7H13 style unit.
• Supplied fitment references include CASE, CATERPILLAR, KOBELCO, KOMATSU and LINK-BELT applications.
• Example listed applications include CASE CX135SR, CATERPILLAR 308DCR, KOBELCO ED150, KOMATSU HD785-7 and LINK-BELT 130LX.
• Matching should still be confirmed against the existing compressor part number, mount style, pulley section and line configuration before ordering.

Application and Buying Notes

Before buying, compare the part number CXS0049 with the compressor already on the machine, then check the 24V requirement, direct mount design and vertical pad fittings. Those details are the clearest identifiers supplied and are more reliable than judging by general shape alone.

The SD7H13 style designation, pulley section B and clutch diameter of 145mm are important compatibility checkpoints. If any of those differ from the existing compressor, the unit may not suit the installation without changes, even if the machine family appears similar.

Oil type SP 10 and oil capacity of 135ml should also be checked against the vehicle or machine requirements. Compressor lubrication needs to align with the system specification, and it is best not to assume the correct oil is already present or that the replacement will be filled the same way as the removed unit.

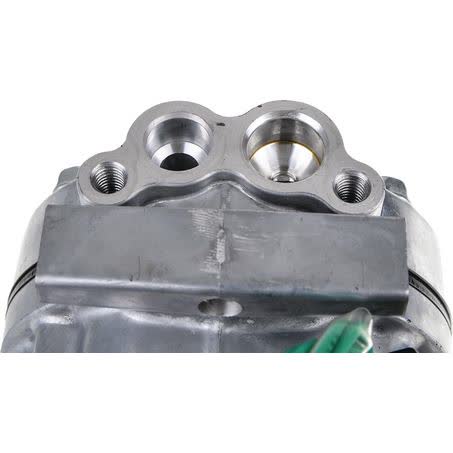

The listed gauge line of 43.85mm and the vertical pad fitting type give a more precise indication of how the compressor connects to the rest of the air conditioning system. These measurements are useful when confirming whether the hose and mounting layout match the replacement part.

This compressor is suited to Sanden unit make and is described as a universal 24V 1B 146mm direct mount unit. That means application checking is still necessary, particularly where the machine may have had different compressor revisions over time or where an earlier repair may have altered the original setup.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0049 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section B, Suits Unit Make Sanden, Note Oil Type SP 10, Oil Capacity 135ml, Head Code WL, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0049, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount SD7H13 Style, Clutch Diameter 145mm, Fitting Type Vertical Pad, Series SD7H13, Voltage 24, Gauge Line 43.85mm, Dust Cover Y/N Yes.

OEX Air Conditioning Compressor 24V Direct Mount SD7H13 Style. Part number CXS0049 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0049, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE CX135SR, CASE CX135SR 2005, CASE CX135SR 2006, CASE CX135SR 2007, CATERPILLAR 308DCR, CATERPILLAR 308DCR 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility by checking the existing compressor part number, the 24V direct mount arrangement, vertical pad fittings, pulley section B, clutch diameter 145mm and gauge line 43.85mm before ordering.

FAQ

What is the part number for this compressor?

The part number supplied is CXS0049.

What voltage is this compressor designed for?

It is a 24V compressor.

What style of mount does it use?

It is listed as a direct mount compressor with vertical pad fitting type.

What oil type should be used?

The listed oil type is SP 10, with an oil capacity of 135ml.

Does it include a dust cover?

Yes. Dust cover is listed as included.

What warranty is listed?

A two year warranty is listed for this compressor.
