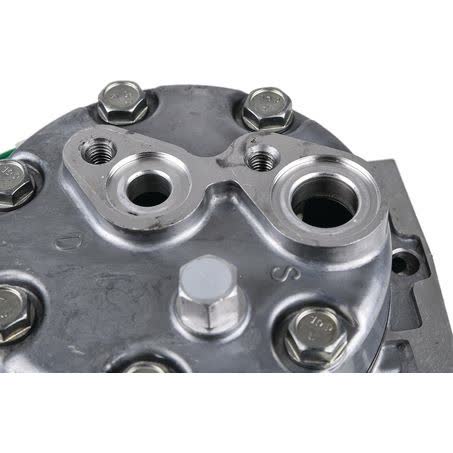

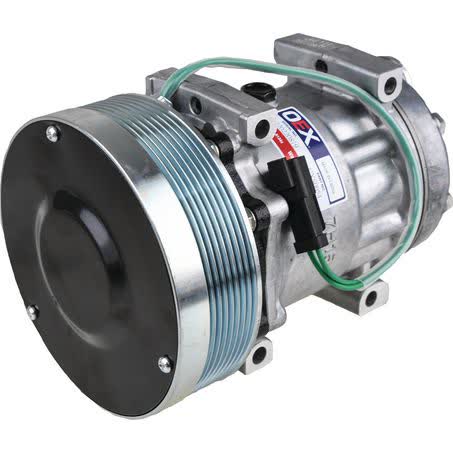

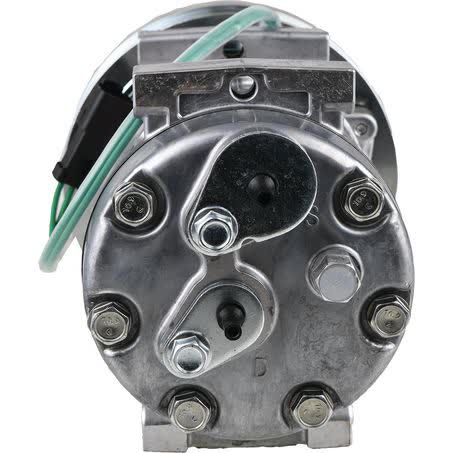

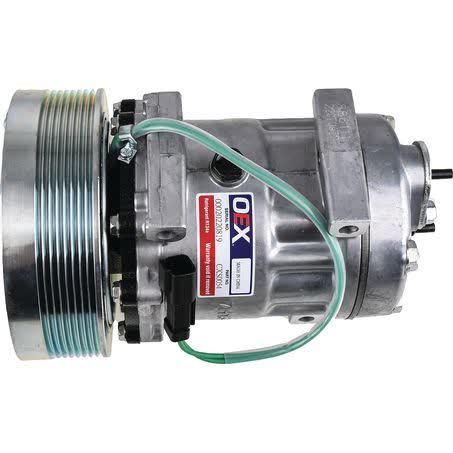

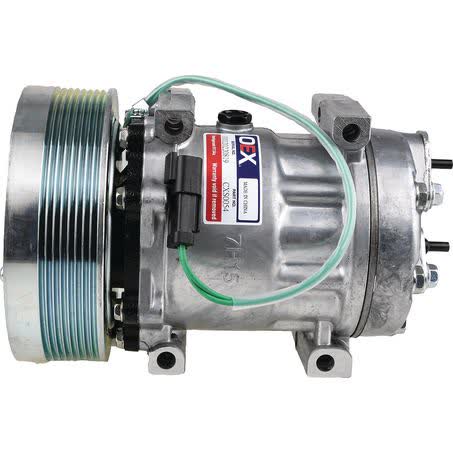

OEX Air Conditioning Compressor 24V Direct Mount SD7H15 Style CXS0054

The OEX air conditioning compressor listed here is a 24V direct mount unit in SD7H15 style, supplied under part number CXS0054. It is described with an 8 groove pulley section, 152mm clutch diameter, pad fittings and a horizontal layout, so it suits buyers replacing a compressor where those physical details need to match closely.

It is listed as a Sanden suit unit make, with a fully sealed clutch and dust cover included. The compressor uses PAG46 oil, has an oil capacity of 300ml and carries a two-year warranty, which gives useful reference points when comparing against the existing unit in the machine.

The fitment information supplied with this compressor includes Caterpillar applications across a range of earthmoving and heavy equipment models. Because compressor fitment can vary by mounting, pulley, clutch and pipe arrangement, the safest approach is to match the part number CXS0054 and compare the listed measurements before ordering.

Key Features

• 24V air conditioning compressor
• Direct mount compressor design
• SD7H15 series, SD7H15HD style
• 8 groove pulley section
• 152mm clutch diameter
• Pad fitting type

Specifications

• Part number: CXS0054
• Brand: OEX
• Voltage: 24V
• Compressor mounting: Direct Mount
• Series: SD7H15
• Fitting type: Pad
• Pulley section: 8 groove
• Clutch diameter: 152mm

Fitment information supplied

• Caterpillar 14M3
• Caterpillar 16M3
• Caterpillar 18M3
• Caterpillar 6015
• Caterpillar 725C/C2
• Caterpillar 966K
• Caterpillar 966L
• Caterpillar 966M/MXE

Application and Buying Notes

Before ordering, confirm the compressor on the machine matches the key identifiers here: 24V operation, direct mount configuration, SD7H15 series, 8 groove pulley section and 152mm clutch diameter. These details are the most useful checkpoints when comparing a replacement unit, especially where the machine uses pad fittings and a horizontal compressor layout.

The compressor is specified for PAG46 oil and a 300ml oil capacity, so those values matter when checking the replacement against the existing system setup. The listed gauge line of 61.5mm is another practical measurement to verify, along with the dust cover and fully sealed clutch configuration if you are matching an original assembly.

The supplied fitment data covers a number of Caterpillar machines, including 14M3, 16M3, 18M3, 6015, 725C/C2, 966K, 966L, 966M/MXE, 972K, 972L, 972M/MXE, 986K, D10, D10T, D10T2, D11T, D6N, D6RII, D6RIII, D6T, D6TWH, D8T, D9T, PL72, PL83 and PL87. Even where a model family is listed, final confirmation should still be made against the actual compressor style and part number on the machine.

If you are replacing a worn or seized compressor, check the existing pulley groove count and clutch size before purchasing. An 8 groove, 152mm clutch unit with pad fittings will not suit every 24V application, so matching the physical details is as important as matching the voltage.

For workshop or fleet use, part number CXS0054 is the clearest reference point. It is the best identifier to use when cross-checking stock, comparing supplier listings or confirming the replacement against the compressor already fitted to the machine.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0054 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note Oil type PAG46., Oil Capacity 300ml, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXS0054, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount SD7H15HD Style, Clutch Diameter 152mm, Fitting Type Pad, Series SD7H15, Voltage 24, Gauge Line 61.5mm, Dust Cover Y/N Yes, Product Group 1 COOLING.

OEX Air Conditioning Compressor 24V Direct Mount SD7H15HD Style. Part number CXS0054 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0054, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 14M3, CATERPILLAR 14M3 2015, CATERPILLAR 16M3, CATERPILLAR 16M3 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number CXS0054 and checking the 24V direct mount SD7H15 style specification, 8 groove pulley, 152mm clutch diameter, pad fittings and 61.5mm gauge line against the existing compressor and machine application before ordering.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor, 24V, direct mount, SD7H15 style, supplied under part number CXS0054.

What are the key mounting and connection details?

The listed mounting is Direct Mount, the fitting type is Pad, and the features note horizontal pad fittings with a fully sealed clutch.

What pulley and clutch details are listed?

The compressor has an 8 groove pulley section and a 152mm clutch diameter.

What oil does it use?

The note states PAG46 oil, and the oil capacity is listed as 300ml.

What warranty is supplied?

The compressor is listed with a Two Years warranty.

Which machines are listed in the supplied fitment information?

The fitment list includes Caterpillar 14M3, 16M3, 18M3, 6015, 725C/C2, 966K, 966L, 966M/MXE, 972K, 972L, 972M/MXE, 986K, D10, D10T, D10T2, D11T, D6N, D6RII, D6RIII, D6T, D6TWH, D8T, D9T, PL72, PL83 and PL87.
