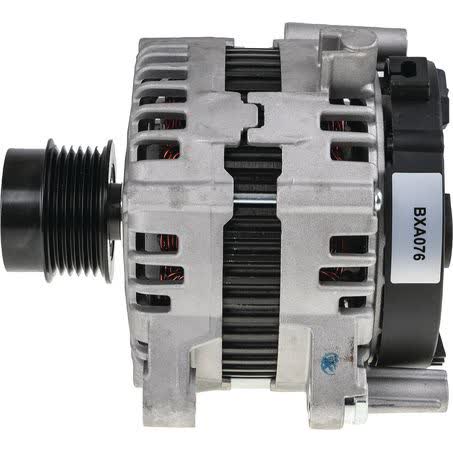

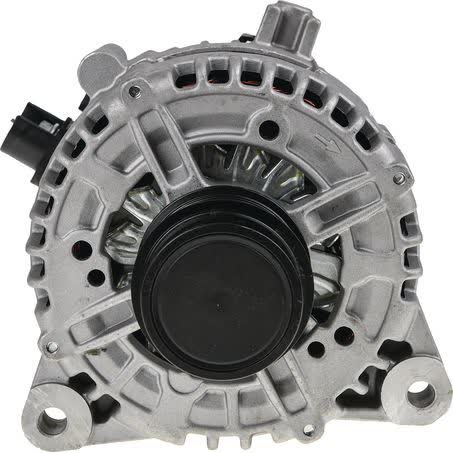

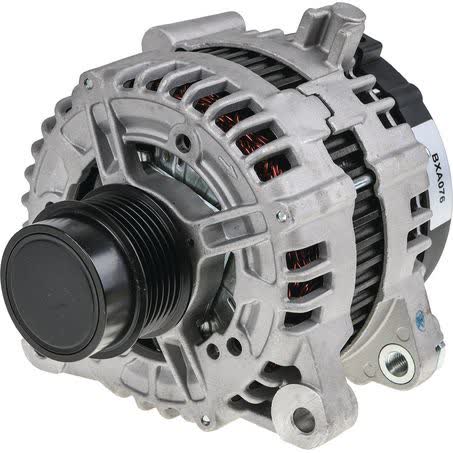

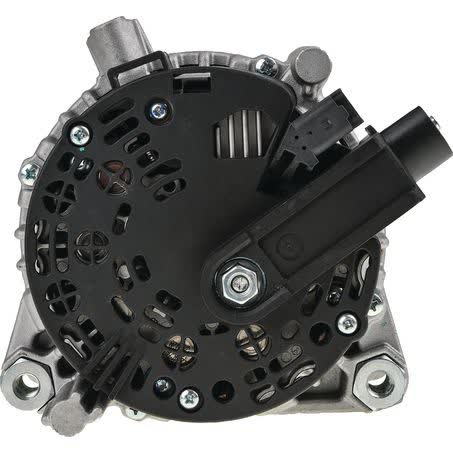

OEX Alternator 12V 180A Bosch Style BXA076

The OEX Alternator BXA076 is a 12V, 180A unit built in Bosch style with an internal regulator and a quad leg mount. It is listed with a 6 groove pulley, 57mm pulley outside diameter, and 46mm inside mounting legs, so those physical details matter when checking replacement compatibility.

This alternator is supplied new, not remanufactured, and carries a 3 year passenger / 1 year commercial warranty. The unit weighs 7.72kg, which can be useful when comparing it to the removed alternator during identification and cross-checking.

OEX identifies this part as suit­ing Bosch applications, and the listed fitment data includes Citroën C5, Citroën C6 and Peugeot 407 applications across the years shown. As with any charging system component, confirmation against the part number BXA076 and the mounting and pulley details is the safest way to buy with confidence.

Key Features

• 12V alternator with 180A output
• Bosch style unit
• Internal regulator
• 6 groove pulley
• Quad leg mount
• New unit

Specifications

• Brand: OEX
• Product type: Alternator
• Item type: Alternator
• Voltage: 12V
• Power rating: 180A
• Suits unit make: Bosch
• Part no.: BXA076
• Pin code: IR125

Known application guidance

• Citroën C5
• Citroën C6
• Peugeot 407
• Fitment years are shown in the supplied application data for specific variants within these models
• Check the alternator mount, pulley section, pulley diameter, mounting leg spacing and part number before ordering

Application and Buying Notes

The most important checks for this alternator are the part number BXA076, the Bosch style designation, and the physical mounting details: quad leg mount, 46mm inside mounting legs, and a 10 / M10x1.5 pivot hole diameter. If any of those do not match the vehicle’s original unit, the alternator should not be assumed to fit.

The pulley specification is equally important. This unit uses a 6 groove pulley with a 57mm outside diameter, so the belt type and pulley size need to line up with the vehicle’s charging system setup. A mismatch here can cause belt tracking issues or prevent correct installation, even if the electrical rating looks suitable.

Electrical output also needs to be matched to the application. This alternator is rated at 180A at 12V and uses an internal regulator. That makes it important to confirm the vehicle’s original charging system configuration rather than choosing only by brand or overall appearance.

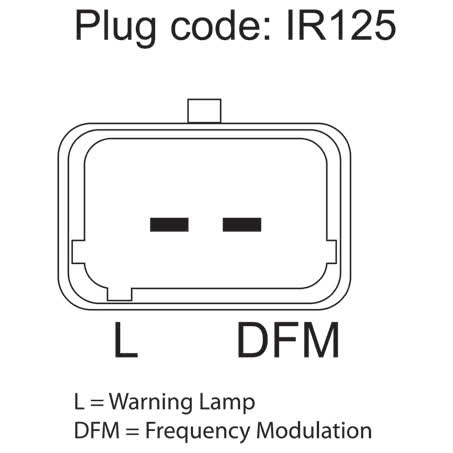

The listed fitment data covers Citroën C5, Citroën C6 and Peugeot 407 applications, but year and variant differences can still apply. Before ordering, compare the removed alternator’s mounting style, pulley section, pin code IR125, and physical dimensions against the replacement unit. Those checks are the most reliable way to avoid a costly mismatch.

For workshop or trade buyers, the weight of 7.72kg can be a useful reference point when identifying the unit, especially if the original alternator is available for side-by-side comparison. The fact that this is a new OEX alternator, backed by a 3 year passenger / 1 year commercial warranty, adds another practical checkpoint when comparing replacement options.

If the original alternator was Bosch style, the OEX BXA076 is intended to be compared against that setup rather than against a generic alternator listing. Keep the vehicle application, belt alignment, connector details, mounting arrangement and output rating together in your assessment so the replacement is chosen on technical grounds, not just on the basis of shape alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Pin Code IR125, Power Rating (Amp) 180, Pulley Section 6 Groove, Suits Unit Make Bosch, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA076, Brand OEX, Description OEX Alternator 12V 180A Bosch Style, Inside Mounting Legs 46mm, Pivot Hole Diameter 10 / M10x1.5, Pulley Outside Diameter 57mm, Regulator Type Internal, Voltage 12, Item Type Alternator.

OEX Alternator 12V 180A Bosch Style. Part number BXA076 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number BXA076, Bosch style application details, 12V 180A rating, quad leg mounting, 6 groove pulley, 57mm pulley diameter, 46mm inside mounting legs and pin code IR125 against the vehicle’s original alternator before purchase.

FAQ

Is this alternator new or remanufactured?

This OEX alternator is listed as new, not remanufactured.

What is the electrical rating of this alternator?

It is rated at 12V and 180A.

What regulator type does it use?

The alternator uses an internal regulator.

What mounting and pulley details are listed?

It has a quad leg mount, 46mm inside mounting legs, a 10 / M10x1.5 pivot hole diameter, and a 6 groove pulley with a 57mm outside diameter.

What vehicles are shown in the fitment data?

The supplied fitment data includes Citroën C5, Citroën C6 and Peugeot 407 applications.

What warranty is supplied with this alternator?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
