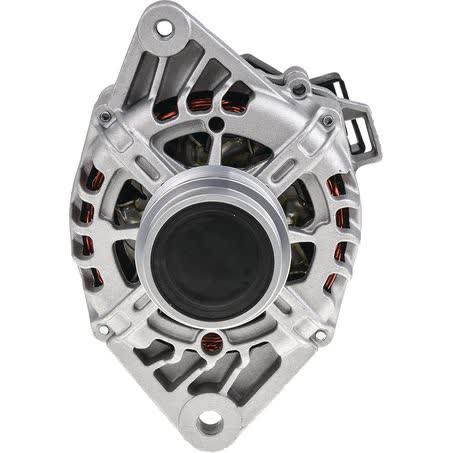

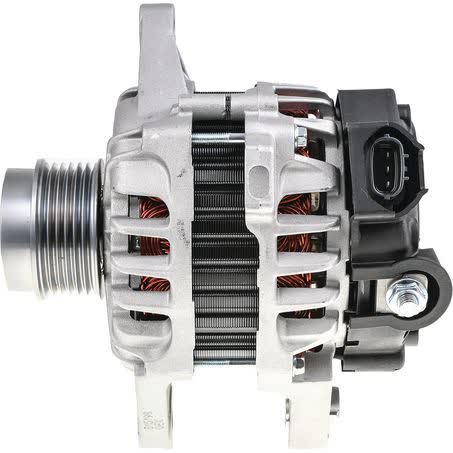

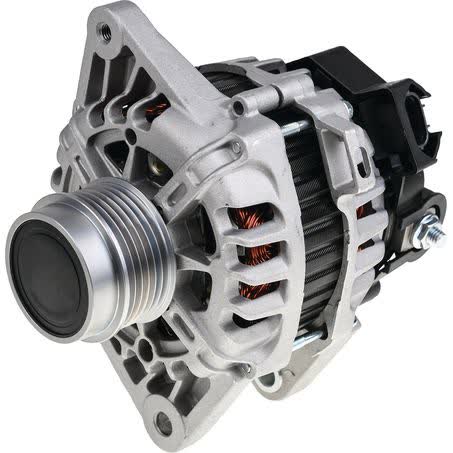

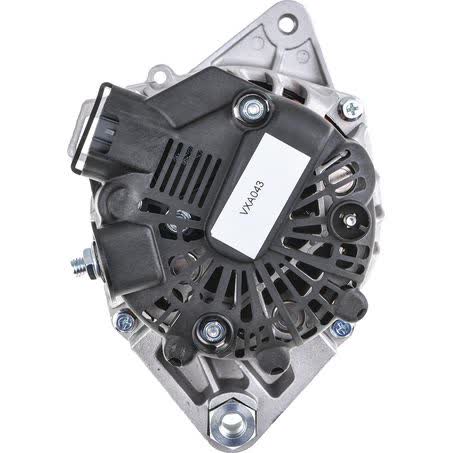

OEX Alternator 12V 90A Valeo Style VXA043

The OEX VXA043 is a new 12V alternator rated at 90A and built in a Valeo style application. It uses an internal regulator and a 6 groove pulley, with a pulley outside diameter of 58mm.

This unit is listed with a twin leg alternator mount, 169mm mount centre to centre, 50mm inside mounting legs, and a pivot hole diameter of 10/M10x1.25. The adjusting hole diameter is M8x1.25.

The product note is important: confirm by OE number due to different regulator functions. That advice applies here because the same general alternator style can still vary in regulator setup and application details.

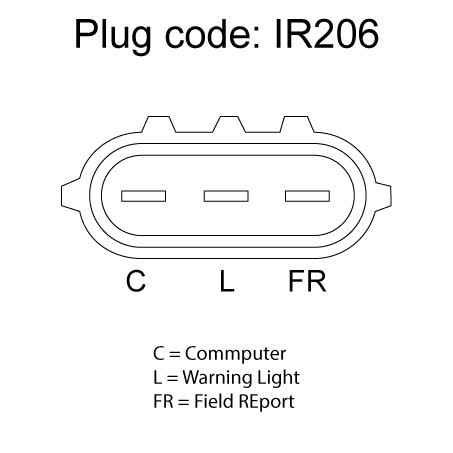

OEX identifies this part as VXA043, with pin code IR206, and it is supplied as a single each unit. Warranty is 3yr passenger and 1yr commercial.

Key Features

• 12V alternator rated at 90A
• New unit with internal regulator
• Valeo style application
• 6 groove pulley, 58mm outside diameter
• Twin leg alternator mount
• Confirm by OE number due to regulator differences

Specifications

• Brand: OEX
• Part No.: VXA043
• Voltage: 12V
• Amperage: 90A
• Type: Alternator
• New / Reman.: New
• Regulator type: Internal
• Pulley section: 6 groove

Fitment guidance

• Suitability is listed against Valeo-style applications.
• The supplied fitment preview includes Hyundai Accent, Hyundai i30, and Kia Rio references.
• Application examples shown include Hyundai Accent model years 2010 through 2019, plus Kia Rio and Kia Rio 2017.
• Because alternator regulator functions can differ, OE number confirmation is still required before ordering.

Application and Buying Notes

Before buying, match the OEX part number VXA043 and check that the vehicle needs a 12V, 90A alternator with an internal regulator. That combination is more important than the general description alone, especially where the note says to confirm by OE number due to different regulator functions.

The mounting details are specific: twin leg mount, 169mm centre to centre, 50mm inside mounting legs, M10x1.25 pivot hole, and M8x1.25 adjusting hole. These measurements need to align with the existing unit and bracket arrangement for the alternator to physically install correctly.

The pulley is a 6 groove type with a 58mm outside diameter. Belt groove count and pulley size should be checked against the vehicle’s existing setup, as a mismatch can prevent proper belt alignment or operation.

This alternator is supplied as a new unit and weighs 5.16kg. It is described as Valeo style and suits Valeo unit make references, but that still does not replace a direct comparison with the OE number on the old unit or vehicle documentation.

If you are replacing an existing alternator, compare the regulator function, plug arrangement, mount style, and pulley details before purchase. The product is intended for specific applications, and the fitment preview points to Hyundai Accent, Hyundai i30, and Kia Rio references only in the supplied data.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA043 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 50mm, Pivot Hole Diameter 10/M10x1.25, Pulley Outside Diameter 58mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, Mount Cnt to Cnt 169mm.

Additional published details for cross-checking include Weight 5.16kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXA043, Brand OEX, Description OEX Alternator 12V 90A Valeo Style - See Note, Adjusting Hole Diameter M8x1.25, Pin Code IR206, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 90A Valeo Style - See Note. Part number VXA043 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA043, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using the OE number, alternator regulator function, mount measurements, pulley details, and application details before ordering. The same Valeo-style alternator family can still differ between vehicles and regulator setups.

FAQ

What is the part number for this alternator?

The part number is VXA043. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator rated at 90A. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is internal. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.

What pulley setup does it use?

It has a 6 groove pulley with a 58mm outside diameter. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Confirm the OE number, regulator function, mount measurements, and pulley details. The supplied note specifically says to confirm by OE number because regulator functions can differ. For this listing, part number VXA043 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include HYUNDAI ACCENT, HYUNDAI ACCENT 2010, HYUNDAI ACCENT 2011. These details should still be checked against the original unit before ordering.
