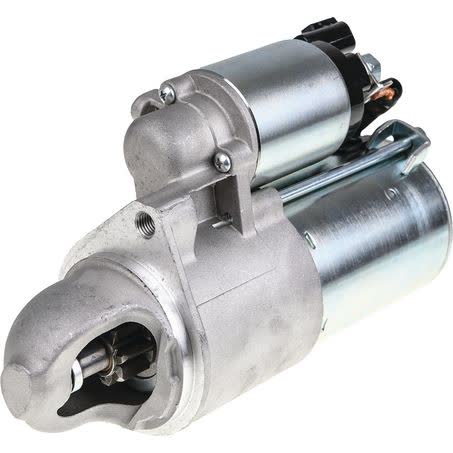

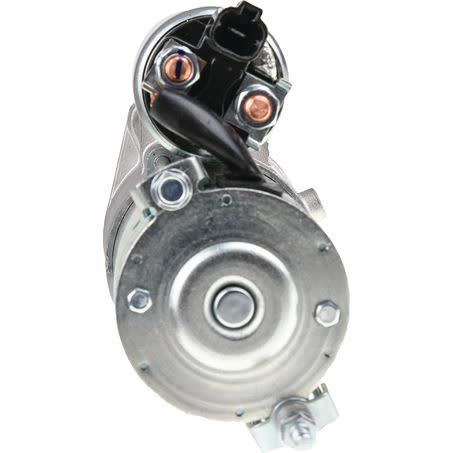

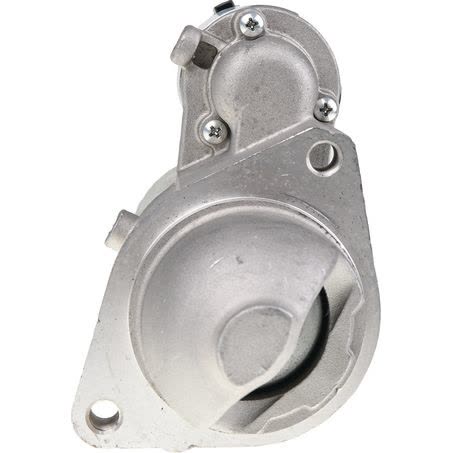

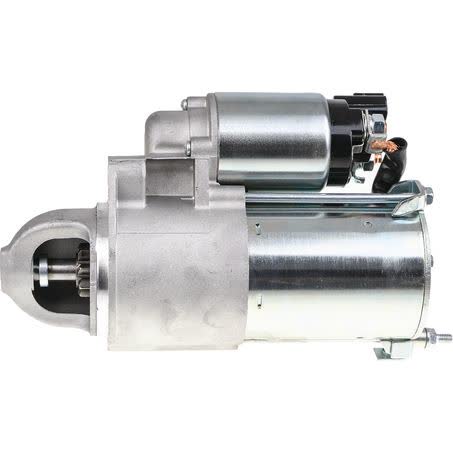

OEX Starter Motor 12V 8 Tooth CW Valeo Style VXS943

The OEX VXS943 is a new 12V starter motor in Valeo style, built with a clockwise rotation and an 8 tooth pinion. It is listed with a 1.4kW power rating, a 70mm flange diameter, and a 240mm overall length, so it suits buyers who need those exact starter dimensions and the Valeo unit make.

This starter motor uses a 2 hole mounting arrangement with a 100mm mount centre to centre and M10x1.25 mount hole diameter. The pinion diameter is 27.5mm and the pinion at rest measurement is 15mm, which are important checks when matching the unit to the vehicle application.

OEX lists this part as a new starter motor, each unit weighing 3.52kg. The stated warranty is 3yr Passenger and 1yr Commercial, giving a clear warranty split depending on how the vehicle is used.

Key Features

• 12V starter motor
• Valeo style unit
• Clockwise rotation
• 8 tooth pinion
• 2 hole starter mount
• New part, sold each

Specifications

• Part number: VXS943
• Brand: OEX
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 8
• Suits unit make: Valeo
• Overall length: 240mm

Fitment notes

• Fitment data provided references Hyundai applications, including Hyundai Grandeur and Hyundai Sonata.
• Application coverage shown includes Hyundai Grandeur model years 2005 through 2011 and Hyundai Sonata model years 2005 through 2007.
• Use the part number VXS943 and the starter measurements to confirm the correct unit before ordering.

Application and Buying Notes

When comparing this starter motor, the key checks are the part number VXS943, the Valeo unit make, and the physical dimensions: 240mm overall length, 70mm flange diameter, 100mm mount centre to centre, and 2 hole mounting. These details matter because starter motors can share a similar appearance while differing in mounting and pinion layout.

The 12V electrical setup and 1.4kW power rating should also be matched carefully to the vehicle’s original specification. If the existing starter is a Valeo style unit, the 8 tooth pinion, 27.5mm pinion diameter, and 15mm pinion at rest measurement are useful reference points when checking the replacement.

The listed fitment references Hyundai Grandeur and Hyundai Sonata applications, but the model year range should be checked against the actual vehicle and the original part fitted. It is best to confirm the starter against the old unit, the vehicle details, and any service information available before purchase.

Warranty terms are clearly split at 3 years for passenger use and 1 year for commercial use. That distinction is worth noting if the vehicle is used in a trade or commercial setting, as the applicable warranty period depends on how the part is installed and used.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS943 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.25, Overall Length 240mm, Pinion Diameter 27.5mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 100mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS943, Brand OEX, Description OEX Starter Motor 12V 8Th CW Valeo Style, Flange Diameter 70mm, Number of Teeth 8, Pinion at Rest 15mm, Power Rating 1.4kW, Suits Unit Make Valeo.

OEX Starter Motor 12V 8Th CW Valeo Style. Part number VXS943 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS943, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number VXS943, the Valeo style specification, the 12V and 1.4kW rating, and the mounting and pinion measurements against the original starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS943. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.

What type of rotation does it have?

It is clockwise rotation, listed as CW. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.

Which applications are referenced for fitment?

The fitment references provided relate to Hyundai Grandeur and Hyundai Sonata applications, including Grandeur model years 2005 to 2011 and Sonata model years 2005 to 2007. For this listing, part number VXS943 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2005, HYUNDAI GRANDEUR 2006. These details should still be checked against the original unit before ordering.
