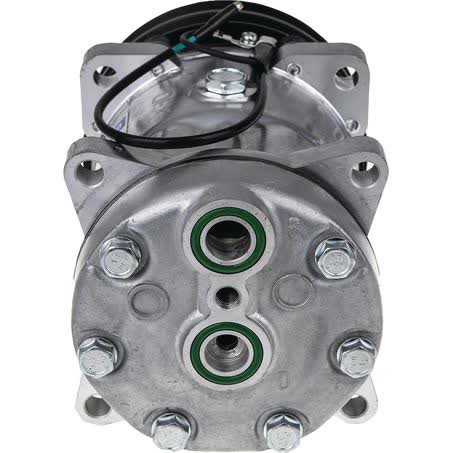

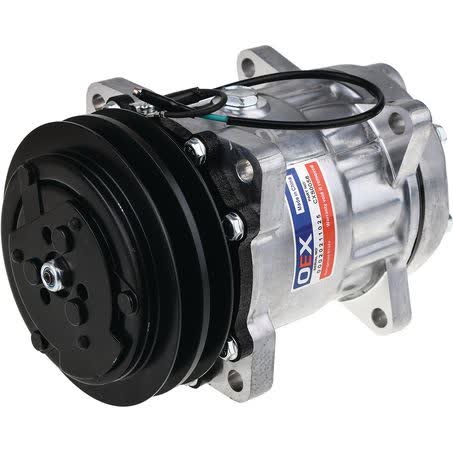

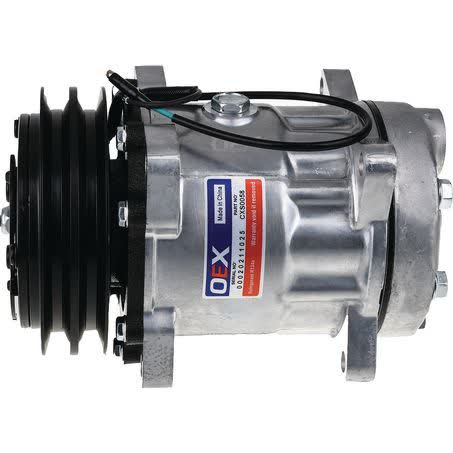

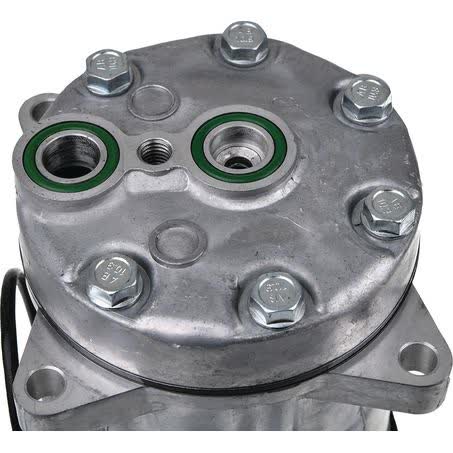

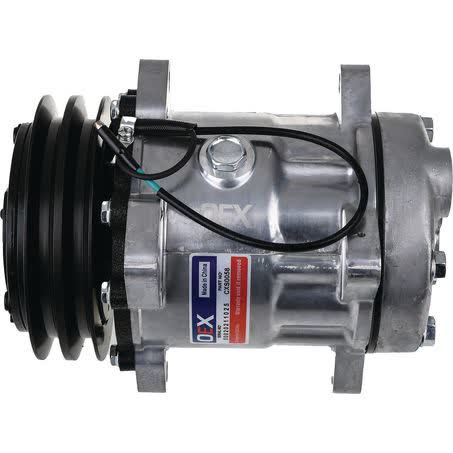

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style CXS0058

The OEX Air Conditioning Compressor is a 24V heavy commercial unit in SD7H15 style, supplied under part number CXS0058. It is listed as an ear mount compressor with a GM horizontal pad fitting type, 132mm clutch diameter, and a 39.55mm gauge line, so the mounting and spacing details need to match the vehicle before fitting.

This compressor is specified with a Sanden unit make, AA pulley section, no dust cover, and an oil capacity of 207ml. The note also calls up O Ring to suit ORX017 x 2 and oil type SP10, which are both practical checks to confirm during installation.

As with any air conditioning compressor, the important buying step is confirming the part number, mounting style, voltage, and pad arrangement against the vehicle already in service. The listed 24V electrical specification and GM horizontal pad fitting type make this a parts-match item rather than a universal assume-fit component.

It is supplied as each unit and carries a two year warranty. For fleet and heavy commercial use, those details matter because the compressor must match the existing system layout, clutch size, and hose connection arrangement before any work is started.

Key Features

• 24V heavy commercial air conditioning compressor
• SD7H15 style compressor
• Ear mount design
• GM horizontal pad fitting type
• 132mm clutch diameter
• AA pulley section

Specifications

• Brand: OEX
• Part No.: CXS0058
• Type: Heavy Commercial
• Voltage: 24V
• Series: SD7H15
• Compressor Mounting: Ear Mount
• Fitting Type: GM Horizontal Pad
• Clutch Diameter: 132mm

Fitment information supplied

• DAF CF 75
• DAF CF 85
• DAF XF 95
• Liebherr
• Liebherr R9800

Application and Buying Notes

Before ordering, compare the compressor mounting and connection style against the vehicle currently fitted. This unit is an ear mount, 24V compressor with a GM horizontal pad and a 39.55mm gauge line, so those physical details need to line up with the existing air conditioning setup, not just the vehicle badge.

The listed 132mm clutch diameter is another useful checkpoint because clutch size must suit the installation space and the existing drive arrangement. The pulley section is AA, and the compressor is described as SD7H15 style with a Sanden unit make, so matching the style and connection pattern is just as important as matching voltage.

If you are replacing a failed compressor, confirm the original part number where possible and check the hose pad orientation, mount type, and clutch diameter before purchasing. The fitment list supplied for this item includes DAF CF 75, DAF CF 85, DAF XF 95, and Liebherr R9800 applications, but the safest approach is always to verify the part number and the physical compressor details on the vehicle.

This compressor is sold as a single each unit and is covered by a two year warranty. That makes it suitable for planned repair work, but the installer still needs to confirm system cleanliness, the correct oil type, and that the existing components are compatible with a 24V ear mount SD7H15 style compressor before commissioning the system.

For commercial air conditioning work, the main risk is assuming that a compressor with the right voltage will automatically fit. In practice, the ear mount layout, GM horizontal pad fitting type, 132mm clutch diameter, and part number CXS0058 are the details that matter most when checking compatibility.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0058 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type HEAVY COMMERCIAL, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2 . Oil Type SP10, Oil Capacity 207ml, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXS0058, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type GM Horizontal Pad, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N No, Product Group 1 COOLING.

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style. Part number CXS0058 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0058, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a heavy commercial in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAF CF 75, DAF CF 75 2001, DAF CF 75 2002, DAF CF 75 2003, LIEBHERR R9800, LIEBHERR R9800 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number CXS0058, 24V electrical requirement, ear mount layout, GM horizontal pad connection, 132mm clutch diameter, and the listed application details before ordering or fitting.

FAQ

What is the part number for this compressor?

The part number listed is CXS0058.

What voltage does this compressor use?

It is specified as a 24V compressor.

What mounting style does it use?

It is an ear mount compressor.

What type of fitting does it have?

The fitting type is listed as GM horizontal pad.

What vehicles are shown in the fitment information?

The supplied fitment information includes DAF CF 75, DAF CF 85, DAF XF 95, and Liebherr R9800 applications.

What should I check before buying?

Check the part number CXS0058, 24V requirement, ear mount style, GM horizontal pad fitting, 132mm clutch diameter, and the existing system details on the vehicle before ordering.
