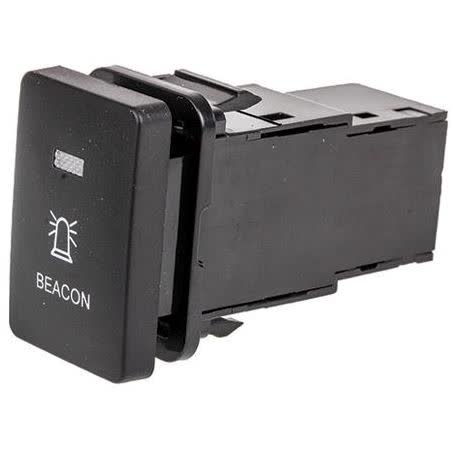

Drivetech 4X4 OE Style Push Button Switch Beacon 12V 3A DT-11077

The Drivetech 4x4 OE Style Push Button Switch Beacon is a 12V switch rated at 3A, supplied under part number DT-11077. It uses an On - Off - SPST switch action and features blue LED illumination, which is useful when you want a clean dashboard-style control with simple operation.

Physical size matters with switch panels, and this unit measures 32.5mm x 22mm. That makes the mount dimensions an important check before ordering, especially if you are replacing an existing switch or matching a factory-style opening in a Toyota or Mitsubishi application.

The listed application range includes Toyota LandCruiser Prado 150 series 2010-2018, LandCruiser 200 series 2008-current, RAV4 2006-2011, HiLux GUN series 09/2015-current, and Mitsubishi Triton 2015-current. The supplied wiring code is Black: earth, Blue: dash light circuit optional, Red: 12V input, and Green: 12V output.

Key Features

• OE style push button switch
• Blue LED illumination
• 12V operation
• 3A power rating
• On - Off - SPST switch action
• Mount size 32.5mm x 22mm

Specifications

• Brand: Drivetech 4x4
• Product type: Switch
• Unit of measure: Each
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Switch illumination: Blue LED Illumination

Listed vehicle applications

• Toyota LandCruiser Prado 150 series 2010-2018
• Toyota LandCruiser 200 series 2008-current
• Toyota RAV4 2006-2011
• Toyota HiLux GUN series 09/2015-current
• Mitsubishi Triton 2015-current

Application and Buying Notes

Before buying, compare the part number DT-11077 and the switch opening size of 32.5mm x 22mm with the dash panel or blank you want to use. The switch is designed for 12V systems and is rated to 3A, so it is best suited to low-current control applications rather than heavier loads.

The wiring information is straightforward but still needs to be matched correctly: Black is earth, Blue is for the dash light circuit if you want illumination, Red is the 12V input, and Green is the 12V output. If your vehicle or accessory wiring differs from this layout, take time to confirm the circuit before installation.

Fitment is listed for specific Toyota and Mitsubishi models, including Prado 150 series 2010-2018, LandCruiser 200 series 2008-current, RAV4 2006-2011, HiLux GUN series 09/2015-current, and Triton 2015-current. Even where the model is listed, the physical switch aperture and wiring setup should still be checked against your vehicle.

If you are replacing an existing factory-style switch, compare the style, size, and connector arrangement carefully. The blue LED illumination may suit some dashboard lighting setups better than others, so it is worth confirming how you want the switch to appear when the dash lights are on.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11077 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11077, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Beacon, Suits Toyota and Mitsubishi, Mount Width 22mm, Switch Action On - Off - SPST, Mount Length 32.5mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Beacon, Suits Toyota and Mitsubishi. Part number DT-11077 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11077, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA HILUX, TOYOTA HILUX 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the DT-11077 part number, the 32.5mm x 22mm mount size, and the listed vehicle application before purchase. Vehicle trim, dash panel layout, and wiring arrangement should always be verified against the actual vehicle.

FAQ

What is the part number for this switch?

The part number is DT-11077. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.

What voltage does the switch use?

It is a 12V switch. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.

What is the current rating?

The switch is rated at 3A. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.

What are the mounting dimensions?

The mount size is 32.5mm x 22mm, with a listed mount width of 22mm and mount length of 32.5mm. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.

Which vehicles are listed for fitment?

Listed applications include Toyota LandCruiser Prado 150 series 2010-2018, LandCruiser 200 series 2008-current, RAV4 2006-2011, HiLux GUN series 09/2015-current, and Mitsubishi Triton 2015-current. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.

What is the wiring code?

Black is earth, Blue is the dash light circuit optional, Red is 12V input, and Green is 12V output. For this listing, part number DT-11077 is the main reference point. Listed voltage is 12V. Listed output rating is 3. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015, TOYOTA FORTUNER. These details should still be checked against the original unit before ordering.
