Drivetech 4X4 OE Style Push Button Switch Beacon 12V 3A DT-11018

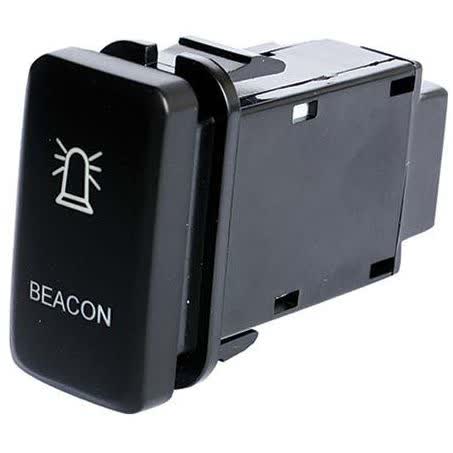

The Drivetech 4x4 OE Style Push Button Switch Beacon is a 12V, 3A switch with blue LED illumination and an On - Off - SPST action. It is supplied as a single each unit and carries part number DT-11018, which is the most useful identifier to check before ordering.

This switch is listed at 39mm x 21mm, with a mount width of 21mm and a mount length of 39mm. Those dimensions matter if you are matching an existing dash opening or replacing a factory-style switch position in a Toyota application.

Wiring is identified as Black for earth, Blue for dash light circuit optional, Red for 12V input, and Green for 12V output. That makes it important to confirm the vehicle-side wiring and intended circuit before installation, especially where the dash light feed is not being used.

The product is described as suitable for Toyota applications including Prado 120 series 2003-2009, Landcruiser 100 series 1998-2007, Landcruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013 KUN26R, GGN15R, GGN25R series, and Hiace 2005-2013.

Key Features

• OE style push button switch
• 12V, 3A rating
• Blue LED illumination
• On - Off - SPST switch action
• 39mm x 21mm size
• Part No. DT-11018

Specifications

• Brand: Drivetech 4x4
• Product type: Switch
• Unit of measure: Each
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Illumination: Blue LED

Verified fitment information

• Toyota Prado 120 series, 2003-2009
• Toyota Landcruiser 100 series, 1998-2007
• Toyota Landcruiser 79 series New Model
• Toyota FJ Cruiser, 2010-2013
• Toyota HiLux 2005-2013, KUN26R, GGN15R, GGN25R series
• Toyota Hiace 2005-2013

Application and Buying Notes

Before buying, compare the part number DT-11018 and the physical size of 39mm x 21mm against the switch position in your dash or console. A switch that is close in appearance can still differ in mounting size, so the measured opening is just as important as the vehicle model listing.

The switch is rated at 12V and 3A, so it is suited to low-current switching applications rather than heavier electrical loads. If you are controlling a beacon circuit or another accessory, check the current draw of that circuit and make sure it falls within the stated 3A rating.

Wiring colour identification is provided as Black earth, Blue dash light circuit optional, Red 12V input, and Green 12V output. If your vehicle loom does not match these colours or functions, allow time to trace the circuits carefully before fitting, rather than forcing a connection based on appearance alone.

The listed Toyota applications are specific by model and series, including Prado 120 series, Landcruiser 100 series, Landcruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013 KUN26R, GGN15R, GGN25R series, and Hiace 2005-2013. Even with those applications noted, dash layouts and factory switch blanks can vary, so the final check should always be the part number plus the opening size.

Blue LED illumination may be useful where you want the switch to be easy to identify at night, but the optional dash light circuit should still be matched correctly if you want the illumination to function as intended. If you are not using the dash light feed, make sure the unused wire is insulated properly.

A one year warranty is stated for the switch, and it is sold as a single each unit. If you need to replace multiple switches or are building a matched set, order the required quantity rather than assuming one pack covers more than one opening.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11018 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11018, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Beacon, Suits Toyota, Mount Width 21mm, Switch Action On - Off - SPST, Mount Length 39mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Beacon, Suits Toyota. Part number DT-11018 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11018, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number DT-11018, the 39mm x 21mm mounting size, and the listed Toyota applications before purchase. Vehicle wiring and dash openings should be checked on the actual vehicle, as similar-looking switches can differ in size and circuit layout.

FAQ

What is the part number for this switch?

The part number is DT-11018.

What voltage and current rating does it have?

It is rated at 12V and 3A.

What size is the switch?

The listed size is 39mm x 21mm, with a mount length of 39mm and a mount width of 21mm.

Which Toyota vehicles are listed as suitable applications?

The listed Toyota applications are Prado 120 series 2003-2009, Landcruiser 100 series 1998-2007, Landcruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013 KUN26R, GGN15R, GGN25R series, and Hiace 2005-2013.

What type of switch action does it use?

It uses an On - Off - SPST switch action and is a push button style switch.

What wiring information is provided?

The wiring code listed is Black: Earth, Blue: Dash light circuit optional, Red: 12V input, and Green: 12V output.
