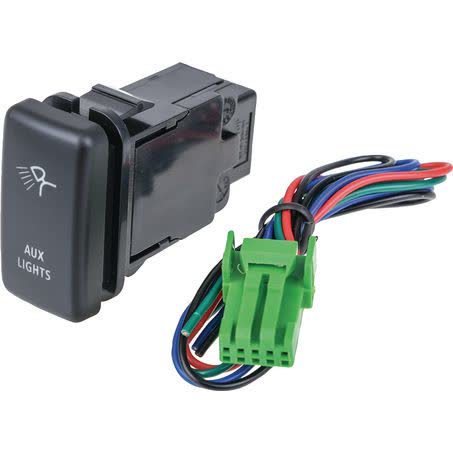

Drivetech 4X4 OE Style Push Button Switch Aux Lights Symbol 12V 3A DT-11019

The Drivetech 4x4 OE Style Push Button Switch is a 12V, 3A auxiliary switch with blue LED illumination and an On - Off - SPST action. It is listed as Part No. DT-11019 and measures 39mm x 21mm, so it is intended for installs where the cut-out size and switch format need to be checked carefully before purchase.

This switch is described as suitable for Toyota applications, including Prado 120 series 2003-2009, Landcruiser 100 series 1998-2007, Landcruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013 KUN26R, GGN15R and GGN25R series, and Hiace 2005-2013. The wiring code supplied is Black for earth, Blue for dash light circuit as an optional connection, Red for 12V input, and Green for 12V output.

For buyers replacing or adding an auxiliary light switch, the key details are the 12V operating voltage, 3A power rating, and the 39mm x 21mm mounting size. Those figures matter because the switch must suit both the electrical load and the physical opening in the vehicle dash or control panel.

Key Features

• OE style push button switch
• Blue LED illumination
• 12V operating voltage
• 3A power rating
• On - Off - SPST switch action
• Mount size: 39mm x 21mm

Specifications

• Brand: Drivetech 4x4
• Product type: Switch
• Unit of measure: Each
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Switch illumination: Blue LED illumination

Verified application details

• Toyota Prado 120 series, 2003-2009
• Toyota Landcruiser 100 series, 1998-2007
• Toyota Landcruiser 79 series, New Model
• Toyota FJ Cruiser, 2010-2013
• Toyota HiLux 2005-2013, KUN26R / GGN15R / GGN25R series
• Toyota Hiace 2005-2013

Application and Buying Notes

Check the mounting opening before ordering. The switch body measures 39mm x 21mm, so the dash or panel cut-out needs to suit that size for a proper fit. A switch can be electrically suitable but still be the wrong physical size if the opening does not match.

The electrical rating is 12V and 3A, which makes the switch suitable for low-current auxiliary control use. If the accessory you are controlling draws more than 3A, the switch alone is not the right choice and a relay-based circuit should be considered by the installer.

The supplied wiring colours are important during installation: Black is earth, Blue is for the dash light circuit and is optional, Red is 12V input, and Green is 12V output. Matching the wiring correctly helps avoid damage and keeps the switch illumination and function working as intended.

Although this switch is listed for selected Toyota models, exact dashboard styles and factory openings can vary within a model range. Confirm the part number DT-11019, the 39mm x 21mm size, and the specific vehicle application before fitting, especially if your vehicle has been modified or the dash trim has changed.

The blue LED illumination is a useful feature when the switch is installed in a dim cabin, but it still relies on correct wiring and a suitable dash light circuit if you want the illumination connected. If you do not need the dash light function, the Blue wire is noted as optional.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11019 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11019, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Aux Lights Symbol Suits Toyota, Mount Width 21mm, Switch Action On - Off - SPST, Mount Length 39mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Aux Lights Symbol Suits Toyota. Part number DT-11019 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11019, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA HILUX, TOYOTA HILUX 2005, TOYOTA HILUX 2006, TOYOTA HILUX 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching Part No. DT-11019, the 39mm x 21mm mounting size, the 12V / 3A rating, and the listed Toyota application before ordering. Vehicle trim, dash apertures, and wiring arrangements can vary, so the final check should always be made against the specific vehicle and the intended installation point.

FAQ

What is the part number for this switch?

The part number listed is DT-11019.

What voltage and current rating does this switch have?

It is rated at 12V and 3A.

What is the mounting size?

The mounting size is 39mm x 21mm, with a 21mm mount width and 39mm mount length.

Which vehicles are listed as suitable?

The listed Toyota applications are Prado 120 series 2003-2009, Landcruiser 100 series 1998-2007, Landcruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013 KUN26R, GGN15R and GGN25R series, and Hiace 2005-2013.

What is the switch action?

The switch action is On - Off - SPST.

What do the wire colours mean?

Black is earth, Blue is the dash light circuit and is optional, Red is 12V input, and Green is 12V output.
