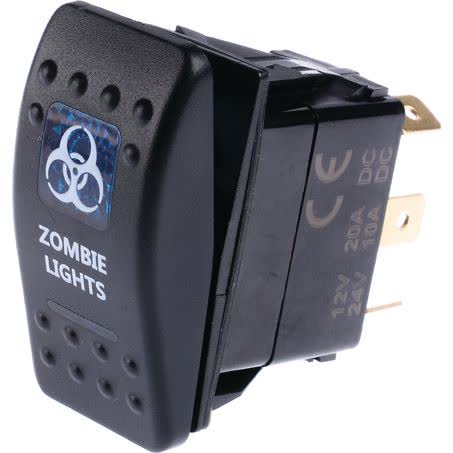

Drivetech 4X4 Rocker Zombie Lights Switch On/off Spst 12 Or 24V Blue Illumination DT-11024

The Drivetech 4x4 Rocker Zombie Lights Switch is a blue-illuminated rocker switch with an On/Off SPST action, designed for 12 or 24 volt systems. It is supplied as a single switch each and carries part number DT-11024, which is the most useful reference when checking suitability for your install.

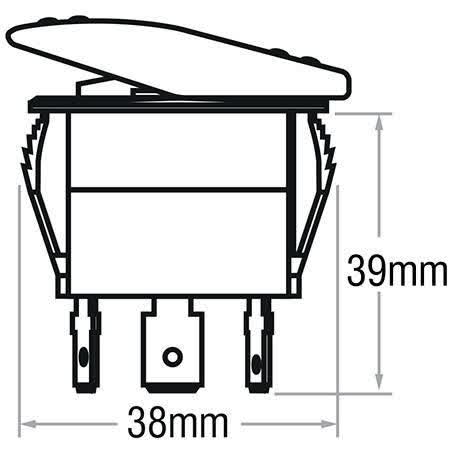

This switch uses a 5-terminal layout and a 2-position On/Off function, with a mount size of 36mm x 20mm. Those dimensions matter if you are fitting it into a switch panel, dash blank, or custom control setup, because the opening needs to suit the 36mm length and 20mm width exactly.

Drivetech 4x4 lists the contacts as rated at 20A at 12V, and the switch is identified as a rocker type with blue lamp colour. If you are matching it to an existing electrical layout, confirm both the voltage requirement and the mounting opening before ordering, as the physical size and terminal count are just as important as the current rating.

Key Features

• Rocker switch with On/Off SPST action
• Blue illuminated switch face
• Suitable for 12V or 24V systems
• Contacts rated 20A at 12V

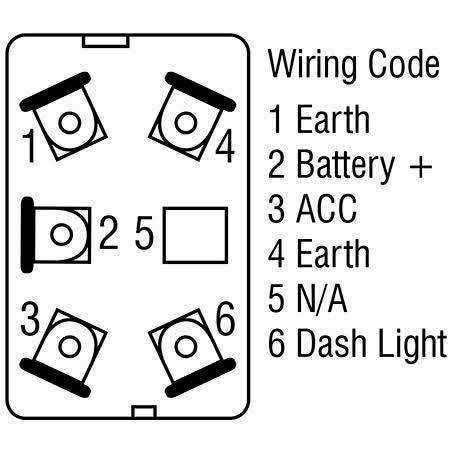

• 5 terminals for wiring connection
• 36mm x 20mm mounting hole

Specifications

• Brand: Drivetech 4x4
• Part No.: DT-11024
• Product type: Switch
• Switch type: Rocker
• Switch action: On - Off - SPST
• Number of positions: 2
• Number of poles: 1
• Number of terminals: 5

Application and Buying Notes

Before buying, check the switch opening in your panel or dash against the listed 36mm mount length and 20mm mount width. A rocker switch like this depends on the correct cut-out size, and even a small mismatch can prevent a clean fit or secure mounting.

The part number DT-11024 is the clearest reference for matching this switch to an existing installation. If you are replacing a worn or failed switch, compare the terminal count of 5, the SPST On/Off action, and the blue illumination so the replacement matches the function and style you need.

Voltage is another important checkpoint. This switch is suitable for 12 or 24 volt systems, but the contact rating is stated as 20A at 12V, so the intended electrical load and system setup should be checked carefully before installation. Use the rating that suits the circuit rather than assuming all accessories draw the same current.

Because this is a 2-position rocker switch with a single pole, it is best suited to straightforward On/Off control rather than more complex switching arrangements. If your existing wiring or accessory requires a different terminal layout, higher pole count, or a momentary function, this model will not be a direct substitute.

The illuminated blue lamp can be useful where switch visibility matters, especially in low-light cab setups. Even so, illumination does not change the need to confirm the mechanical fit, wiring layout, and current demand of the accessory you plan to control.

This switch is sold individually, so if your vehicle or project needs multiple matched controls, order the quantity you require. The one-year warranty applies to the product as listed, but installation should still be completed to suit the vehicle’s wiring and panel requirements.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11024 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Number of Terminals 5, Voltage 12 or 24, Mount Length 36mm, Number of Positions 2, Switch Illumination Illuminated, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11024.

Additional published details for cross-checking include Brand DRIVETECH 4X4, Description Drivetech 4x4 Rocker Zombie Light Switch On/Off SPST 12 or 24V Blue Illumination (Contacts Rated 20A @ 12V), Mount Width 20mm, Switch Action On - Off - SPST, Lamp Colour/s Blue, Number of Poles 1, Switch Type Rocker, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 Rocker Zombie Light Switch On/Off SPST 12 or 24V Blue Illumination (Contacts Rated 20A @ 12V). Part number DT-11024 should be checked first. Listed voltage is 12 or 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11024, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 or 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm compatibility by matching part number DT-11024, the 36mm x 20mm mounting size, 5 terminals, and the On/Off SPST function with your existing application before purchase.

FAQ

What type of switch is this?

It is a rocker switch with an On/Off SPST action and 2 positions. It is identified as a single-pole switch with 5 terminals.

What voltage does it suit?

The switch is listed for 12 or 24 volt systems. The contact rating is stated as 20A at 12V.

What are the mounting dimensions?

The mount length is 36mm and the mount width is 20mm. Those measurements should be checked against your panel opening before ordering.

Is the switch illuminated?

Yes. The switch is illuminated and the lamp colour is blue.

What is the part number?

The part number is DT-11024.

Is this sold as a pair or individually?

It is supplied each, so the listing is for one switch.
