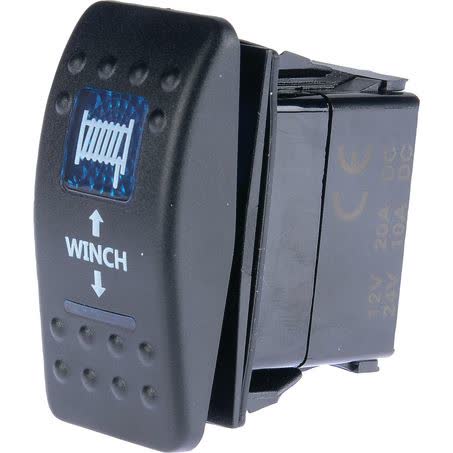

Drivetech 4X4 Rocker Winch Switch Mom On-off-mom On Spdt 12 Or 24V Blue Illuminated DT-11007

The Drivetech 4x4 rocker winch switch, part number DT-11007, is a 1-pole SPDT switch with a Mom On - Off - Mom On action and blue illumination. It is listed for 12 or 24 volt systems and has contacts rated at 20A @ 12V, so it suits electrical control setups that need a clearly defined momentary centre-off rocker arrangement.

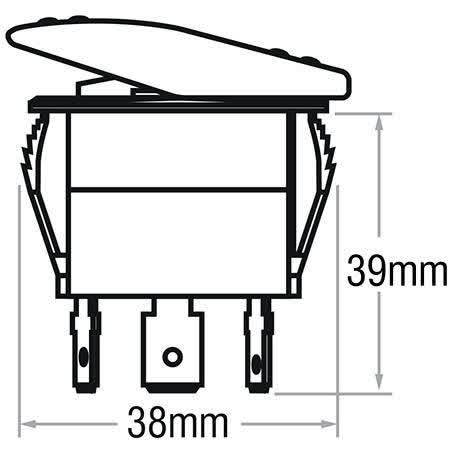

This switch uses a 6-terminal layout and a rocker-style body with a 36x20mm mounting hole requirement. Those dimensions are important when checking a panel or dash opening, because the fit is based on the cut-out size and the switch body shape, not just the overall appearance of the switch.

For buyers replacing a winch control switch or planning a custom electrical panel, the key identifiers here are the Drivetech 4x4 brand, DT-11007 part number, 12 or 24 volt rating, blue illumination, and 20A @ 12V contact rating. Keep those details in mind when comparing against an existing switch or wiring plan.

Key Features

• Rocker winch switch
• Mom On - Off - Mom On / SPDT action
• Blue illuminated lamp
• Suitable for 12 or 24 volt systems
• 36 x 20mm mounting hole

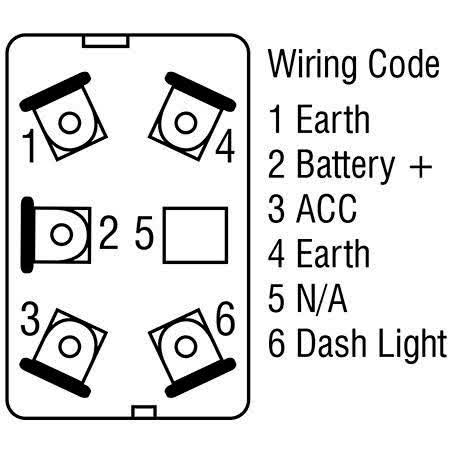

• 6 terminals

Specifications

• Brand: Drivetech 4x4
• Part number: DT-11007
• Product type: Switch
• Switch type: Rocker
• Switch action: Mom On - Off - Mom On - SPDT
• Number of positions: 3
• Number of terminals: 6
• Number of poles: 1

Application and Buying Notes

Before ordering, check the existing switch opening and wiring requirements against the listed 36x20mm mounting hole and 6-terminal layout. A rocker switch with Mom On - Off - Mom On action is used differently to a standard on/off switch, so the centre-off position and momentary operation need to match the circuit you are working with.

The voltage rating is 12 or 24 volt, and the contact rating is 20A @ 12V. Those numbers matter when comparing the switch to the load and the system voltage already in the vehicle or panel. If the circuit is already protected and wired for a different style of switch, confirm the wiring arrangement before fitting the replacement.

Blue illumination can help with visibility in low-light conditions, but the switch still needs to be matched correctly to the panel opening and terminal count. The 1-pole SPDT design and 3 positions indicate the intended control function, so it is worth checking the original switch markings or wiring diagram before purchase.

This is sold as a single switch, measured each, and backed by a one year warranty. Even when the dimensions look close, a 36x20mm cut-out should still be verified carefully, because panel trims and surround shapes can affect whether the switch seats properly.

If you are replacing an existing winch switch, keep the part number DT-11007 and the Drivetech 4x4 name handy when comparing options. Matching the part number is one of the safest ways to confirm you are looking at the same style of switch, especially when the action, illumination and terminal count all need to line up.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11007 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Number of Terminals 6, Switch Action Mom On - Off - Mom On - SPDT, Lamp Colour/s Blue, Number of Poles 1, Switch Type Rocker, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Additional published details for cross-checking include Part No. DT-11007, Brand DRIVETECH 4X4, Description Drivetech 4x4 Rocker Winch Switch Mom On/Off Mom On SPDT 12 or 24V Blue Illuminated (Contacts Rated 20A @ 12V), Mount Width 20mm, Power Rating (Amp) 20, Voltage 12 or 24, Mount Length 36mm, Number of Positions 3, Switch Illumination Illuminated, Product Group 1 AUTO ELEC ACCESSORIES.

Drivetech 4x4 Rocker Winch Switch Mom On/Off Mom On SPDT 12 or 24V Blue Illuminated (Contacts Rated 20A @ 12V). Part number DT-11007 should be checked first. Listed voltage is 12 or 24. Listed output rating is 20. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11007, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 or 24 and output 20 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility using the part number DT-11007, the 36x20mm mounting hole, the 6-terminal layout, and the 12 or 24 volt Mom On - Off - Mom On SPDT specification before ordering.

FAQ

What is the part number for this switch?

The part number is DT-11007.

What type of switch action does it have?

It is a Mom On - Off - Mom On SPDT rocker switch with 3 positions.

What voltage is it suitable for?

It is listed for 12 or 24 volt systems.

How many terminals does the switch have?

It has 6 terminals.

What size mounting hole is required?

The listed mounting hole size is 36 x 20mm.

Is the switch illuminated?

Yes. It has blue illumination.
