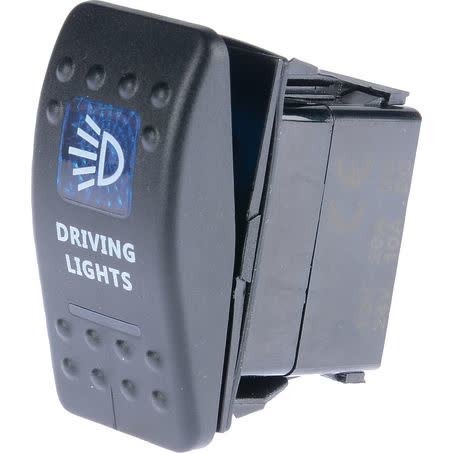

Drivetech 4X4 Rocker Driving Light Switch On-off Spst 12 Or 24V Blue Illumination DT-11008

The Drivetech 4x4 Rocker Driving Light Switch is a rocker-style switch for driving light control, with an On-Off SPST action and blue illumination. It is marked for 12 or 24 volt use and carries part number DT-11008, making it straightforward to identify when comparing against an existing switch or wiring layout.

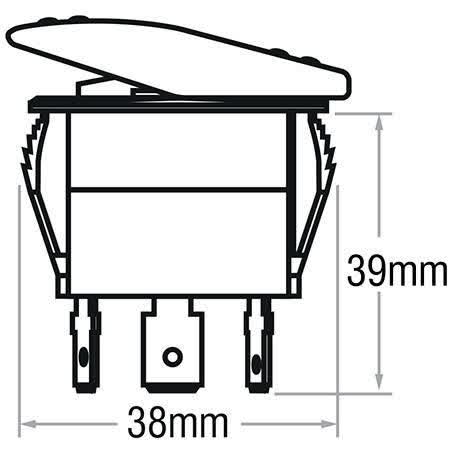

This switch uses 5 terminals, has 1 pole, and is rated at 20A at 12V. The mounting opening is 36 x 20mm, with a 36mm mount length and 20mm mount width, so the physical cut-out should be checked carefully before ordering a replacement or planning a new install.

For buyers wanting a neat cabin switch for accessory lighting, the key points are the illuminated blue lens, the simple two-position On-Off operation, and the 12 or 24 volt electrical compatibility. The unit is sold each and includes a one year warranty.

Key Features

• Driving light switch
• On-Off SPST operation
• Blue illumination
• Suitable for 12 or 24 volt systems
• 36 x 20mm mounting hole
• 5 terminal rocker switch

Specifications

• Brand: Drivetech 4x4
• Part number: DT-11008
• Type: Switch
• Switch type: Rocker
• Switch action: On-Off - SPST
• Number of poles: 1
• Number of terminals: 5
• Number of positions: 2

Application and Buying Notes

Before buying, confirm the switch cut-out matches the listed 36 x 20mm mounting hole. The physical size matters as much as the electrical rating, especially if you are replacing an existing dashboard switch rather than fitting one into a fresh panel opening.

Check that your circuit matches the 12 or 24 volt specification and that the switching arrangement needed is On-Off SPST. This is a single pole, two-position rocker switch, so it suits a straightforward on/off control rather than a multi-circuit or changeover arrangement.

The 20A power rating gives a clear reference point for accessory selection, but the load should still be matched to the wiring, relay setup, and overall circuit design. For driving lights, the switch is commonly used as the control side of the circuit rather than as the sole current path for the lights themselves.

The 5-terminal layout is another detail worth verifying against your existing loom or installation plan. If you are replacing a switch, compare the terminal count, terminal layout, and the part number DT-11008 before making a decision, because rocker switches can look similar while differing internally.

Blue illumination is useful if you want the switch to be visible in low light, but the appearance of the lamp does not change the electrical fitment requirements. Confirm the panel cut-out, voltage, and switching action first, then check the illumination style suits the rest of your dash or accessory panel.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11008 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Number of Terminals 5, Switch Action On - Off - SPST, Lamp Colour/s Blue, Number of Poles 1, Switch Type Rocker, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Additional published details for cross-checking include Part No. DT-11008, Brand DRIVETECH 4X4, Description Drivetech 4x4 Rocker Driving Light Switch On Off SPST 12 or 24V Blue Illumination (Contacts Rated 20A @ 12V), Mount Width 20mm, Power Rating (Amp) 20, Voltage 12 or 24, Mount Length 36mm, Number of Positions 2, Switch Illumination Illuminated, Product Group 1 AUTO ELEC ACCESSORIES.

Drivetech 4x4 Rocker Driving Light Switch On Off SPST 12 or 24V Blue Illumination (Contacts Rated 20A @ 12V). Part number DT-11008 should be checked first. Listed voltage is 12 or 24. Listed output rating is 20. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11008, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 or 24 and output 20 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Always confirm fitment by matching part number DT-11008, the 36 x 20mm mounting hole size, and the required 12 or 24 volt On-Off SPST function before purchase.

FAQ

What type of switch is this?

It is a rocker switch with On-Off SPST action and 1 pole. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.

What voltage can it be used with?

It is listed for 12 or 24 volt systems. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.

What is the mounting size?

The mounting hole size is 36 x 20mm, with a 36mm mount length and 20mm mount width. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.

How many terminals does it have?

It has 5 terminals. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.

Is the switch illuminated?

Yes. It has blue illumination and is listed as illuminated. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is DT-11008. For this listing, part number DT-11008 is the main reference point. Listed voltage is 12 or 24. Listed output rating is 20. These details should still be checked against the original unit before ordering.
