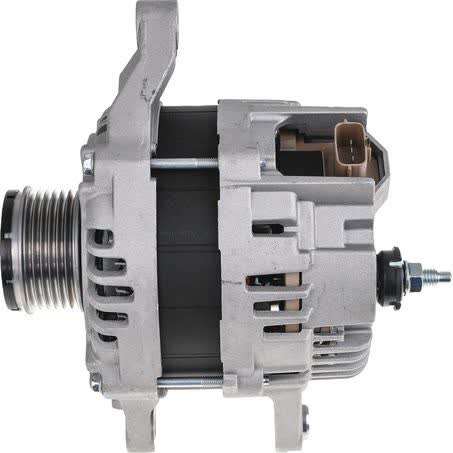

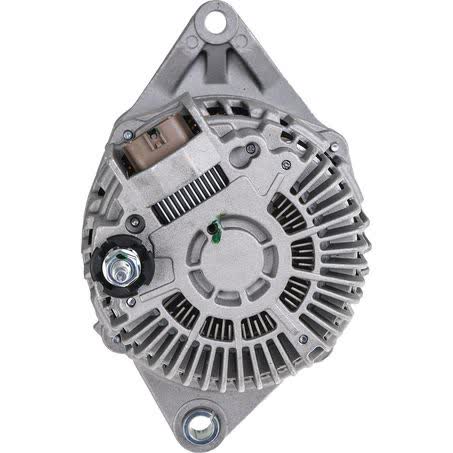

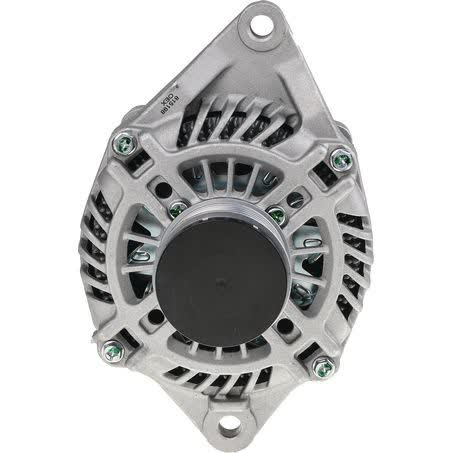

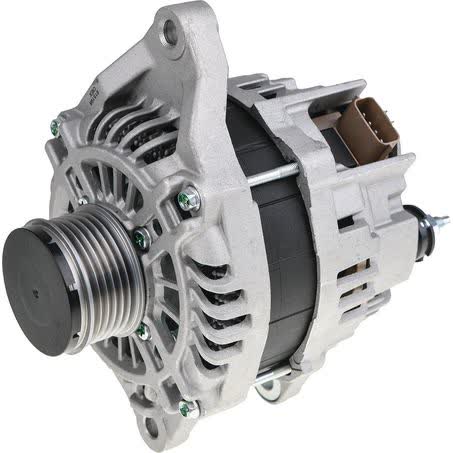

OEX Alternator 12V 130A Mitsubishi Style MXA2110

The OEX MXA2110 is a new 12V alternator rated at 130A, built in Mitsubishi style and supplied as a twin leg mount unit. It uses an internal regulator, a 6 groove pulley, and has a 55mm pulley outside diameter, with 184mm mounting centre to centre.

This alternator is listed for Mitsubishi applications, with fitment references including Mitsubishi Lancer model years from 2007 through 2017 in the supplied data. Because there are two identical looking alternators with different regulator functions, confirmation by OE number is recommended before purchase.

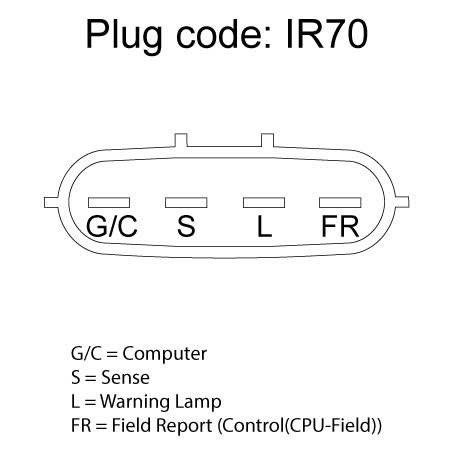

Key physical details matter on this unit: inside mounting legs are 55mm, the pivot hole diameter is 10mm, and the adjusting hole diameter is 10mm. The part number is MXA2110 and the pin code is IR70, which are useful checkpoints when matching the replacement to the vehicle.

Key Features

• New alternator
• 12V system
• 130A output
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley

Specifications

• Brand: OEX
• Part number: MXA2110
• Type: Alternator
• Voltage: 12V
• Power rating: 130A
• New / remanufactured: New
• Regulator type: Internal
• Pulley outside diameter: 55mm

Fitment guidance

• Mitsubishi Lancer
• Mitsubishi Lancer 2007
• Mitsubishi Lancer 2008
• Mitsubishi Lancer 2009
• Mitsubishi Lancer 2010
• Mitsubishi Lancer 2011
• Mitsubishi Lancer 2012
• Mitsubishi Lancer 2013

Application and Buying Notes

Before ordering, match the part number MXA2110 and confirm the OE number on the vehicle’s original alternator. That check is important here because the supplied note states there are two identical looking alternators with different regulator functions, even though they may appear the same at a glance.

Physical fit is just as important as electrical fit. This unit has a twin leg mount, 184mm mounting centre to centre, 55mm inside mounting legs, and 10mm pivot and adjusting holes, so those dimensions need to line up with the existing installation points.

The electrical side should also be checked carefully. This alternator is 12V with a 130A rating and an internal regulator, which means it needs to match the vehicle’s charging system setup and the application details, not just the general shape of the unit.

If the vehicle is Mitsubishi-based, use the listed application information as a guide rather than a final answer. The supplied fitment references point to Mitsubishi Lancer model years 2007 through 2017, but the OE number remains the key confirmation point for the correct regulator function and overall replacement match.

The pulley arrangement is another useful identifier. This alternator uses a 6 groove pulley with a 55mm outside diameter, so the belt setup on the vehicle should be checked against the existing part before fitting.

At 5.86kg, this is a substantial rotating electrical component, and it is best matched by specification rather than appearance alone. If there is any doubt about the current alternator, compare the OE number, mounting style, pulley groove count, voltage, and amperage before committing to the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2110 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 55mm, Pivot Hole Diameter 10, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, Mount Cnt to Cnt 184mm.

Additional published details for cross-checking include Weight 5.86kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXA2110, Brand OEX, Description OEX Alternator 12V 130A Mitsubishi Style - See Note, Adjusting Hole Diameter 10, Pin Code IR70, Power Rating (Amp) 130, Pulley Section 6 Groove, Suits Unit Make Mitsubishi.

OEX Alternator 12V 130A Mitsubishi Style - See Note. Part number MXA2110 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2110, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI LANCER, MITSUBISHI LANCER 2007, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment with the OE number and the vehicle’s alternator details before purchase, as two identical looking Mitsubishi style alternators can have different regulator functions. Match part number MXA2110, mounting measurements, pulley specification, and application details to the vehicle.

FAQ

What is the part number for this alternator?

The part number is MXA2110.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and amperage does it have?

It is a 12V alternator with a 130A power rating.

What regulator type does it use?

It uses an internal regulator.

What pulley setup does it have?

It has a 6 groove pulley with a 55mm outside diameter.

How should fitment be confirmed?

Confirm by OE number and compare the mounting details, pulley specification, and application information. The supplied note says there are two identical looking alternators with different regulator functions.
