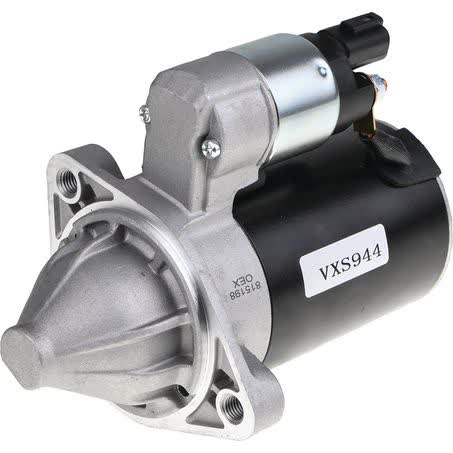

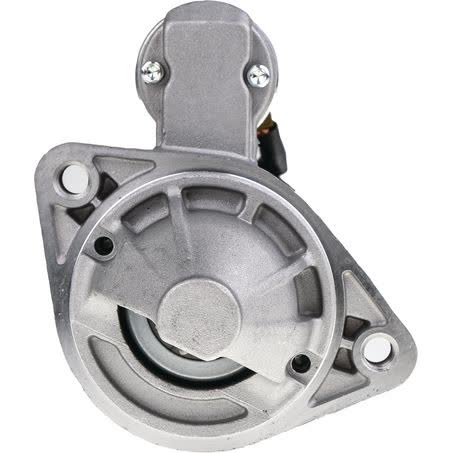

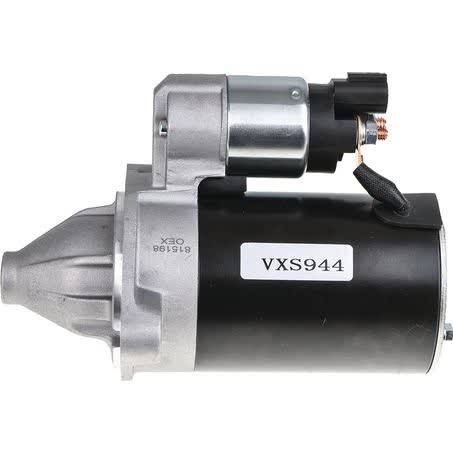

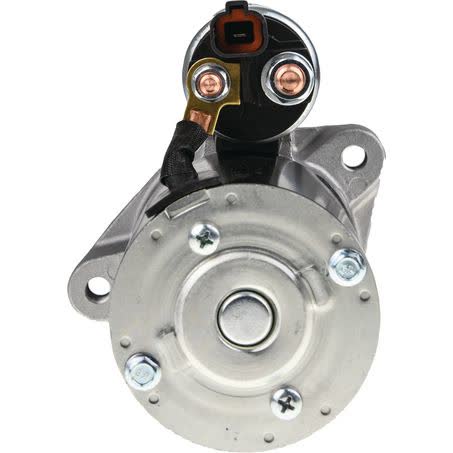

OEX Starter Motor 12V 8 Tooth CW Valeo Style VXS944

The OEX Starter Motor VXS944 is a new 12V starter motor in Valeo style, with clockwise rotation, 8 teeth, and a 2-hole starter mount. Key dimensions include an overall length of 186mm, flange diameter of 75mm, mount hole diameter of M10x1.25, and mount centre to centre of 100mm.

This unit is listed at 2.88kg and uses a 28mm pinion diameter with 14mm pinion at rest. It is supplied as a starter motor in the rotating electrical group and is designed to suit Valeo unit applications where the listed mounting style and physical dimensions match.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with products sourced from ISO certified factories. The warranty listed for this starter motor is 3 years for passenger use and 1 year for commercial use, which is useful context when comparing replacement options.

Key Features

• New starter motor
• 12V electrical system
• 8 tooth pinion
• Clockwise rotation
• Valeo style unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part no.: VXS944
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Suits unit make: Valeo
• Starter mount type: 2 hole

Fitment guidance

• HYUNDAI i20
• HYUNDAI i20 2008 to 2015 applications shown
• KIA Picanto
• KIA Picanto 2016 to 2017 applications shown

Application and Buying Notes

Before ordering, match the part number VXS944 and check the starter layout against your original unit. This starter is a Valeo style, 12V, clockwise rotating unit with an 8 tooth pinion, so the electrical specification and pinion count need to line up with the vehicle's original starter arrangement.

Physical dimensions matter just as much as the voltage rating. Confirm the 2-hole mount type, M10x1.25 mount hole diameter, 100mm mount centre to centre, 75mm flange diameter, and 186mm overall length against the removed starter before purchase, especially where clearance around the bell housing is tight.

The listed fitment references point to Hyundai i20 and Kia Picanto applications, including i20 years shown from 2008 through 2015 and Picanto years shown from 2016 through 2017. Treat those as application guidance only and still compare the old unit, connector arrangement, and mounting points to make sure the replacement matches the vehicle you are working on.

If you are replacing a failed starter, keep the old unit until the new one is checked side by side. The 28mm pinion diameter, 14mm pinion at rest, and 2.88kg weight are useful comparison points when identifying whether the replacement is the same style of assembly and not simply a similar-looking part.

For commercial use, the listed warranty is 1 year, while passenger use is listed at 3 years. Warranty terms do not replace fitment checks, so the safest approach is to confirm the starter’s dimensions, 12V rating, rotation direction, and part number before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS944 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.25, Overall Length 186mm, Pinion Diameter 28mm, Suits Unit Make Valeo, Item Type Starter Motor, New / Reman. New, Weight 2.88kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXS944, Brand OEX, Description OEX Starter Motor 12V 8Th CW Valeo Style, Flange Diameter 75mm, Number of Teeth 8, Pinion at Rest 14mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 100mm.

OEX Starter Motor 12V 8Th CW Valeo Style. Part number VXS944 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS944, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number VXS944, the Valeo style application, 12V rating, clockwise rotation, 8 tooth pinion, and the listed mounting dimensions before purchase or installation.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

The listed voltage is 12V. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What is the part number?

The part number listed is VXS944. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What type of rotation does it have?

It is listed as clockwise rotation, shown as CW. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What vehicles are referenced in the fitment data?

The fitment references show Hyundai i20 applications and Kia Picanto applications, including i20 years from 2008 to 2015 and Picanto years from 2016 to 2017. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS944 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.
