OEX Alternator 12V 80A Mitsubishi Style MXA9605

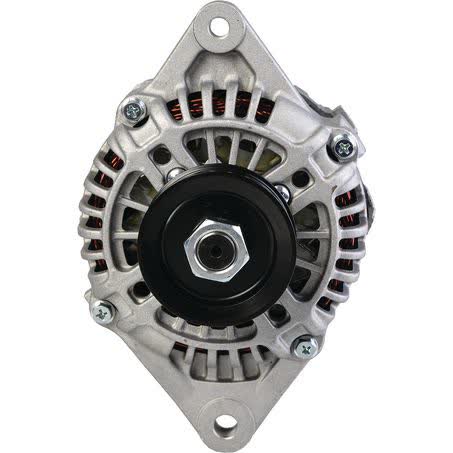

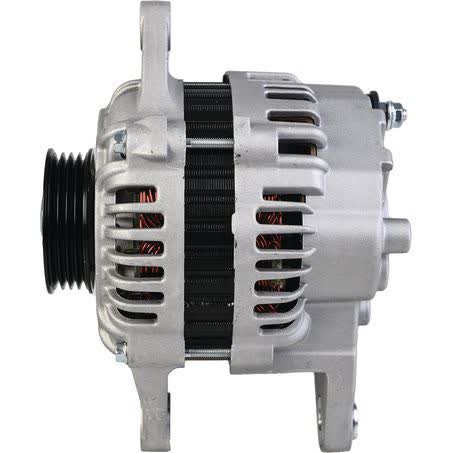

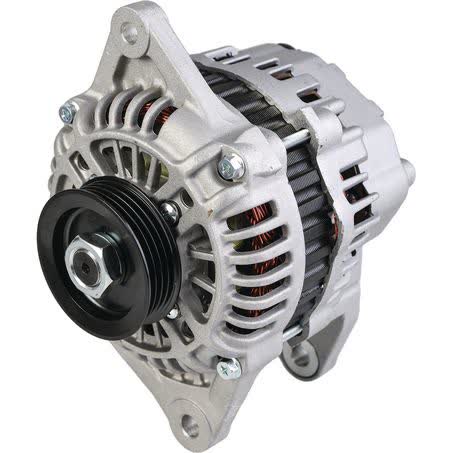

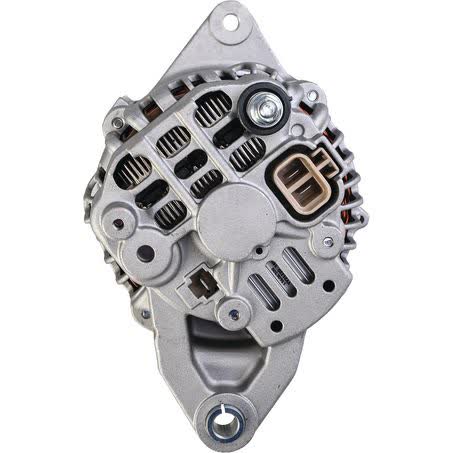

The OEX Alternator MXA9605 is a new 12V, 80A unit built in Mitsubishi style and supplied as an alternator for rotating electrical applications. It is listed with an internal regulator, twin leg alternator mount, 4 groove pulley section, and 60mm pulley outside diameter, so it is important to compare the mounting and pulley details against the original unit before ordering.

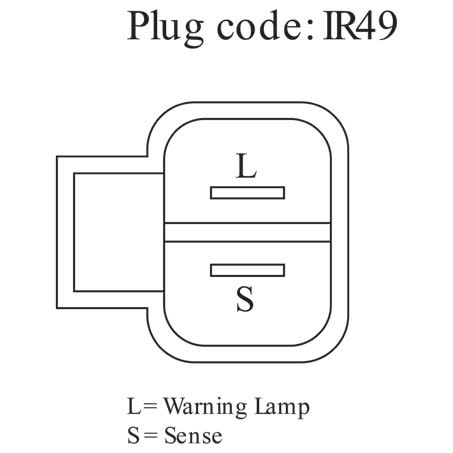

This alternator is identified with part number MXA9605 and pin code IR49. Key physical dimensions include 67mm inside mounting legs, 176mm centre-to-centre mounting, a 10.5mm pivot hole diameter, and an 8mm adjusting hole diameter. The unit weighs 4.58kg, which can help when checking the replacement against the existing assembly.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. Warranty coverage is listed as 3yr Passenger and 1yr Commercial, which gives a clear service context for buyers comparing replacement options for Mitsubishi-style applications.

Key Features

• New alternator, not remanufactured
• 12V output with 80A power rating
• Internal regulator type
• Twin leg alternator mount
• 4 groove pulley section
• Mitsubishi style unit

Specifications

• Brand: OEX
• Product type: Alternator
• Unit of measure: Each
• Voltage: 12V
• Power rating: 80A
• New / Reman.: New
• Part No.: MXA9605
• Description: OEX Alternator 12V 80A Mitsubishi Style

Compatibility guidance

• KUBOTA: SERIES-M, SERIES-M 2009, SERIES-M 2010, SERIES-M 2011, SERIES-M 2012, plus other listed applications

Application and Buying Notes

Before fitting, check the unit shape and mounting points carefully against the original alternator. This OEX unit is a Mitsubishi style alternator with twin leg mounting, 67mm inside mounting legs, 176mm centre-to-centre mounting, a 10.5mm pivot hole, and an 8mm adjusting hole, so those dimensions need to match the vehicle or machine installation.

The pulley and electrical setup also need to line up with the existing system. This alternator has a 60mm pulley outside diameter, a 4 groove pulley section, and an internal regulator. If the original plug has only a single wire, an HXK-36 adaptor plug is required, so connector style should be confirmed before purchase.

The listed fitment information is not broad enough to confirm every application from the part number alone, so the safest approach is to compare the original part number MXA9605, the Mitsubishi-style mounting, and the alternator dimensions against the old unit. The weight of 4.58kg can also be a useful cross-check when identifying the correct replacement.

Warranty coverage is 3yr Passenger and 1yr Commercial, but warranty does not replace the need to confirm fitment. If the alternator shape, pulley section, regulator type, or plug arrangement differs from the original, fitment should be checked again before installation to avoid unnecessary downtime.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA9605 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 67mm, Pivot Hole Diameter 10.5, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, Mount Cnt to Cnt 176mm.

Additional published details for cross-checking include Weight 4.58kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXA9605, Brand OEX, Description OEX Alternator 12V 80A Mitsubishi Style, Adjusting Hole Diameter 8, Pin Code IR49, Power Rating (Amp) 80, Pulley Section 4 Groove, Suits Unit Make Mitsubishi.

OEX Alternator 12V 80A Mitsubishi Style. Part number MXA9605 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA9605, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number MXA9605, Mitsubishi-style application details, mounting dimensions, pulley specification, and plug arrangement before purchase. If the original plug has only a single wire, an HXK-36 adaptor plug is required.

FAQ

What is the part number for this alternator?

The part number is MXA9605. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with an 80A power rating. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It uses an internal regulator. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.

Does it suit Mitsubishi applications?

It is listed as Mitsubishi style and suits unit make Mitsubishi. Final fitment still needs to be confirmed by matching the original part number and mounting details. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.

Is there anything special to check with the plug connection?

Yes. If the original plug has only a single wire, an HXK-36 adaptor plug is required. For this listing, part number MXA9605 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include KUBOTA SERIES-M, KUBOTA SERIES-M 2009, KUBOTA SERIES-M 2010. These details should still be checked against the original unit before ordering.
