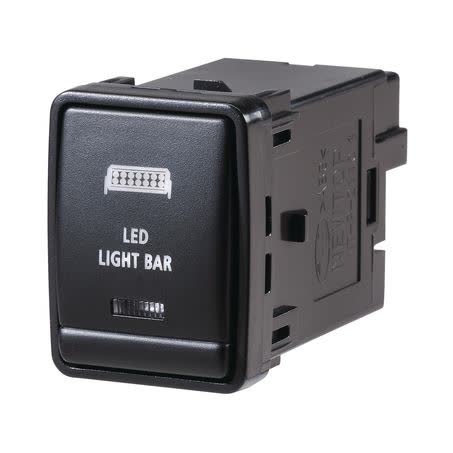

Drivetech 4X4 OE Style Push Button Switch Lightbar 12V 3A DT-11099

The Drivetech 4x4 OE Style Push Button Switch Lightbar is a 12V, 3A switch with blue LED illumination and an on-off SPST action. It is listed under part number DT-11099 and measures 30mm x 23mm, which is useful to confirm before fitting to any dash or switch panel arrangement.

This switch is described as suiting Nissan applications, with specific coverage for Pathfinder R52 series 2012-current, Navara NP300 series 2015-current, and X-Trail T32 series 2014-current. If you are matching an existing factory-style switch opening or replacing a similar accessory switch, the 30mm x 23mm mount size and the wiring layout are the first details to check.

Wiring is specified as Black for earth, Blue for dash light circuit optional, Red for 12V input, and Green for 12V output. That makes it important to confirm both the physical opening and the vehicle’s electrical arrangement before installation, especially when the switch is being used for a lightbar circuit.

A one-year warranty is listed, and the product is sold as a single each item. For buyers needing a neat OE-style push button switch with a clearly defined 12V, 3A rating, the part number DT-11099 is the key reference to match against the vehicle and wiring setup.

Key Features

• 12V push button switch
• 3A power rating
• Blue LED illumination
• On-Off SPST action
• Mount size: 30mm x 23mm
• Part number: DT-11099

Specifications

• Brand: Drivetech 4x4
• Product type: Switch
• Unit of measure: Each
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Illumination: Blue LED

Listed fitment

• Nissan Pathfinder R52 series 2012-current
• Nissan Navara NP300 series 2015-current
• Nissan X-Trail T32 series 2014-current

Application and Buying Notes

Before ordering, confirm the switch opening is 30mm x 23mm and that the vehicle uses a 12V system. Those two checks matter because the listed dimensions and electrical rating are the main identifiers for a proper match, especially where the switch is intended for a dash-mounted lightbar control.

The 3A rating is suitable for a low-current switch application, so it should be checked against the load and the way the accessory is wired. If the lightbar or circuit being controlled draws more than the switch is rated to handle, an appropriate relay arrangement may be needed in the broader wiring setup.

The wiring code is simple but should still be followed carefully: Black is earth, Red is 12V input, and Green is 12V output. Blue is listed for dash light circuit and is optional, so it may be used where illumination is required to tie in with the dash lighting circuit.

Because the product is described for Nissan applications, the best way to narrow the match is to compare the part number DT-11099, the 30mm x 23mm mount size, and the listed vehicle series. That approach is safer than relying on appearance alone, as OE-style switches can look similar while differing in size or pin configuration.

If you are replacing a switch that already fits the opening, check the rear connector arrangement and existing wiring before installation. The blue LED illumination and SPST on-off action are part of the product specification, but the dash opening, circuit type, and accessory load still need to line up with the vehicle’s setup.

For workshop or DIY fitting, having the vehicle model series, year range, and existing switch dimensions on hand will save time. The listed applications are Pathfinder R52 2012-current, Navara NP300 2015-current, and X-Trail T32 2014-current, so these are the first vehicles to compare against before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11099 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11099, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Lightbar, Suits Nissan, Mount Width 23mm, Switch Action On - Off - SPST, Mount Length 30mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Lightbar, Suits Nissan. Part number DT-11099 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11099, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number DT-11099, the 30mm x 23mm mounting size, the 12V 3A rating, and the listed Nissan applications before buying.

FAQ

What is the part number for this switch?

The listed part number is DT-11099.

What vehicles are listed as compatible?

Listed fitment is Nissan Pathfinder R52 series 2012-current, Navara NP300 series 2015-current, and X-Trail T32 series 2014-current.

What are the switch dimensions?

The mount size is listed as 30mm x 23mm, with mount width 23mm and mount length 30mm.

What electrical rating does the switch have?

The switch is rated at 12V and 3A.

What is the switch action?

It is listed as On-Off SPST, with a push switch type.

What does the wiring code mean?

Black is earth, Red is 12V input, Green is 12V output, and Blue is for the dash light circuit and is optional.
