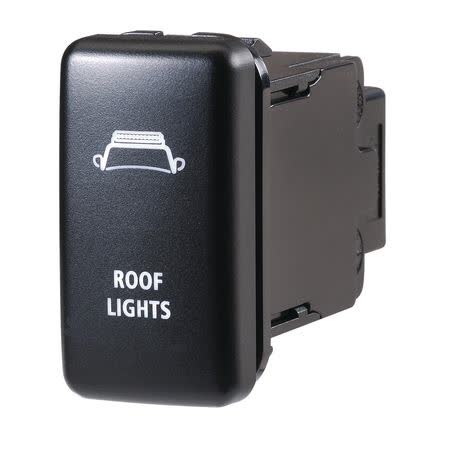

Drivetech 4X4 OE Style Push Button Switch 12V 3A DT-11084

The Drivetech 4x4 OE Style Push Button Switch is a 12V, 3A switch with blue LED illumination and an on-off SPST action. It is listed under part number DT-11084 and measures 39mm x 21mm, so it suits installations where a compact OE-style switch is required.

This switch is described as suitable for Toyota applications, including Prado 120 series 2003-2009, LandCruiser 100 series 1998-2007, LandCruiser 79 series New Model, FJ Cruiser 2010-2013, KUN26R, GGN15R, GGN25R series, HiLux 2005-2013, and Hiace 2005-2013. The fitment information supplied is specific, so it is worth checking the model, year range, and dash opening before ordering.

The wiring information provided is Black for earth, Blue for dash light circuit as optional, Red for 12V input, and Green for 12V output. That makes the switch straightforward to assess against the vehicle’s accessory circuit before it is fitted into a Toyota dash panel or roof light setup.

Key Features

• OE style push button switch
• Blue LED illumination
• 12V operation
• 3A power rating
• On-off SPST action
• Compact 39mm x 21mm size

Specifications

• Brand: Drivetech 4x4
• Part No.: DT-11084
• Type: Switch
• Switch type: Push
• Switch action: On - Off - SPST
• Voltage: 12V
• Power rating: 3A
• Switch illumination: Blue LED Illumination

Verified fitment applications

• Toyota Prado 120 series 2003-2009
• Toyota LandCruiser 100 series 1998-2007
• Toyota LandCruiser 79 series New Model
• Toyota FJ Cruiser 2010-2013
• Toyota KUN26R series
• Toyota GGN15R series
• Toyota GGN25R series
• Toyota HiLux 2005-2013

Application and Buying Notes

Before buying, confirm the switch opening and circuit requirements against the listed dimensions of 39mm x 21mm and the 12V, 3A rating. Those measurements matter because an OE-style switch needs to suit both the dash aperture and the load it is expected to control, especially when it is being used for a roof light or other accessory circuit.

The supplied wiring colours are a useful checkpoint during installation: Black is earth, Red is 12V input, Green is 12V output, and Blue is for the dash light circuit if you want illumination tied in. If the dash illumination function is not required, the blue wire is noted as optional, but the remaining connections still need to be matched correctly to the vehicle’s wiring.

If you are matching this switch to a Toyota application, use the vehicle model and series alongside the part number DT-11084 rather than relying on appearance alone. The listing covers several specific Toyota ranges, including Prado 120 series, LandCruiser 100 series, LandCruiser 79 series New Model, FJ Cruiser 2010-2013, HiLux 2005-2013, and Hiace 2005-2013, so confirming the exact vehicle build is the safest way to avoid a mismatch.

This is a compact push switch with blue LED illumination, so it suits buyers who want a factory-style look without overcomplicating the install. Even so, the 3A power rating is the key limit to respect. If the accessory you want to control draws more than that, the switch should not be treated as a direct substitute without checking the circuit arrangement and any required relay setup.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11084 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11084, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Roof Light, Suits Toyota, Mount Width 21mm, Switch Action On - Off - SPST, Mount Length 39mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Roof Light, Suits Toyota. Part number DT-11084 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11084, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm fitment by checking part number DT-11084, the listed Toyota application, and the dash opening size of 39mm x 21mm before purchase. If your vehicle, wiring, or accessory load differs from the supplied details, verify the installation requirements first.

FAQ

What is the part number for this switch?

The part number listed is DT-11084.

What are the electrical ratings?

It is a 12V switch with a 3A power rating.

What size opening does it use?

The listed mount dimensions are 39mm long by 21mm wide.

Which Toyota vehicles are listed as compatible?

The listed applications include Prado 120 series 2003-2009, LandCruiser 100 series 1998-2007, LandCruiser 79 series New Model, FJ Cruiser 2010-2013, KUN26R, GGN15R, GGN25R series, HiLux 2005-2013, and Hiace 2005-2013.

How is the switch wired?

The supplied wiring code is Black for earth, Blue for dash light circuit as optional, Red for 12V input, and Green for 12V output.

Does it come with a warranty?

Yes. The listed warranty is one year.
