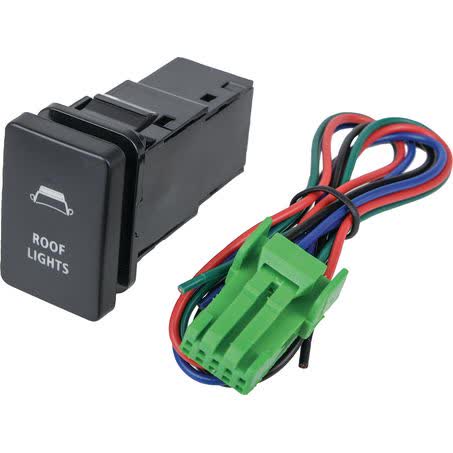

Drivetech 4X4 OE Style Push Button Switch Roof Light 12V 3A DT-11082

The Drivetech 4x4 OE Style Push Button Switch is a 12V, 3A switch supplied as each, with a compact 32.5mm x 22mm mounting size and blue LED illumination. It is listed as Part No. DT-11082 and is designed as an OE style push-button setup for roof light control applications.

This switch uses an On - Off - SPST action and is identified for Toyota and Mitsubishi applications, including Prado 150 series 2010-2018, Landcruiser 200 series 2008-current, Rav4 2006-2011, HiLux GUN series 09/2015-current, and Triton 2015-current. Those application notes make the part number and mounting size important checks before ordering.

Wiring is specified as Black: Earth, Blue: Dash light circuit (optional), Red: 12V input, and Green: 12V output. That gives a clear starting point for matching the switch to an existing circuit, but the final check should always be against the vehicle’s dash opening, wiring, and intended load.

Key Features

• OE style push button switch
• 12V operating voltage
• 3A power rating
• Blue LED illumination
• On - Off - SPST switch action
• Mount size: 32.5mm x 22mm

Specifications

• Brand: Drivetech 4x4
• Item type: Switch
• Unit of measure: Each
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Illumination: Blue LED

Known application notes

• Toyota Prado 150 series 2010-2018
• Toyota Landcruiser 200 series 2008-current
• Toyota Rav4 2006-2011
• Toyota HiLux GUN series 09/2015-current
• Mitsubishi Triton 2015-current

Application and Buying Notes

When choosing this switch, confirm the panel opening is suitable for the stated 32.5mm x 22mm mount size and that the circuit is intended for a 12V, 3A switch. Those two points matter because a push-button switch can look similar to other OE style units while still having a different cut-out or current limit.

The listed wiring code is straightforward: Black for earth, Red for 12V input, Green for 12V output, and Blue for the dash light circuit if you want illumination tied into the vehicle lighting circuit. That blue dash light connection is optional, so if you are not using it, the switch still needs the correct earth, feed, and output wiring for the roof light circuit.

Application notes are provided for Toyota and Mitsubishi models, but the exact dash arrangement can vary by model year and trim. For that reason, the most reliable buying check is to compare the part number DT-11082, the mount width of 22mm, the mount length of 32.5mm, and the vehicle’s existing switch position before fitting.

The 3A rating is an important limit to respect. If the roof light circuit or accessory draw is higher than that, the switch may not be suitable on its own and may need to control a relay rather than carry the full load directly. Matching the switch to the job helps avoid wiring issues and poor fitment decisions.

Blue LED illumination is useful for night visibility, but it is still worth confirming how your vehicle’s dash illumination circuit is configured before connecting the optional blue wire. If the vehicle uses different lighting control logic, the switch can still be used, but the illumination function should be checked carefully during installation.

If you are replacing an existing switch, compare the cut-out shape, locking style, and terminal layout against the original part rather than relying on appearance alone. The OE style housing and application notes help narrow it down, but the safest match is always the physical size, wiring layout, and part number together.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11082 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. DT-11082, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 OE Style Push Button Switch Roof Light, Suits Toyota and Mitsubishi, Mount Width 22mm, Switch Action On - Off - SPST, Mount Length 32.5mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Drivetech 4x4 OE Style Push Button Switch Roof Light, Suits Toyota and Mitsubishi. Part number DT-11082 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11082, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching Part No. DT-11082, the 32.5mm x 22mm mounting size, the 12V / 3A rating, and the listed Toyota or Mitsubishi application details before purchase.

FAQ

What type of switch is this?

It is an OE style push button switch with On - Off - SPST action.

What voltage and current rating does it have?

The switch is rated at 12V and 3A.

What is the mounting size?

The listed mount size is 32.5mm x 22mm, with a mount width of 22mm and mount length of 32.5mm.

Does it have illumination?

Yes. It has blue LED illumination.

Which vehicles are listed for this switch?

Listed applications include Toyota Prado 150 series 2010-2018, Landcruiser 200 series 2008-current, Rav4 2006-2011, HiLux GUN series 09/2015-current, and Mitsubishi Triton 2015-current.

What wiring details are provided?

The wiring code is Black: Earth, Blue: Dash light circuit optional, Red: 12V input, and Green: 12V output.
