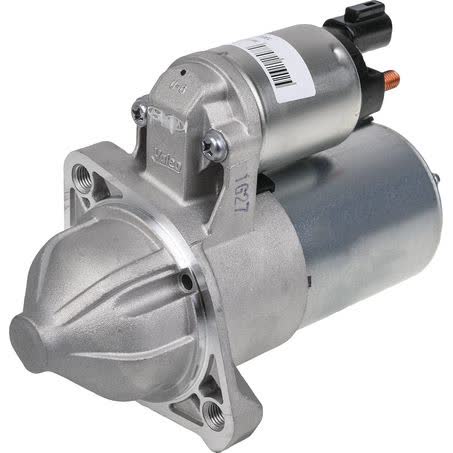

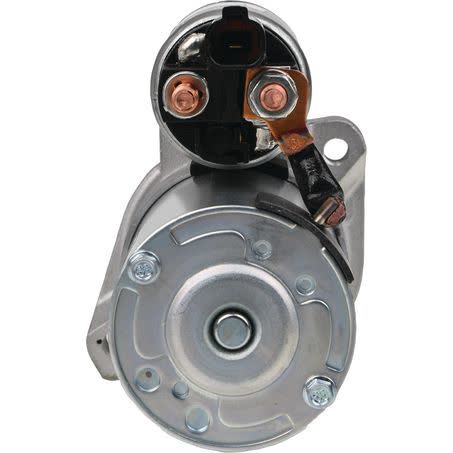

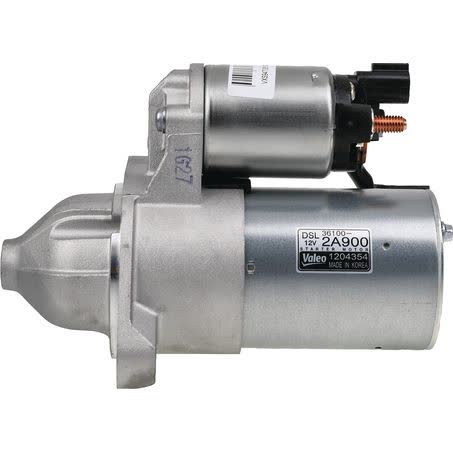

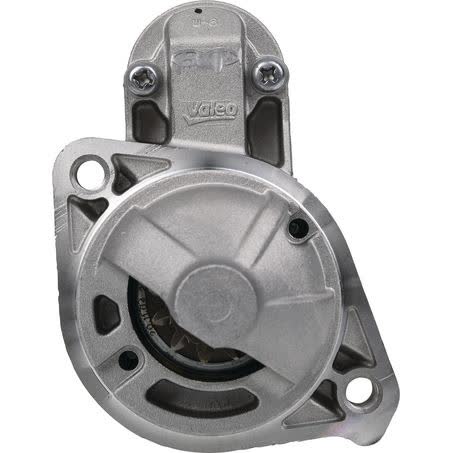

OEX Starter Motor 12V 12T CW Valeo VXS947

The OEX Starter Motor VXS947 is a new 12V starter motor with 12 teeth, clockwise rotation, and a 1.7kW power rating. It is listed for Valeo units and is built with a 2-hole starter mount, a 77mm flange diameter, and a 192mm overall length.

Key dimensions on this unit include an M10x1.25 mount hole diameter, 103mm mount centre to centre, a 36mm pinion diameter, and a 16mm pinion at rest. These measurements matter when comparing the starter to the original unit, especially where mounting style and clearance are critical.

This starter motor is supplied as an OEX brand part and carries part number VXS947. It is a new rotating electrical component, weighing 3.0kg, and is backed by a three-year warranty for added confidence when matching the application and installing the correct replacement.

Key Features

• 12V starter motor
• 12 teeth, clockwise rotation
• 1.7kW power rating
• New unit
• Designed for Valeo applications
• 2-hole starter mount

Specifications

• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 12
• Starter mount type: 2 hole
• Mount hole diameter: M10x1.25
• Mount centre to centre: 103mm
• Overall length: 192mm

Fitment guidance

• Fitment data supplied references Hyundai i30 applications, including 2016, 2017, 2018, 2019 and 2020 entries.
• Use the part number VXS947 and the listed dimensions to confirm the replacement against the vehicle’s original starter before ordering.
• Check that the unit make is Valeo, the rotation is clockwise, and the starter uses a 2-hole mount with the listed measurements.

Application and Buying Notes

When replacing a starter motor, the safest check is always the original part number first. This unit is identified as VXS947 and is described as a 12V, 12-tooth, clockwise starter for Valeo applications, so the part number, rotation, and tooth count should all be matched carefully before purchase.

Mounting details are just as important as the electrical rating. The listed M10x1.25 mount hole diameter, 103mm mount centre to centre, 77mm flange diameter, and 192mm overall length need to line up with the vehicle’s existing starter position and bellhousing arrangement. A starter can be the correct voltage and still be wrong if the mounting pattern does not match.

The 1.7kW power rating, 36mm pinion diameter, and 16mm pinion at rest are useful checks when comparing a worn original unit or confirming an exchange part. These measurements help reduce the risk of ordering a starter that is close but not identical in fit or engagement.

If you are working from the vehicle listing rather than the removed starter, confirm the application against the Hyundai i30 references supplied and inspect the original unit where possible. Matching the brand application, rotation, tooth count, and mount style is the most reliable way to avoid installation delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS947 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Hole Diameter M10x1.25, Overall Length 192mm, Pinion Diameter 36mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 103mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS947, Brand OEX, Description OEX Starter Motor 12V 12Th CW Valeo, Flange Diameter 77mm, Number of Teeth 12, Pinion at Rest 16mm, Power Rating 1.7kW, Suits Unit Make Valeo.

OEX Starter Motor 12V 12Th CW Valeo. Part number VXS947 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS947, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017, HYUNDAI I30 2018. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number VXS947, the Valeo application reference, and the listed measurements before ordering. Vehicle compatibility should always be checked against the original starter and application details, as starter motors must match both mounting and engagement characteristics exactly.

FAQ

Is this starter motor new or remanufactured?

This OEX starter motor is listed as new. For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is VXS947. For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter motor is clockwise (CW). For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.

What vehicle information is supplied for fitment?

The supplied fitment information references Hyundai i30 applications, including 2016 through 2020 entries. Final fitment should still be confirmed against the part number and the original unit details. For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.

What warranty is listed?

A three-year warranty is listed for this OEX starter motor. For this listing, part number VXS947 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2016, HYUNDAI I30 2017. These details should still be checked against the original unit before ordering.
