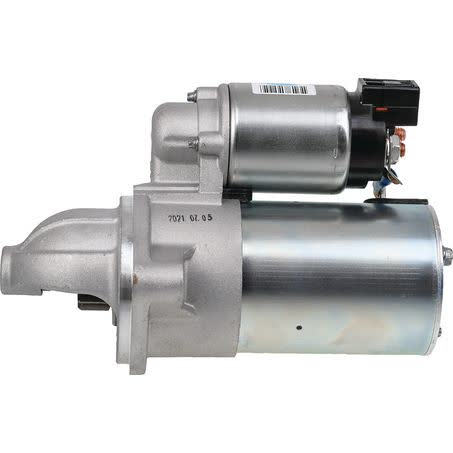

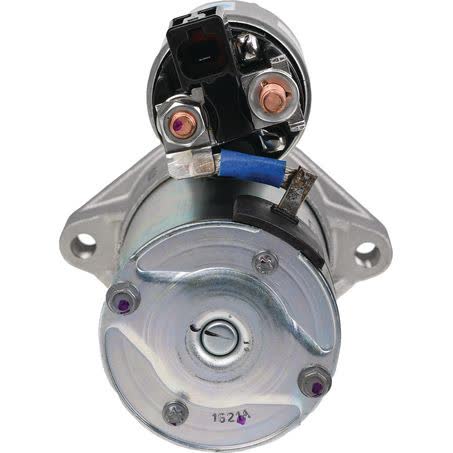

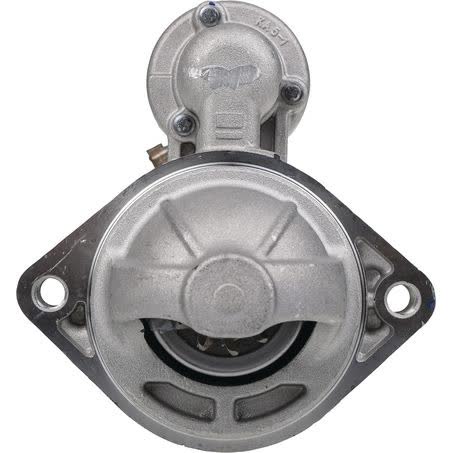

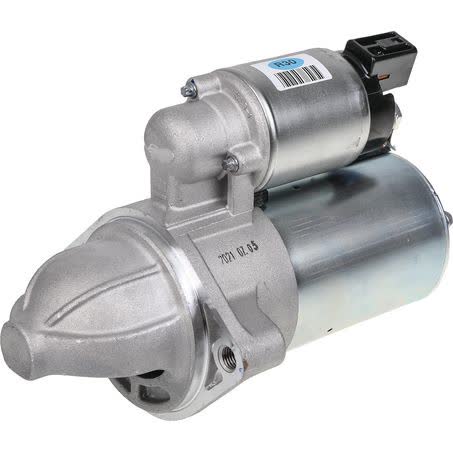

OEX Starter Motor 12V 11T CW Valeo VXS949

The OEX starter motor VXS949 is a new 12V starter motor with 11 teeth, clockwise rotation, and a 2.0kW power rating. It is listed as an OE product and is suited to Valeo units, with a 2 hole starter mount type and M10x1.25 mount hole diameter.

Key physical measurements for checking replacement match-up are an overall length of 208mm, flange diameter of 80mm, pinion diameter of 34mm, pinion at rest of 24mm, and mount centre to centre of 105mm. The unit weighs 3.24kg and is sold each.

This starter motor carries a three year warranty and is identified under part number VXS949. If you are comparing against an existing starter, the combination of 12V, 11 teeth, clockwise rotation, and Valeo application details are the main checkpoints to confirm before ordering.

Key Features

• New starter motor
• OE product
• 12V unit
• 11 tooth pinion
• Clockwise rotation
• 2.0kW power rating

Specifications

• Part number: VXS949
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2.0kW
• Starter mount type: 2 hole

Fitment

• Suitable for Valeo unit applications only, as listed.
• Hyundai Santa Fe applications are included in the provided fitment data.
• Hyundai Tucson applications are included in the provided fitment data.

Application and Buying Notes

For a starter motor replacement, the safest match is the part number and the physical specification set. VXS949 is a 12V, clockwise starter with 11 teeth, and those details need to align with the unit coming out of the vehicle. The 2 hole mount, M10x1.25 mount holes, and 105mm mount centre to centre are practical checks when comparing housings and bolt spacing.

The overall length of 208mm, flange diameter of 80mm, and pinion diameter of 34mm are useful measurements if you are confirming interchangeability with a removed starter or cross-checking against a catalogue listing. Because this unit is listed for Valeo applications, the make and application details matter as much as the electrical rating.

This is a 2.0kW starter motor, so it should be compared with the original unit’s output rather than assumed to suit from appearance alone. Starter motors can look similar while differing in rotation, tooth count, mount style, and pinion position, so confirm each of those details before fitting.

If the vehicle has been modified, or if the original starter has been changed previously, rely on the physical measurements and the part number rather than model name alone. That is especially important where multiple starter configurations exist within the same vehicle range.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS949 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Hole Diameter M10x1.25, Overall Length 208mm, Pinion Diameter 34mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 105mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS949, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo, Flange Diameter 80mm, Number of Teeth 11, Pinion at Rest 24mm, Power Rating 2.0kW, Suits Unit Make Valeo.

OEX Starter Motor 12V 11Th CW Valeo. Part number VXS949 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS949, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019, HYUNDAI SANTA FE 2020. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number VXS949, 12V electrical rating, 11 tooth clockwise rotation, Valeo application details, and the mounting and measurement figures before purchase. If any of those do not match your existing starter, do not assume it will fit.

FAQ

What is the part number for this starter motor?

The part number is VXS949. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.

What rotation does it have?

The starter motor rotation is clockwise, shown as CW. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The fitment data includes Hyundai Santa Fe and Hyundai Tucson applications. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.

What warranty is listed with this starter motor?

A three year warranty is listed. For this listing, part number VXS949 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2018, HYUNDAI SANTA FE 2019. These details should still be checked against the original unit before ordering.
