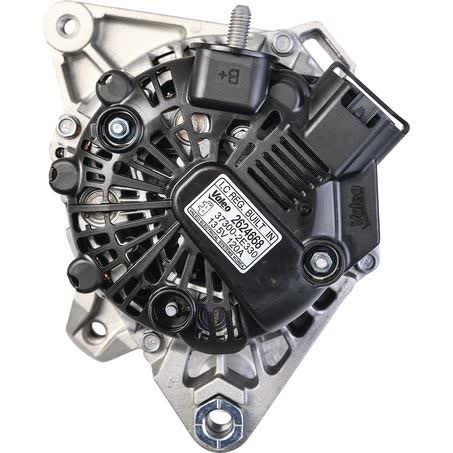

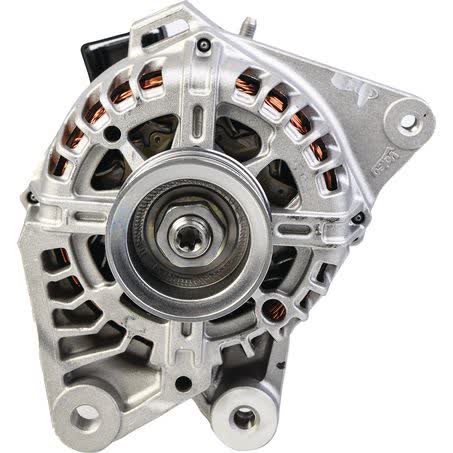

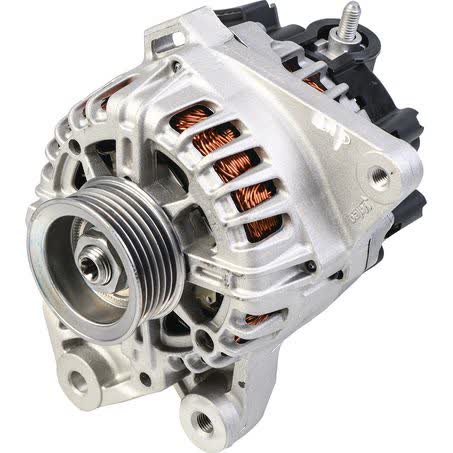

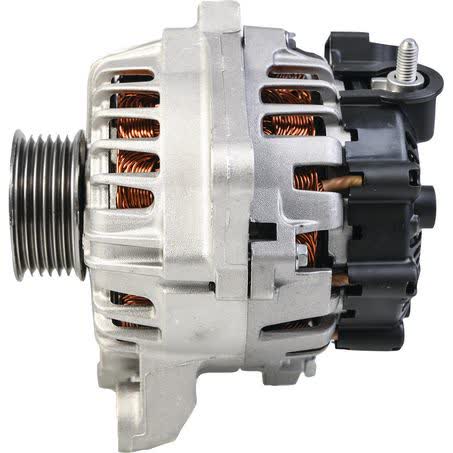

OEX Alternator 12V 120A Valeo VXA050

The OEX Alternator VXA050 is a new 12V, 120A unit suited to Valeo applications. It uses an internal regulator, a 6 groove pulley, and a twin leg alternator mount, so it is important to compare the mounting style and pulley layout with the original unit before ordering.

Key physical details include 58mm inside mounting legs, an M10x1.25/10 pivot hole diameter, an M8x1.25 adjusting hole diameter, and 173mm mount centre to centre. These measurements are the sort of checks that matter when matching a replacement alternator to the vehicle’s existing setup.

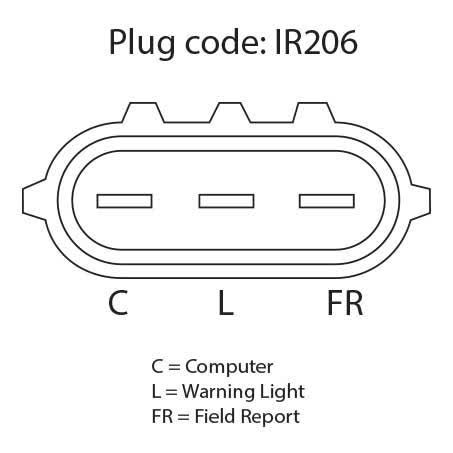

This alternator is listed under OEX part number VXA050 and pin code IR206. The unit weighs 5.32kg and is supplied as a new alternator, not a remanufactured item. It also carries a 3 year passenger / 1 year commercial warranty, which is worth noting when comparing replacement options.

Key Features

• 12V alternator with 120A power rating
• New unit supplied by OEX
• Internal regulator type
• 6 groove pulley
• Twin leg alternator mount
• Suits Valeo unit make

Specifications

• Brand: OEX
• Part No.: VXA050
• Product type: Alternator
• Voltage: 12V
• Power rating: 120A
• Unit of measure: Each
• New / Reman.: New
• Suits unit make: Valeo

Fitment guidance

• Supported fitment preview includes Kia Cerato.
• Supported fitment preview includes Kia Cerato 2018.

Application and Buying Notes

Before ordering, match the OEX VXA050 against the alternator already fitted to the vehicle. The most important checks here are the 12V system, 120A output, Valeo unit make, twin leg mount, 6 groove pulley, and the listed mounting dimensions of 58mm inside mounting legs and 173mm centre to centre.

The pivot hole diameter is M10x1.25/10 and the adjusting hole diameter is M8x1.25. Those dimensions need to line up with the brackets and adjuster hardware on the vehicle, otherwise the alternator may not mount correctly even if the electrical output is right.

The 58mm pulley outside diameter and 6 groove pulley section should also be compared with the belt system on the vehicle. Belt alignment and groove count are practical fitment checks, particularly when replacing a Valeo alternator with a unit that must sit exactly in the same position as the original.

This alternator is supplied new and carries an internal regulator, so the replacement should be assessed as a complete unit rather than only by output rating. A 120A alternator may suit a wide range of applications, but the final decision should always be made by matching the part number, mount style, pulley details, and any application notes for the vehicle.

If the original alternator carries a different part number or a different mounting arrangement, do not assume interchangeability. Even where a Kia Cerato application is shown in the fitment preview, the safest approach is to confirm the vehicle details, the original alternator make, and the listed measurements before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA050 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 58mm, Pivot Hole Diameter M10x1.25/10, Pulley Outside Diameter 58mm, Regulator Type Internal, Voltage 12, Item Type Alternator, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA050, Brand OEX, Description OEX Alternator 12V 120A Valeo, Adjusting Hole Diameter M8x1.25, Pin Code IR206, Power Rating (Amp) 120, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 120A Valeo. Part number VXA050 should be checked first. Listed voltage is 12. Listed output rating is 120. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA050, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by checking the OEX part number VXA050, pin code IR206, alternator make Valeo, and the listed mount and pulley measurements against the vehicle’s original unit before ordering.

FAQ

What is the part number for this alternator?

The OEX part number is VXA050. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 120A power rating. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This alternator is listed as new. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.

What pulley and mounting details should I check?

Check the 6 groove pulley, 58mm pulley outside diameter, twin leg mount, 58mm inside mounting legs, 173mm mount centre to centre, M10x1.25/10 pivot hole diameter, and M8x1.25 adjusting hole diameter. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty listed is 3 year passenger and 1 year commercial. For this listing, part number VXA050 is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include KIA CERATO, KIA CERATO 2018. These details should still be checked against the original unit before ordering.
