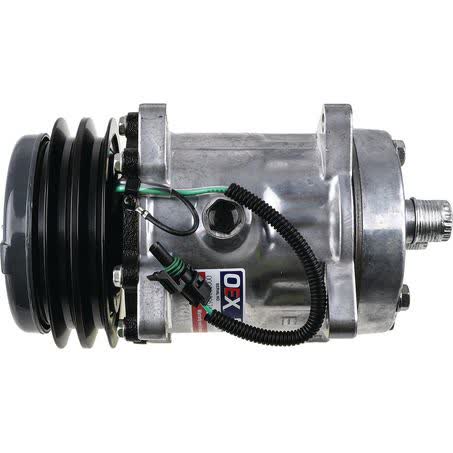

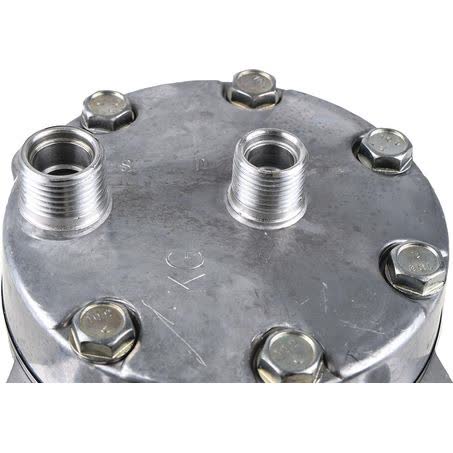

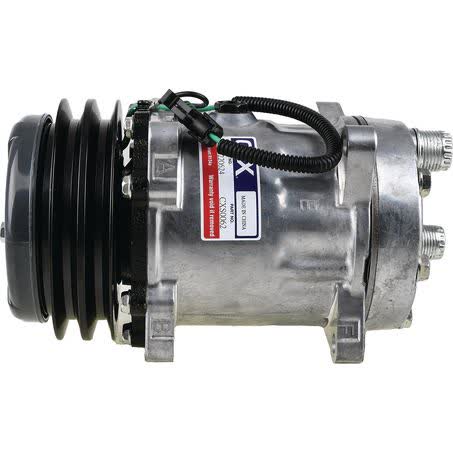

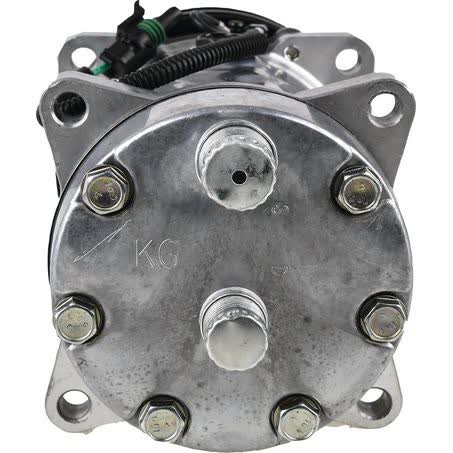

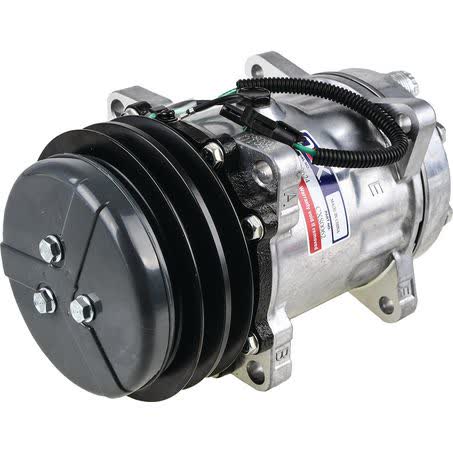

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style CXS0062

The OEX Air Conditioning Compressor in this listing is a 24V ear mount unit in SD7H15 style, with part number CXS0062 and OEM number 6043S. It is described as suitable for Sanden applications and uses a horizontal O-ring fitting type.

Key physical details include a 132mm clutch diameter, AA pulley section, KG head code, and a 39.55mm gauge line. The unit also includes a plastic dust cover and is noted with a 135ml oil capacity.

This compressor is supplied r conditioning compressor each, with two years warranty. The note supplied with the unit specifies KG head, O rings ORX008 and ORX010, and PAG46 oil type, which are important checkpoints when matching the compressor to an existing system.

Key Features

• 24V air conditioning compressor
• Ear mount configuration
• SD7H15 style / Series
• Suitable for Sanden applications
• Horizontal O-ring fitting type
• Plastic dust cover included

Specifications

• Part No.: CXS0062
• OEM Number: 6043S
• Voltage: 24V
• Compressor Mounting: Ear Mount
• Series: SD7H15
• Clutch Diameter: 132mm
• Pulley Section: AA
• Head Code: KG

Fitment guidance

• Fitment support is listed across multiple heavy-duty applications, including Atlas Copco MT6020, Bucyrus SKSS, Bucyrus SKSW, Caterpillar MD6420, Dynapac CP224/W, and Terex O&K MT4400AC.
• Application listings shown include model and year references such as Atlas Copco MT6020 1980 to 1990, Bucyrus SKSS 2011, Bucyrus SKSW 2011, Caterpillar MD6420 2011, Dynapac CP224/W 2010 to 2013, and Terex O&K MT4400AC 2005.
• Because compressor fitment depends on mounting style, pulley, head code, and system details, compare the vehicle or machine application carefully against the CXS0062 part number and the 24V ear mount SD7H15 style specification.

Application and Buying Notes

Before ordering, confirm the existing compressor is a 24V ear mount unit with SD7H15 style construction and a horizontal O-ring connection. The listed part number is CXS0062 and the OEM number is 6043S, both of which are the most reliable matching points when checking an existing unit.

The physical details matter. This compressor is listed with a 132mm clutch diameter, AA pulley section, KG head code, and a 39.55mm gauge line. If the replacement unit differs in any of those details, the compressor may not suit the original application even if the machine model appears similar.

Oil and sealing details should also be checked closely. The supplied note specifies PAG46 oil type, oil capacity of 135ml, and O rings ORX008 and ORX010. Matching those details helps reduce the chance of incorrect installation parts being used during the fitment process.

The unit is described as suitable for Sanden applications, but it should still be matched to the existing system by part number, head code, and mounting arrangement. A compressor can look similar from the outside while still differing in pulley section, clutch size, or connection style.

If you are replacing a compressor in a machine listed in the fitment information, use the application details as a guide only and confirm the exact compressor used on the machine. The safest approach is to compare the old unit and the system details against CXS0062, 6043S, and the 24V ear mount SD7H15 style specification before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0062 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note KG Head. O Rings - ORX008 & ORX010, Oil type PAG46., Oil Capacity 135ml, OEM Number 6043S.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS0062, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Horizontal O Ring, Series SD7H15, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N Yes.

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style. Part number CXS0062 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0062, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO MT6020, ATLAS COPCO MT6020 1980, ATLAS COPCO MT6020 1981, ATLAS COPCO MT6020 1982, BUCYRUS SKSS, BUCYRUS SKSS 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching the part number CXS0062, OEM number 6043S, 24V ear mount configuration, SD7H15 style, head code KG, and the listed pulley, clutch, and connection details against the vehicle or machine before ordering.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor, 24V, in ear mount SD7H15 style.

What part numbers are listed?

The listed part number is CXS0062 and the OEM number is 6043S.

What voltage does this compressor use?

The compressor is listed as 24V.

What fitting type does it use?

The fitting type is listed as Horizontal O Ring.

What oil information is provided?

The note specifies PAG46 oil type and an oil capacity of 135ml.

What warranty is supplied?

The compressor is supplied with a two years warranty.
