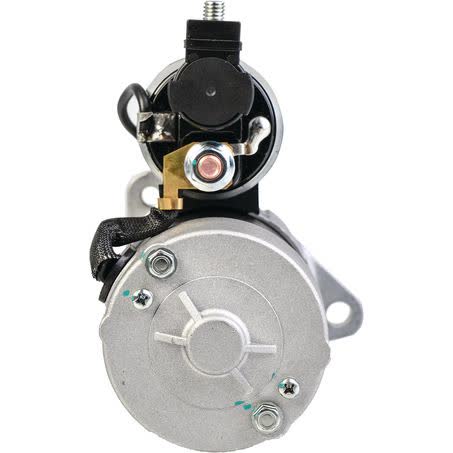

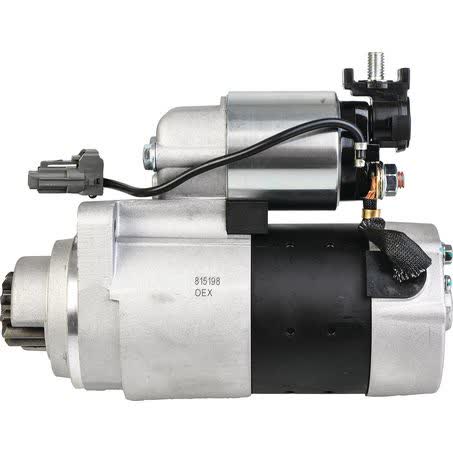

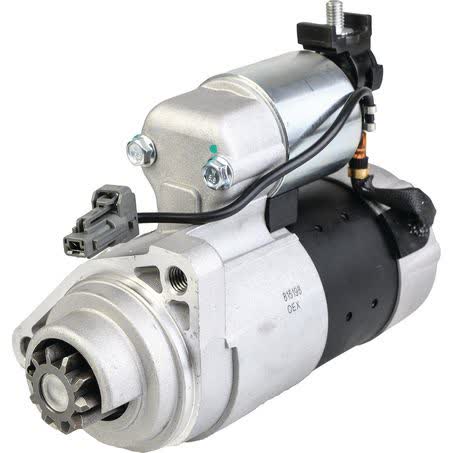

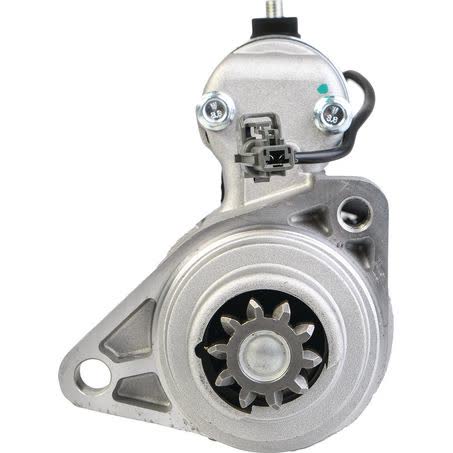

OEX Starter Motor 12V 10 Tooth CW Hitachi Style HXS102

The OEX Starter Motor HXS102 is a new 12V starter motor with 10 teeth, clockwise rotation, and a Hitachi style application. It is listed as a 2 hole starter mount with an M10x1.5 / 11 mount hole diameter, 95mm mount centre to centre, and a 68mm flange diameter, so the mounting pattern and physical dimensions are key checks before purchase.

This unit is rated at 1.7kW and has a 32.5mm pinion diameter with 36mm pinion at rest. The overall length is 195mm and the unit weight is 3.5kg, which gives a practical reference point when comparing against the original starter motor already fitted to the vehicle.

OEX lists this starter motor as suit unit make Hitachi and backs it with a 3yr passenger / 1yr commercial warranty. For buyers comparing replacements, the part number HXS102 and the 10 tooth, 12V, CW specification should be matched carefully with the existing unit and vehicle application.

Key Features

• New starter motor
• 12V electrical system
• 10 tooth pinion
• Clockwise rotation
• Hitachi style application
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: HXS102
• Product type: Starter Motor
• Item type: Starter Motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10

Fitment guidance

• Listed fitment references include Nissan Maxima applications, with sample model years shown from 2003 through 2008.
• Fitment details are application-specific and should be checked against the vehicle’s original starter motor and matching part number before ordering.

Application and Buying Notes

When matching a starter motor, the most important checks are the part number HXS102, the 12V rating, the 10 tooth pinion, and clockwise rotation. The wrong combination of tooth count, rotation, or mounting pattern can prevent the starter from engaging correctly, even if the unit looks similar at a glance.

The physical dimensions are also important. This starter has a 2 hole mount, M10x1.5 / 11 mount holes, 95mm mount centre to centre, a 68mm flange diameter, and 195mm overall length. Those measurements help compare it with the removed unit and reduce the risk of ordering a starter that does not physically align with the bellhousing or mounting points.

If you are replacing a Hitachi style starter, check the original unit for the same style, tooth count, and pinion measurements. This OEX starter is listed with a 32.5mm pinion diameter, 36mm pinion at rest, and 1.7kW power rating, so these figures are useful when comparing to the old part or checking catalogue application notes.

The warranty is 3 years for passenger use and 1 year for commercial use, which is useful to note when the vehicle is used in different duty cycles. For commercial applications, confirm the intended use before purchase so the warranty expectation matches how the vehicle is operated.

For a reliable match, use the vehicle application, the existing starter’s label or casting marks, and the HXS102 part number together. Starter motor fitment can vary by engine and build date, so the safest comparison is always against the removed unit and the exact application details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS102 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5 / 11, Overall Length 195mm, Pinion Diameter 32.5mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 95mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS102, Brand OEX, Description OEX Starter Motor 12V 10Th CW Hitachi Style, Flange Diameter 68mm, Number of Teeth 10, Pinion at Rest 36mm, Power Rating 1.7kW, Suits Unit Make Hitachi.

OEX Starter Motor 12V 10Th CW Hitachi Style. Part number HXS102 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS102, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment with part number HXS102, the 12V clockwise 10 tooth specification, and the vehicle’s original starter motor dimensions and application details before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise (CW). For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.

What vehicles are referenced in the fitment information?

The fitment references include Nissan Maxima applications, with sample years shown from 2003 through 2008. For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS102 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004. These details should still be checked against the original unit before ordering.
