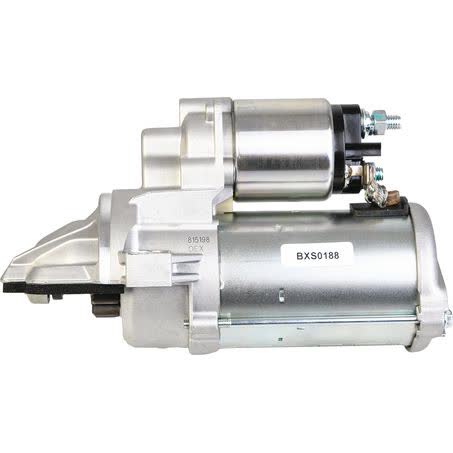

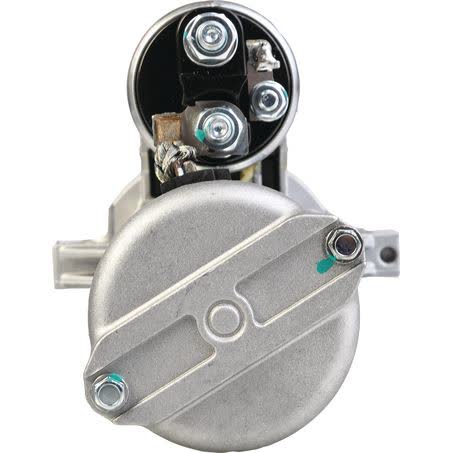

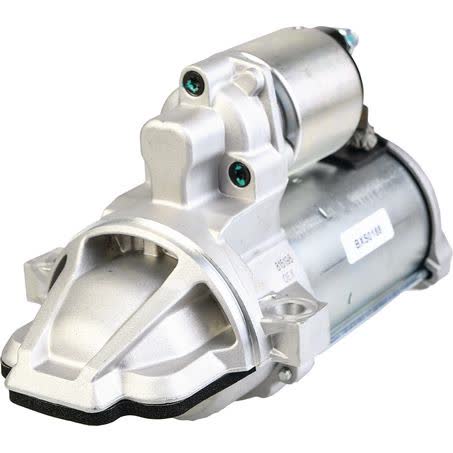

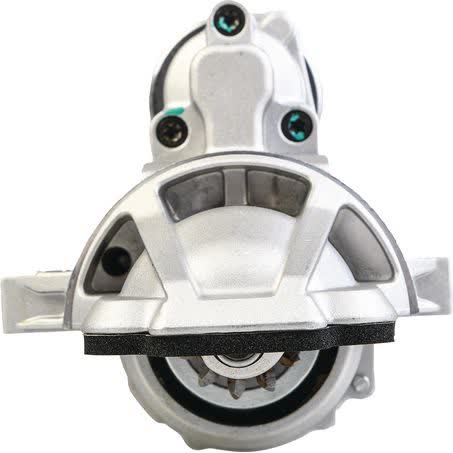

OEX Starter Motor 12V 11 Tooth CW Bosch Style BXS0188

The OEX Starter Motor BXS0188 is a new 12V starter motor with 11 teeth, clockwise rotation, and a Bosch suit unit make. It is listed as a 2 hole starter mount type with a 96mm mount centre-to-centre measurement, which are important checks when matching a replacement starter to the vehicle.

Key dimensions for this unit include an overall length of 220mm, a flange diameter of 88mm, a 35mm pinion diameter, and a pinion at rest measurement of 11mm. The unit weighs 2.96kg and has a power rating of 1.4kW, so it is important to compare these details with the original part before purchase.

OEX describes the product as being sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The warranty is listed as 3 years for passenger use and 1 year for commercial use, which gives a clear reference point for how the unit is covered when fitted in the correct application.

Key Features

• New starter motor
• 12V unit
• 11 tooth pinion
• Clockwise rotation
• Bosch style / suits Bosch units
• 2 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Part No.: BXS0188
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 1.4kW

Fitment guidance

• Ford Mondeo applications are listed in the supplied fitment information.
• Ford Mondeo model years shown include 2014, 2015, 2016, 2017, 2018, and 2019.
• Fitment should still be confirmed against the vehicle’s existing starter motor and matching identifiers before ordering.

Application and Buying Notes

Starter motors need to be matched on more than just voltage, and this OEX unit is a 12V, 11 tooth, clockwise rotation starter with part number BXS0188. The 2 hole mount pattern, 96mm mount centre-to-centre measurement, and 88mm flange diameter are practical checks that help confirm whether it lines up with the vehicle application.

The listed 1.4kW power rating, 220mm overall length, 35mm pinion diameter, and 11mm pinion at rest measurement should be compared carefully with the removed starter. Even when the vehicle is shown in fitment data, starter body size and mounting layout can vary, so these dimensions matter.

The product is new and suits Bosch units, which is useful when replacing a Bosch-style starter motor rather than rebuilding the original. If the original unit is marked differently or has a different tooth count, rotation, or mount layout, that is a sign to pause and confirm before fitting.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. That warranty does not replace the need to match the part correctly, so the safest approach is to check the part number, rotation, teeth count, mounting style, and dimensions against the existing unit or vehicle listing.

For workshop or parts-counter use, the weight of 2.96kg and the mounting dimensions can help when cross-checking a replacement against the removed component. Where the original starter is not available, using the vehicle details together with the BXS0188 part number gives a more reliable comparison than model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0188 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 10, Overall Length 220mm, Pinion Diameter 35mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 96mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0188, Brand OEX, Description OEX Starter Motor 12V 11Th CW Bosch Style, Flange Diameter 88mm, Number of Teeth 11, Pinion at Rest 11mm, Power Rating 1.4kW, Suits Unit Make Bosch.

OEX Starter Motor 12V 11Th CW Bosch Style. Part number BXS0188 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0188, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD MONDEO, FORD MONDEO 2014, FORD MONDEO 2015, FORD MONDEO 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment with part number BXS0188, the 12V clockwise 11 tooth specification, and the 2 hole mounting details before ordering. Vehicle applications shown in the fitment section should be checked against the existing starter motor and mounting measurements to avoid a mismatch.

FAQ

What is the part number for this starter motor?

The part number is BXS0188.

Is this starter motor new or remanufactured?

It is listed as new.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 11 teeth.

What mounting details are listed?

It has a 2 hole starter mount type, 10mm mount hole diameter, and 96mm mount centre-to-centre measurement.

Which vehicle fitment is shown?

Ford Mondeo applications are shown, including model years 2014 through 2019 in the supplied fitment information. Fitment still needs to be confirmed against the existing starter and vehicle details before purchase.
