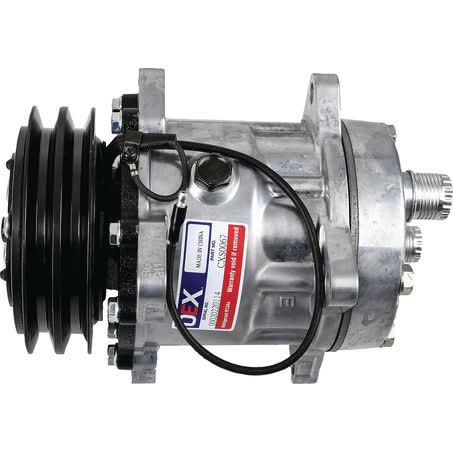

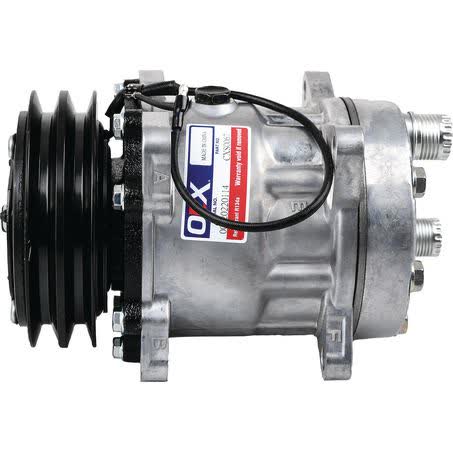

OEX Air Conditioning Compressor 12V Ear Mount SD7H13 Style CXS0067

The OEX air conditioning compressor listed here is a 12V ear mount unit with a 125mm clutch diameter, horizontal O ring fitting, and part number CXS0067. It is described as SD7H15 style with SD7H13 series identification, and the supplied application data points to Deutz-Fahr AGROFARM and AGROTRON variants.

This compressor is specified as a Sanden suit unit make, with AA pulley section, KG head code, and 44.25mm gauge line. Oil capacity is listed at 135ml, and the note specifies PAG100 oil. O rings to suit ORX008 and ORX010 are also noted, which is important when comparing the compressor to the vehicle’s existing air conditioning plumbing.

For buyers replacing an existing compressor, the practical checkpoints are the 12V electrical setup, ear mount arrangement, 125mm clutch size, and the horizontal O ring connection type. Those details need to align with the vehicle and the old unit before purchase, especially where the compressor is being matched to a specific Deutz-Fahr application.

Key Features

• OEX air conditioning compressor
• 12V unit
• Ear mount compressor mounting
• 125mm clutch diameter
• Horizontal O ring fitting
• AA pulley section

Specifications

• Voltage: 12V
• Current draw listed: 12A
• Oil capacity: 135ml
• Oil type note: PAG100
• Clutch diameter: 125mm
• Compressor mounting: Ear Mount
• Fitting type: Horizontal O Ring
• Pulley section: AA

Fitment guidance

• Deutz-Fahr AGROFARM
• Deutz-Fahr AGROFARM 2009
• Deutz-Fahr AGROTRON
• Deutz-Fahr AGROTRON 1997
• Deutz-Fahr AGROTRON 1998
• Deutz-Fahr AGROTRON 1999
• Deutz-Fahr AGROTRON 2000
• Deutz-Fahr AGROTRON 2001

Application and Buying Notes

Before ordering, match the part number CXS0067 and compare the mounting style, clutch diameter, and hose connection type against the unit being removed from the machine. This compressor is an ear mount design with a 125mm clutch and horizontal O ring fitting, so those physical details need to line up with the existing installation.

The compressor is listed as 12V with a 12A feature callout, so the vehicle’s electrical system should be checked as part of the replacement process. The supplied notes also call for PAG100 oil and list 135ml oil capacity, which matters when the compressor is being installed or swapped over into an existing air conditioning system.

Compatibility can also depend on the exact application and the surrounding air conditioning hardware. The note about O rings to suit ORX008 and ORX010 means sealing components should be confirmed before fitting, and the AA pulley section plus KG head code should be checked against the original compressor where possible.

Where the machine is one of the listed Deutz-Fahr applications, the fitment should still be verified against the vehicle details, production year, and the compressor already fitted. On agricultural and industrial equipment, small differences in brackets, lines, or pulley setup can make the correct part choice depend on the exact configuration rather than the model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0067 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type INDUSTRIAL MINING AGRICULTURAL, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil type PAG100., Oil Capacity 135ml, Head Code KG, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0067, Brand OEX, Description OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style, Clutch Diameter 125mm, Fitting Type Horizontal O Ring, Series SD7H13, Voltage 12, Gauge Line 44.25mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Ear Mount SD7H15 Style. Part number CXS0067 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0067, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a industrial mining agricultural in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by checking part number CXS0067, the 12V ear mount configuration, 125mm clutch diameter, horizontal O ring fitting, and the listed Deutz-Fahr application details before purchase.

FAQ

What is the part number for this compressor?

The part number listed is CXS0067. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

It is a 12V compressor. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is listed as an ear mount compressor. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.

What is the clutch diameter?

The clutch diameter is listed as 125mm. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.

What oil should be used?

The note specifies PAG100 oil, and the listed oil capacity is 135ml. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.

Which applications are listed for fitment?

The supplied fitment data lists Deutz-Fahr AGROFARM and AGROTRON applications, including model-year entries such as AGROFARM 2009 and AGROTRON 1997 through 2007. For this listing, part number CXS0067 is the main reference point. Listed voltage is 12. Published fitment references include DEUTZ-FAHR AGROFARM, DEUTZ-FAHR AGROFARM 2009, DEUTZ-FAHR AGROTRON. These details should still be checked against the original unit before ordering.
