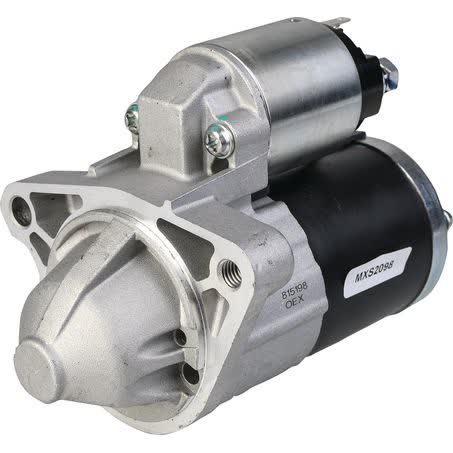

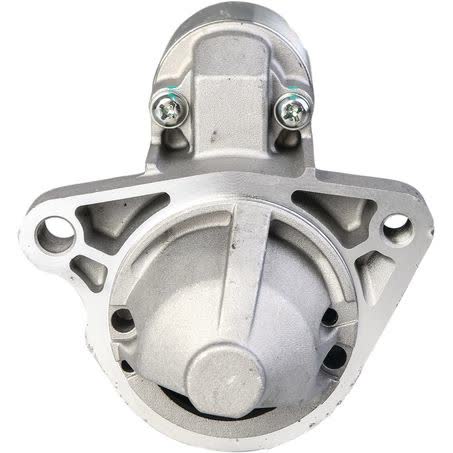

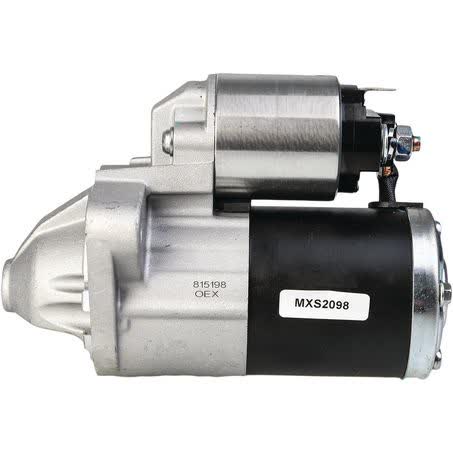

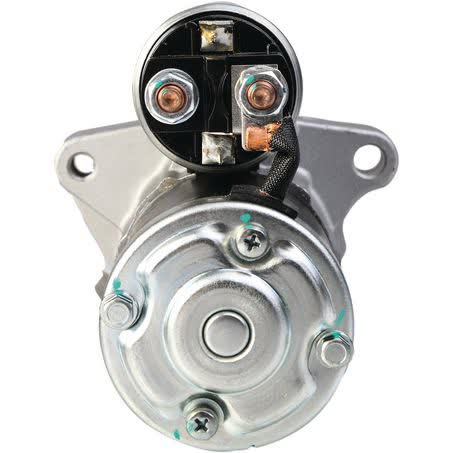

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS2098

The OEX starter motor listed here is a 12V unit with 11 teeth, clockwise rotation, and a 1.4kW power rating. It is identified as Mitsubishi style and suits Mitsubishi applications, with part number MXS2098 for confirmation before ordering.

Key physical details include a 2-hole starter mount, 74mm flange diameter, 100mm mount centre-to-centre, and M10x1.5/10 mount hole diameter. The starter motor is new, weighs 2.88kg, and has an overall length of 190mm.

The pinion measures 34mm in diameter, sits 7.5mm at rest, and the unit is supplied as an each item. For buyers comparing replacements, the voltage, tooth count, rotation, and mounting dimensions are the most important points to check against the original starter.

Key Features

• 12V starter motor
• 11-tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit, not remanufactured
• 2-hole starter mount

Specifications

• Brand: OEX
• Type: Starter motor
• Part No.: MXS2098
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 11
• New / remanufactured: New

Fitment details supplied

• Suits unit make: Mitsubishi
• Fitment data provided references Mazda and Mazda 6 applications, including Mazda 6 and Mazda 6 2018
• No further vehicle-specific fitment should be assumed without checking the part number and the original starter dimensions

Application and Buying Notes

When replacing a starter motor, the safest comparison points are the part number MXS2098, the 12V electrical system, 11-tooth pinion, clockwise rotation, and the 2-hole mount pattern. The 74mm flange diameter and 100mm mount centre-to-centre measurement are especially useful when matching against the removed unit.

The 1.4kW rating, 190mm overall length, and 34mm pinion diameter help confirm the unit is physically and electrically aligned with the application. If the existing starter differs in rotation, tooth count, flange size, or mount-hole spacing, it should be treated as a different application until proven otherwise.

This starter is listed as Mitsubishi style and suits Mitsubishi as a unit make, but the supplied fitment data also references Mazda and Mazda 6 applications. That makes it important to verify the exact vehicle, engine combination, and the original starter details rather than relying on make name alone.

The warranty listed is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checks, so confirm the part number, voltage, mounting pattern, and pinion details before purchase to avoid delays and incorrect supply.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2098 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5/10, Overall Length 190mm, Pinion Diameter 34mm, Rotation CW, Voltage 12, New / Reman. New, Weight 2.88kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXS2098, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 74mm, Number of Teeth 11, Pinion at Rest 7.5mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Mount Cnt to Cnt 100mm.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2098 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2098, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MAZDA 6, MAZDA 6 2018. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number MXS2098, the 12V specification, 11-tooth clockwise configuration, and the 2-hole mounting dimensions before ordering.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, 12V, with 11 teeth and clockwise rotation. The listed part number is MXS2098. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.

What vehicle make is it listed for?

The supplied product facts state that it suits Mitsubishi and describe it as Mitsubishi style. Additional fitment data supplied also references Mazda and Mazda 6 applications, so the exact application should be checked carefully. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.

What mounting details are provided?

The starter has a 2-hole mount, 74mm flange diameter, 100mm mount centre-to-centre, and M10x1.5/10 mount hole diameter. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.

What are the key size and configuration details?

The key details are 190mm overall length, 34mm pinion diameter, 7.5mm pinion at rest, 11 teeth, 12V, and clockwise rotation. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2098 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 6, MAZDA 6 2018. These details should still be checked against the original unit before ordering.
